Akribis Systems

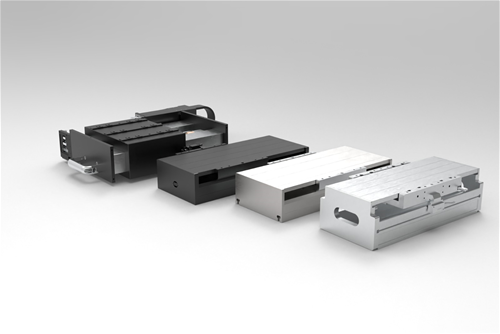

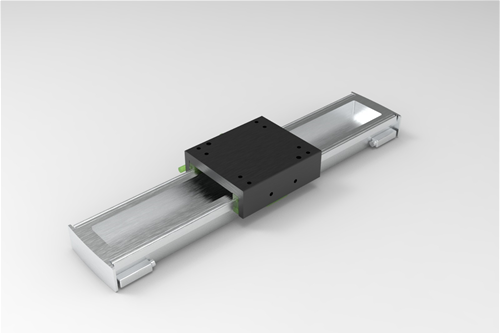

Akribis DGC series uses linear motor direct drive system.

Compact module with dual linear guides, linear motor, encoder feedback, and aluminum housing.

Four standard sizes of products are available: DGC90，DGC130，DGC175 and DGC210.

The linear motors used in the DGC are the AQM and AKM series with and without iron cores, the AQM series are economical linear motors with a better price/performance ratio and the AKM is a high thrust series with a higher power density and a more compact structure for the same requirements.

The DGC series is more suitable for point-to-point rapid positioning, achieving micron-level repeatable positioning accuracy.

- Economical dual guide linear motor stage

- Built-in flat type linear motors with iron core

- Stroke from 100mm to 1400mm, customizable Optional resolution of 0.05μm, 0.5μm or 1μm

- Encoder grating, magnetic grating optional

- Aluminium profile base, fewer parts, economical configuration

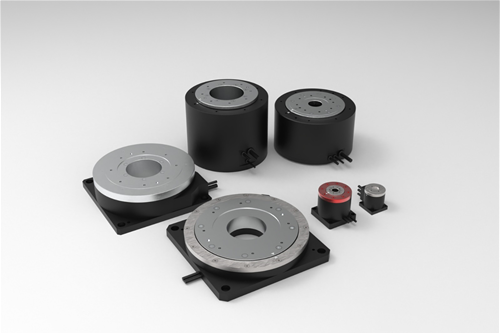

AKRIBIS ironcore and ironless rotary stages are based on direct drive brushless motor technology.

These compact units exhibit high torque and low or zero cogging torque.

These iron core motor and ironless motor rotary stages both feature thin, compact designs — including a pancake unit — to fit constrained spaces, and most come fully integrated with an encoder, precision bearing and housing.

Select features also include high slot fill factors, low and high-speed windings, large center holes and precise homing through index pulse.

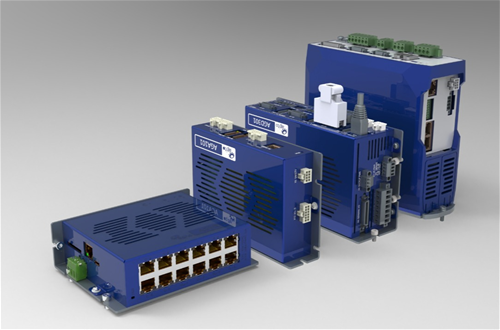

The state-of-the-art and innovative control technology from Agito provides a comprehensive list of features ,that allow to meet the most demanding performance applications in the markets.

The control solution is ideal for controlling direct drive and servo motors, providing highly coordinated multi-axis motion with excellent position/velocity tracking and settling performance.

The controllers support many advanced features like active yaw gantry control, force control, CNC modes, user programs and 2D/3D error compensation as standard features, having user friendly configuration tools for easy implementation.

The high-performance motion controllers are designed to operate standalone without external host controller.

They can also be working under an external HMI, possibly with a PC or PLC, through standard communication network, like Ethernet, CAN, RS232, RS485 or USB (all supported simultaneously).

The centralized control unit products come with integrated amplifiers, resulted in a very cost-effective solution for standalone low axis-count application like XYZ or XY-Theta stage for semi-automated microscopes or inspection systems.
