Heidelberg Instruments Mikrotechnik GmbH

Mittelgewannweg 27
Heidelberg,  69123

Germany
https://heidelberg-instruments.com/
  • Booth: B1235


Experience the power of direct writing

With over 40 years of experience and 1,500+ systems installed worldwide, Heidelberg Instruments is a global leader in high-precision laser lithography systems, maskless aligners, and nanofabrication tools. Our portfolio spans from compact tabletop solutions for prototyping, R&D, and small series production to advanced photomask manufacturing equipment for high-volume industrial use. This broad offering enables support for a wide spectrum of micro- and nanoscale surface structuring techniques, including 2D patterning and 2.5D features via grayscale lithography. Trusted by leading universities, research institutes, and industrial facilities, our systems are used in micro-optics, photonics, electronics, sensors, semiconductors, advanced packaging, next-gen displays, quantum devices, MEMS, microfluidics, 2D materials, photomask production, and more.


 Press Releases

  • Heidelberg, Germany – Heidelberg Instruments has made significant performance upgrades to its renowned DWL 66+ direct-write lithography system, solidifying its position as the ultimate research tool for microfabrication. The system now delivers a market-leading minimum feature size of 200 nm and advanced grayscale capabilities with 65,536 levels, empowering researchers to push the boundaries of innovation in different dimensions.

    The new High-Resolution Mode, Write Mode XR, achieves an unsurpassed combination of resolution, quality, and speed. Its 200 nm minimum feature capability allows for the fabrication of highly complex micro- and nanostructures, enabling applications in quantum devices, optics, and photonics that previously required more time-consuming e-beam lithography. This advancement accelerates development cycles and frees up cost-intensive e-beam systems for their most demanding tasks.

    Complementing the high resolution is the system's professional-grade grayscale lithography. With an unprecedented 65,536 intensity levels, the DWL 66+ can create intricate 2.5D microstructures, such as micro-lenses and other micro-optical devices, with outstanding surface smoothness in photoresists up to 150 µm thick.

    With 30 years of continuous development and over 400 units installed, the DWL 66+ is a proven, robust, and extremely flexible platform for R&D and rapid prototyping. These latest enhancements reinforce its value, offering users a powerful combination of extreme resolution and operational flexibility.

    For more information on the DWL 66+ lithography system, please visit: https://heidelberg-instruments.com/product/dwl-66-laser-lithography-system/

    Contact:

    Sonja Pfeuffer, Head of Marketing & Communications

    [email protected]

    Further information
    https://heidelberg-instruments.com/



    About Heidelberg Instruments Mikrotechnik GmbH:

    With over 40 years of experience and well over 1,500 systems installed in more than 50 countries, Heidelberg Instruments is a global leader in design, development and production of high-precision laser lithography systems, maskless aligners, and nanofabrication systems offering solutions from tabletop tools to high-end photomask manufacturing equipment. The versatile systems enable a broad spectrum of surface structuring on the micro- and nanoscale, including 2D-patterning and the creation of 2.5D features by Grayscale lithography. Due to their flexibility, the systems are valuable assets to leading universities and R&D institutes around the world, as well as to industrial production facilities. Typical fields of application include micro-optics and photonics, electronics and sensors, semiconductors and advanced packaging, next-generation display manufacturing, quantum devices, MEMS, microfluidics, 2D materials, photomask production, and many others.


 Products

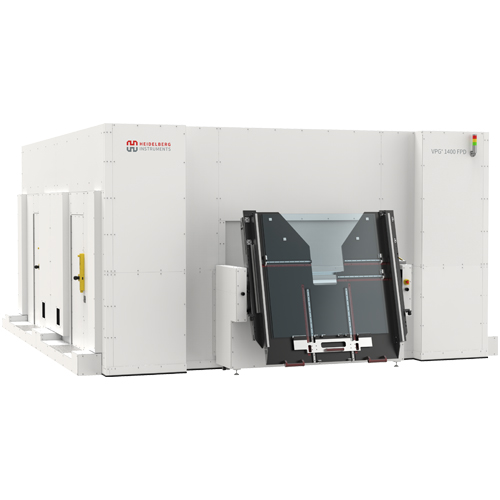

  • VPG+ 1400 FPD/VPG + 1850 VOLUME PATTERN GENERATORS
    Designed for photomask production on large substrates in display applications, and tailored for the high-throughput patterning of large-area photomasks up to G8.6 size and a maximum exposure area of 1400 x 1800 mm²....

  • VPG+ 1400 FPD / VPG+ 1850 Volume Pattern Generator | Heidelberg Instruments

    Engineered for photomask production on substrates up to G8.6 (1400 × 1800 mm²), the VPG+ 1400/1850 FPD delivers exceptional throughput, 1.2 nm alignment precision, and Mura optimization. Ideal for TFT arrays, color filters, and ITO electrodes in high-volume FPD manufacturing. Reliable 24/7 operation ensures consistent quality and delivery.

    Key Benefits

    • Optimized for FPD Manufacturing: Tailored for TFT arrays, color filters, and ITO electrodes.
    • Exceptional Throughput: Accelerates photomask production for high-volume display lines.
    • Reliable 24/7 Operation: Ensures consistent performance and predictable delivery.
    • 1.2 nm Alignment Precision: Uses differential interferometry for ultra-accurate patterning.
    • Mura Optimization: Achieves excellent CD uniformity and resolution across large areas.
    • Closed-Loop Environmental Chamber: Maintains thermal and particle stability for high-quality results.
    • Advanced Metrology: Enables precise second-layer alignment and greytone mask production.

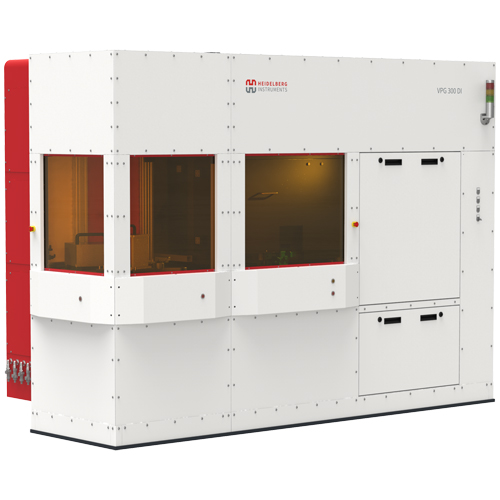

  • VPG 300 DI | MASKLESS STEPPER
    Stepper-level performance with unmatched speed and flexibility for R&D, prototyping, and microfabrication: The VPG 300 DI is a high-performance direct-write lithography system for patterning high-resolution microstructures on wafers up to 300 mm....

  • VPG 300 DI Maskless Stepper | Heidelberg Instruments

    VPG 300 DI – The Power of a Stepper, The Freedom of Direct Write

    The VPG 300 DI bridges the gap between R&D and productionoffering sub-micron resolution and tight overlay accuracy comparable to traditional i-line stepperswithout the cost and delays of mask procurement. Ideal for rapid prototypingprocess development, and applications requiring frequent design iterationsFrom CAD to exposure in minutesthe system enables fast design transfer and daily iteration cyclesdramatically accelerating development timelines.

    Key Benefits

    • High-Speed Exposure: Custom SLM and optimized data path enable 100×100 mm² writing in just 9 minutes
    • Stitching-Free Large Areas: Create large dies or devices without stitching errors
    • Instant Design Changes: Modify CAD files and expose immediatelyno mask handling required

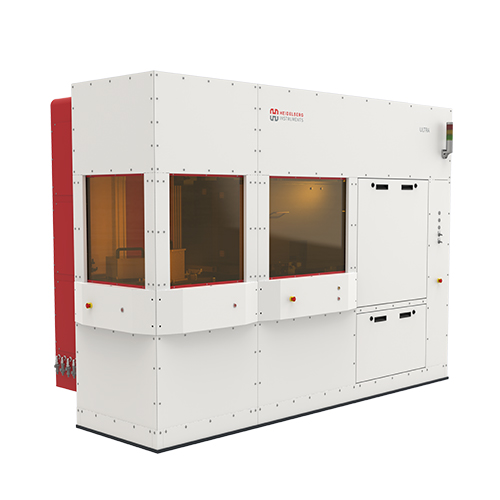

  • ULTRA | SEMICONDUCTOR LASER MASK WRITER
    The ULTRA delivers high-throughput, high-precision photomask writing for mature semiconductor nodes. A cost-effective solution for producing photomasks for microcontrollers, PMICs, LEDs, IoT, photonics, and MEMS—maximizing yield, speed, and reliability....

  • ULTRA Semiconductor Mask Writer | Heidelberg Instruments

    The ULTRA integrates state-of-the-art technology to address the primary concerns of modern mask shopsspeedaccuracy, and return on investment.

    The system’s advanced exposure engine and optimized write modes dramatically reduce mask writing timesenabling you to produce a standard 6” photomask in less than 45 minutes.

    • Fast SLM-based Exposure Engine: Delivers write speeds up to 580 mm²/minute without compromising quality.
    • Full Automatic Mask Handling: Reduces operator overhead with a simple, easy-to-use mask loading interface and ensures consistentrepeatable loading and unloading for continuous operation.
    • Optimized Write Modes: Provides the flexibility to prioritize speed or resolution to match your specific job requirements.
  • MLA 300 | MASKLESS ALIGNER FOR VOLUME PRODUCTION
    The MLA 300 is designed for high-volume production, offering unmatched flexibility and precision in industrial lithography. It supports wafers up to 300×300 mm and adapts to surface variations, eliminating costly, time-consuming mask production....

  • MLA 300 Industrial Maskless Aligner ǀ Heidelberg Instruments

    The MLA 300 Maskless Aligner enables innovative solutions for complex lithography challengesincluding advanced packagingsensor calibration, and MEMS fabricationWith high throughput, 1.5 μm resolution, a simplified workflow, and seamless MES integration, it is the ideal choice for a wide range of industrial applications.

    Application areas include semiconductors and advanced packaging, sensor and sensor ICs, MEMS and microfluidics, discrete components, integrated circuits and ASICs, probe cards, power electronics, and OLED displays.

    Key Features

    • High-Throughput Production: Optimized for industrial-scale production with a minimum feature size of 1.5 µm. For higher volume requirements, we also offer a high-throughput write mode with 3 µm minimum feature size.
    • Advanced Precision: This system offers the highest optical quality, ensuring precise and accurate patterning across a wide range of challenging substrates.
    • Full Automation: The MLA 300 features full automation, including customizable loading options, advanced software designed for production environments, and integration with MES systems.
    • Patented Substrate Tracking Technology: Real-time autofocus compensates for substrate warp or corrugations, guaranteeing flawless patterning and uniformity on all surfaces.

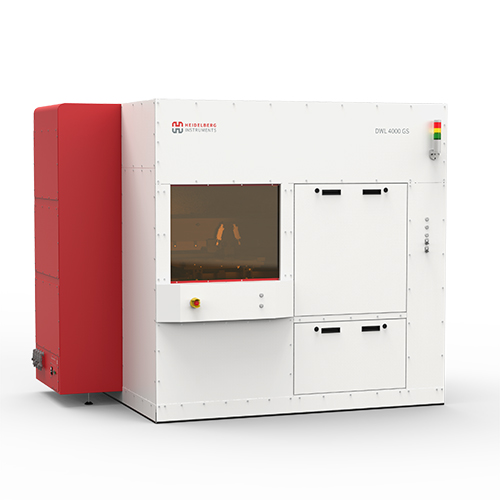

  • DWL 4000 GS | THE INDUSTRIAL-LEVEL GRAYSCALE TOOL
    The expert Grayscale (GS) Lithography tool DWL 4000 GS provides advanced Grayscale technology that satisfies the highest industrial standards and produces 2.5D or freeform topographies such as micro-lenses or sloping features like blazed gratings....

  • DWL 4000 GS Grayscale Tool

    The DWL 4000 GS laser lithography systems is a fast and flexible high-resolution pattern generator, optimized for industrial-level grayscale lithography and designed for high-throughput patterning of masks and wafers for integrated circuits, MEMS, micro-optic and microfluidic devices, sensors, holograms and security features on banknotes and ID cards.

    The Professional Grayscale Lithography Mode enables patterning of complex 2.5D structures in thick photoresist over large areas. With a minimum feature size of 500 nm, a write area of up to 400 x 400 mm2 and optional automatic loading system, the DWL 2000 GS / DWL 4000 GS systems are particularly suitable for wafer-level micro-optics used for telecommunications, illumination, and industrial display manufacturing, as well as for device fabrication in life sciences.

    Product highlights

    • Exposure Quality: CD uniformity 60 nm; edge roughness 40 nm; alignment accuracy 60 nm; 2nd layer alignment 250 nm; autofocus compensation 80 µm
    • Grayscale Lithography: 1024 gray levels; dedicated GenISys BEAMER software for optimizing the exposure of complex geometries
    • Temperature-controlled Flow Box: Temperature stability ± 0.1°, ISO 4 environment
    • Exposure Speed: Area of 200 x 200 mm2 in grayscale mode in <60 minutes
    • Large Substrate Size: Up to 20 / 40 cm

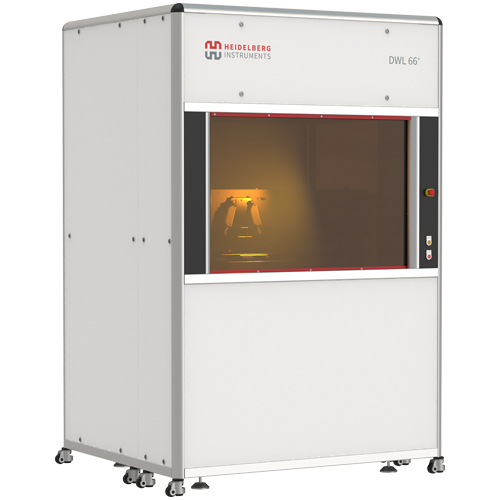

  • DWL 66+ | LASER LITHOGRAPHY SYSTEM
    The ultimate lithography research tool: The DWL 66+ offers unmatched versatility, 200 nm resolution, and professional-grade grayscale with 65,536 levels. Ideal for R&D and prototyping. Fully customizable and proven in over 400 installations....

  • DWL 66⁺ Ultimate Lithography System ǀ Heidelberg Instruments

    The DWL 66+ is a high-performance direct-write laser lithography system engineered for R&D and rapid prototyping across a wide range of microstructure applications, including MEMS, microfluidics, optics, photonics, and quantum devices.

    It delivers the highest resolution on the market (down to 200 nm), professional-grade grayscale capabilities with 65,536 levels, and unmatched versatility through a fully customizable system configuration. With over 400 systems installed worldwide, it’s a proven solution for advanced research environments.

    Key Features

    • Write Mode XR: Achieve 200 nm minimum feature size with exceptional speed and quality.
    • Grayscale Lithography: Outstanding surface quality in thick resists up to 150 µm.
    • Flexible Substrate Handling: Compatible with diverse materials, shapes, and sizes—including curved surfaces.
    • Real-Time Autofocus: Dual autofocus system ensures precision even on transparent or low-reflectivity substrates.
    • Interferometric Position Control: Guarantees high pattern fidelity and placement accuracy.
