Materials and solutions for Wafer handling

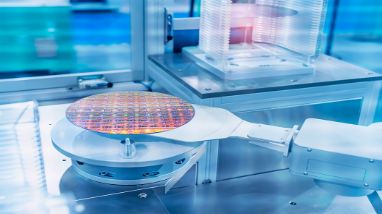

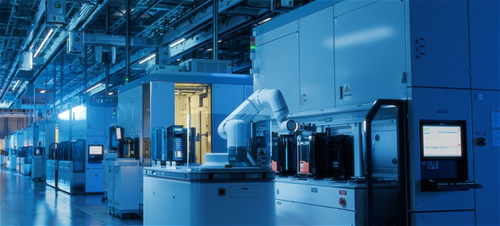

A typical semiconductor factory (fab) includes hundreds of machines that perform a variety of processes for wafer production. Processes include deposition, material removal, patterning, modification of electrical properties, and more. A common element across all these machines is the need for wafer handling tools. These tools include wafer picks/wands, cassettes, FOUPs, grip effectors and automated or robot wafer handlers.
Typical plastic materials used
- PEEK reinforced: Excellent fatigue and chemical resistance
- PEI: High strength and stiffness with good chemical resistance
- PVDF: Corrosion, acid and alkali resistant
- Polyimide: Excellent high temperature properties
Arrange technical advice
The performance and service life of plastics for use in the semiconductor industry are influenced by a variety of factors. These criteria need to be considered in order to make the right choice in materials. Examples:
- Antistatic or conductive properties
- Operating temperature
- Contact with chemicals
- Design requirements
- Dimensions and tolerances
- Flame retardancy
We are happy to advise you on the selection of suitable materials for your particular application.
