CKD Corporation

AMD 3R - Air Operated Valves
New standard of air operated valve for chemical liquids.
It is a high end product that supports a wide range of pressure, temperature and fluid conditions.
It can unify all the models that have been subdivided in use.

MMD 3R - Manual Valves
New standard type of manual valve for chemical liquids.
It is an high-end model covers wide range of main pressure, temperature and liquids.
Reliability is increased adding the feature of overtightening prevention mechanism,
Malfunction prevention lock-ring.

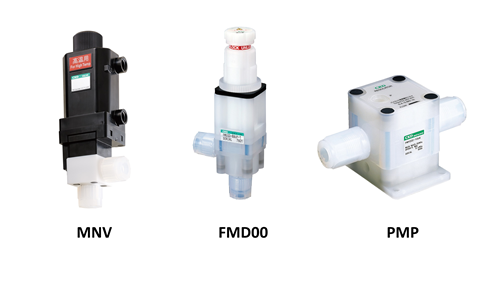

MNV - Electric Flow Rate Adjusting Valves
Electric flow rate adjusting valve (needle valve).
The set flow rate can be remotely adjusted.

FMD00 - Manual Flow Rate Adjusting Valves
Manual flow rate adjusting valve (needle valve).
To support highly corrosive fluids,
Designed fine flow rate adjusting valve.

PMP - Pilot Regulators
A regulator designed to stabilize the pressure fluctuation of chemical liquids and pure water supply parts using pilot air control.
By combining with an electro pneumatic regulator, it is also possible to remotely adjust the set pressure.

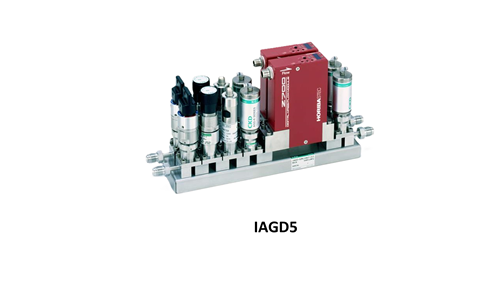

IAGD5 - Integrated gas supply system
A process gas supply system that takes up less space and offers improved maintainability.
We do it all based on the processes you need, from design to manufacturing.
1.125 inch, W seal supported.

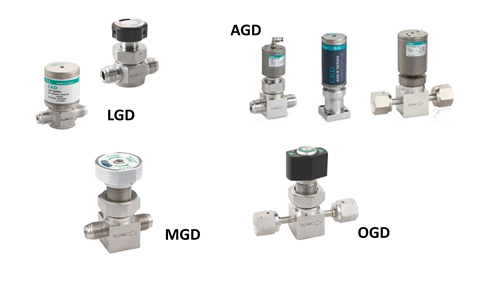

LGD - Valve for process gas
A new variation of valve for process gas that uses a metal diaphragm.
It has been released as a general-purpose product with a forged body.
Air operated and manual are available.

AGD - High-durability process gas valve for high temperatures
A valve for process gas that offers the high durability needed to keep up with advances in refinement.
Three types are available to meet your needs.

MGD - Manual valve for process gas
Manual metal diaphragm valve.
A 270° rotating handle opening/closing type.

OGD - Manual valve for process gas
Metal diaphragm
90° rotation snap action manual valve.

AVB - Air operated valves for high vacuum
With the special structure using CKD's unique molded bellows, a long drive life and high durability are achieved.
High vacuum valve with high reliability and ease of use.

MVB - Manual valves for high vacuum
A handle rotary manual valve for high vacuum.
Aluminum and SUS bodies are available.


IAVB - Vacuum pressure control system
- While maintaining the reliability of the conventional high vacuum valve, it has achieved pressure control that enables various processes.
