KVC

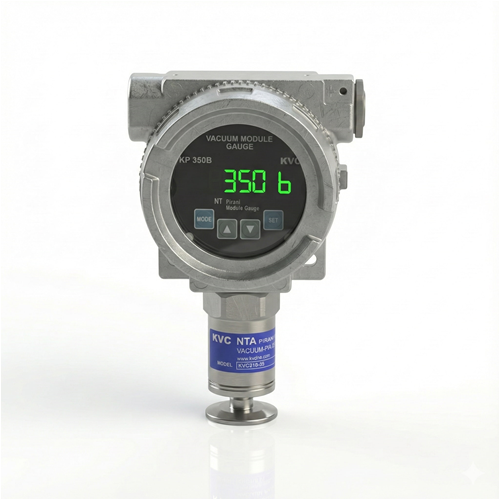

KP350B NT Pirani Vacuum Gauge

The KP350B NT is a compact, module-type Pirani vacuum gauge specifically designed for high-reliability operation in demanding environments.

Key Features & Benefits:

• Compact, Module-Type Design: Offers easy integration and a small footprint.

• Korea's First Explosion-Proof Approval: The first vacuum gauge in Korea to obtain explosion-proof certification, ensuring maximum safety. ( Ex db II C T6 Gb )

• Optimized for Hazardous Environments: Ideally suited for use in environmentally hazardous processes.

• Advanced Process Control: Accurately measures vacuum values, providing essential output to control various systems and pressures.

• Enhanced Productivity: Contributes directly to improved system performance and overall productivity.

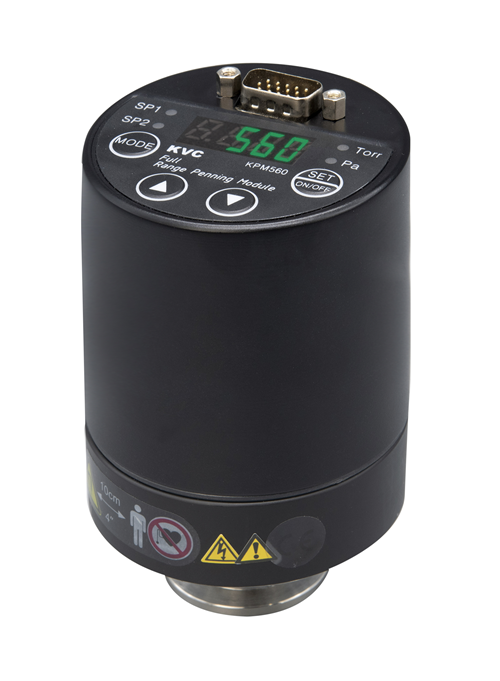

KPM560 Full Range Penning Module Vacuum Gauge

The KPM560 is an advanced, high-precision, full-range vacuum gauge that operates by combining three distinct sensors: Piezo (Pressure Sensor), MEMS Pirani, and Penning Cold Cathode.

Because all three sensors operate within a single, compact module, this gauge offers excellent spatial efficiency.

A single KPM560 gauge can accurately measure a wide vacuum range from 1500 Torr (atmospheric pressure) down to 1.0E-8 Torr (high vacuum) and has obtained CE (EMC, RoHS) certification for proven reliability.

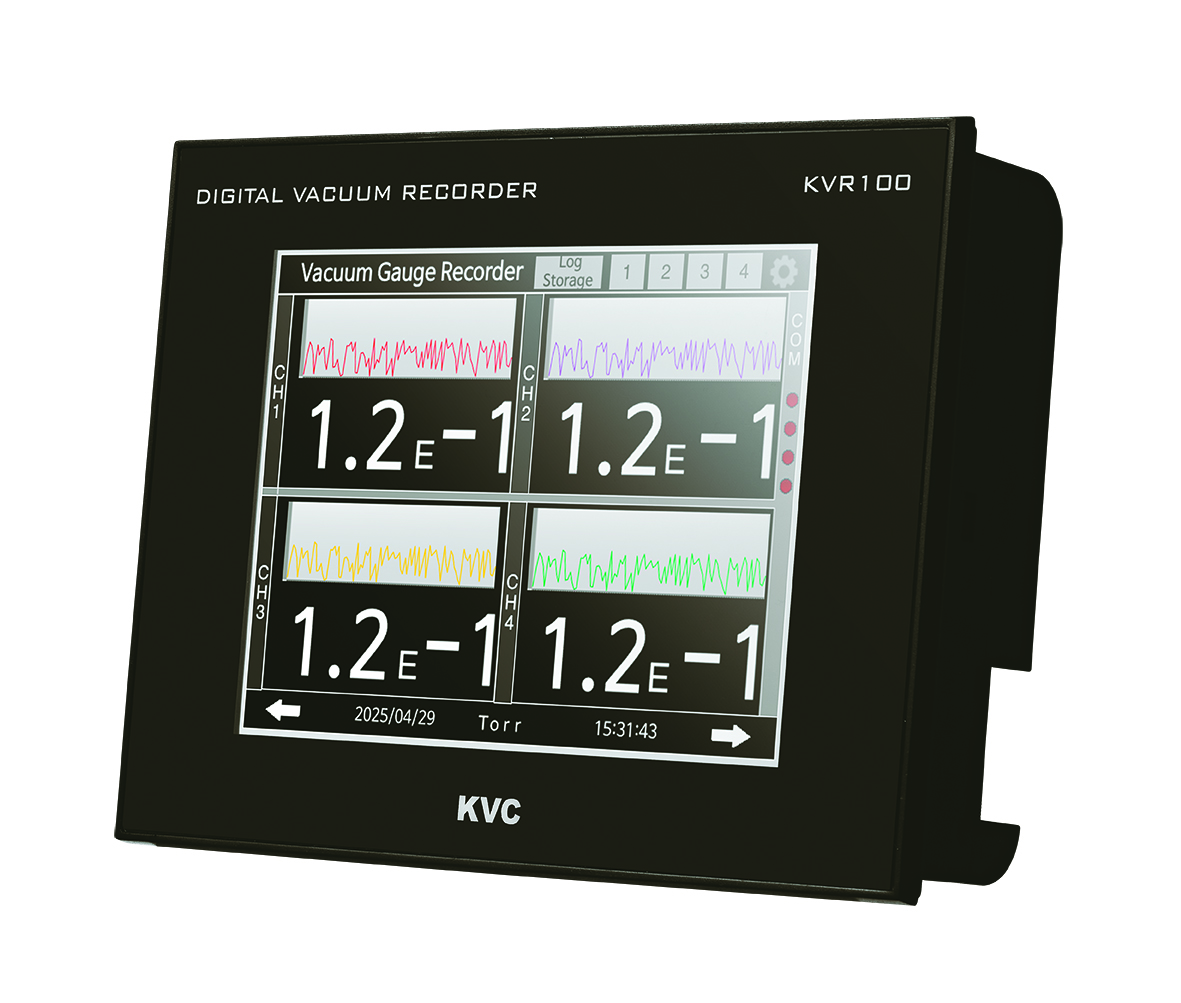

The KVR100 is a vacuum recorder equipped with a 5.7-inch TFT Color LCD and a touch interface, providing an intuitive operating environment for the user.

It supports connections for up to 4 channels (CH) of vacuum gauges via the RS485 MODBUS communication protocol. It displays and records the vacuum level for each channel in real-time.

Key Features

• Intuitive Display: Features a 5.7-inch TFT Color LCD and touch interface for easy operation.

• Multi-Channel Monitoring: Supports up to 4 channels of vacuum gauge connections using RS485 MODBUS communication.

• Real-Time Trend Monitoring: The Real-Time Trend Graph function allows for immediate visual confirmation of vacuum level changes.

• Easy Data Management: Measured vacuum data is stored in internal memory and can be easily downloaded via the USB port.

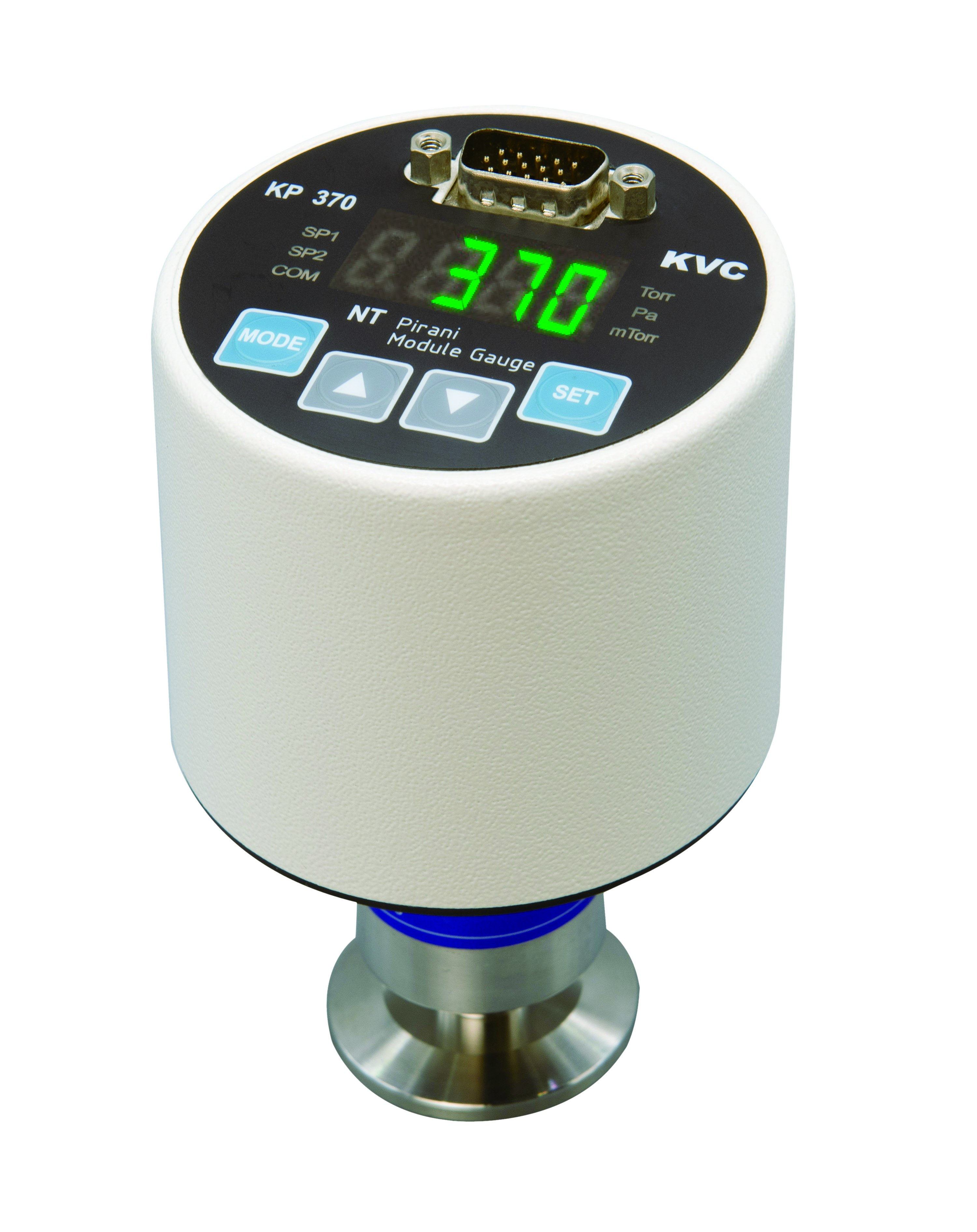

The KP370 is a Combined Vacuum Gauge featuring both Pirani and Piezo sensors. Its compact design ensures easy installation, providing a solution that delivers high reliability and cost savings.

This vacuum gauge allows for effective control over various systems and pressures by utilizing its vacuum measurement output.

Key Features

• Combined Sensors: Uses both Pirani & Piezo sensors in a single module for a wide measurement range.

• Compact Design: Easy to install and highly space-efficient.

• High Reliability: Delivers precise measurement, excellent reproducibility, and outstanding durability.

• Versatile Application: Can be reliably used in various gas atmospheres.

• All-Metal Construction: The gauge features an all-metal construction, ensuring it is free from RF (Radio Frequency) interference issues.

• Certification: This is a CE-certified product.
