KOKUSAI ELECTRIC KOREA

Chung Cheong Nam Do,  Korea (South)
http://www.kekorea.co.kr
  • Booth: A304

Overview

Kook Je Electric Korea Co., Ltd. gives greatest effort for research & development with determination of becoming the foundation for semiconductor industry.

In May of 1993, Kook Je Electric Korea Co., Ltd.  was cofounded with Japan’s KOKUSAI ELECTRIC CORPORATION which is a global semiconductor equipment maker.

We continue to grow as a company and contribute to national development through production and sales of semiconductor and LCD facilities, and maintenance service and research & development.


  Products

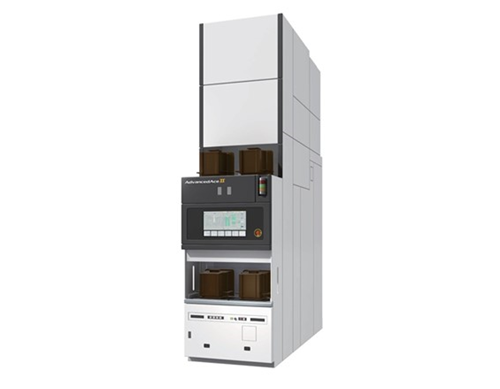

  • AdvancedAce®Ⅱ
    High-productivity Batch Processing System...

  • ▉ Overview

      AdvancedAce®Ⅱ is KOKUSAI ELECTRIC CORPORATION’s latest platform for batch thermal processing of 300mm wafers.

      The AdvancedAce®Ⅱ offers high throughput by utilizing advanced technologies in such areas as temperature control,

      wafer handling automation, reactor purging, and temperature ramping.

    ▉ Process Applications

      ・LP CVD                       ・Oxidation

      ・Anneal(Low temp, High temp) ・Diffusion

    ▉ Features

      ・Achieved high productivity: Improved 1.5times(*) larger lot

         processing in a time (* Compared with previous model)

      ・Capable of conformal films into deep trench

      ・Realized high accurate, high quality film deposition in low temperature

      ・Health check function (Option)

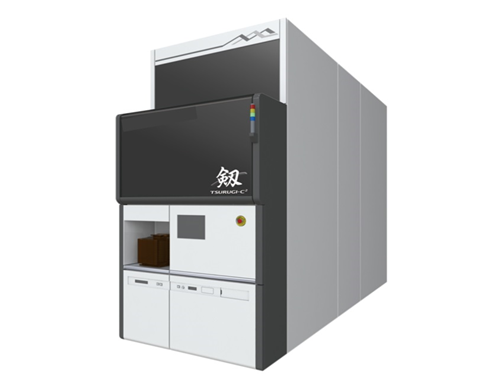

  • TSURUGI-C²®
    High quality film formation・ High-Performance semiconductor manufacturing equipment ...

  • ▉ Overview

      TSURUGI-C²®® is KOKUSAI ELECTRIC CORPORATION’s new thermal processing platform which is most recently developed for

      advanced devices especially for the ones with high aspect ratio 3D structures requiring high quality, uniform and conformal film

      deposition with new innovative reactor design and process techniques.

    ▉ Process Applications

      ・Thin film deposition

    ▉ Features

      ・ New innovative reactor design

       - Provides thickness uniformity improvement with least loading effect

       - Shorten total cycle time with dramatically improved reaction gas purging

      ・ Low particle & High speed wafer transfer automation

      ・ High productivity, Small footprint

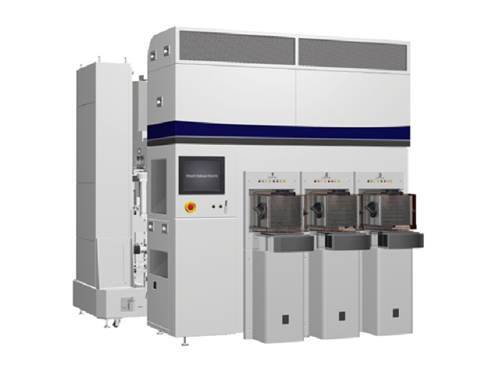

  • MARORA®
    Single Wafer Plasma Nitridation / Oxidation System...

  • ▉ Overview

      MARORA® is a suitable tool to provide gate dielectric film for next generation DRAM, logic or flash memory.

      With our original plasma generation method (MMT *), MARORA® generates a plasma with low electron temperature (approx. 1eV)

      efficiently and realizes plasma damage free process.  *MMT=Modified Magnetron Typed

    ▉ Process Applications

      Plasma Nitridation

       ・Nitridation of dielectric film

      Plasma Oxidation

       ・Forming thin oxidation film

       ・Selective oxidation

       ・Anisotropic oxidation

    ▉ Features

      ・ High throughput

       - 2 times better productivity than previous model

      ・ MMT plasma source is equipped

       - Realized highly uniform plasma at the surface of substrate

         and low electron temperature of plasma (~1eV)

      ・ Wide range temperature control

       - High temperature heater is installed

      ・ Various application

       - In addition to plasma oxidation or plasma nitridation, Selective Oxidation, oxidation of

         Si without oxidation of metal, is capable

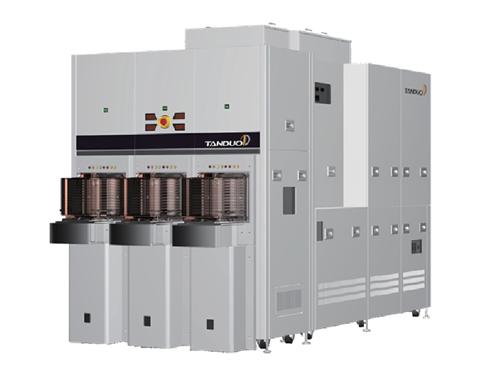

  • TANDUO®
    Single Wafer Annealing System...

  • ▉ Overview

      TANDUO® provides an optimized system for the process such as curing, annealing and degassing by module selection.

      We have achieved great productivity and low particle process environment with our original high-speed wafer transfer system.

    ▉ Process Applications

      ・Low temp Annealing   ・Curing

    ▉ Features

      ・Achieved high throughput with our original high-speed wafer transfer system

      ・Achieved highly uniform temperature control capability within wafer using

        our original susceptor heater

      ・Low contamination level

      ・Small footprint, high tool up-time

      ・Global tool sales record as a high throughput single wafer annealing system by high productivity.
