TAVT

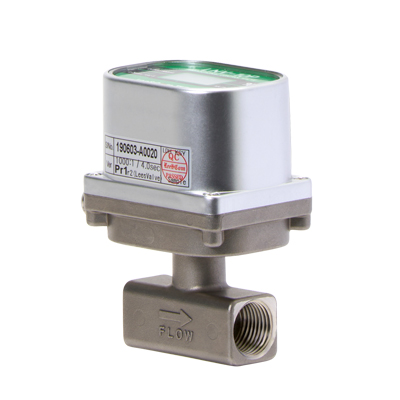

* motor
· Proportional Control Motor : Flow Control
· Actuator and Valve's joint sealing design blocks fluid outflow during neck leak
· Leak Detect function: Neck Leak detects fluid entering Actuator and outputs alarm

· Connector separation between Actuator and Control Unit for easy installation and maintenance
· Resolution 1000:1
· 7 seconds of fast responsiveness (0-100%)

* valve
· Valve Ball Shaft triple seal enhances durability and minimizes leak
· Excellent control characteristics through the application of an integrated ball valve developed exclusively
· Corrosion resistant SCS14A material

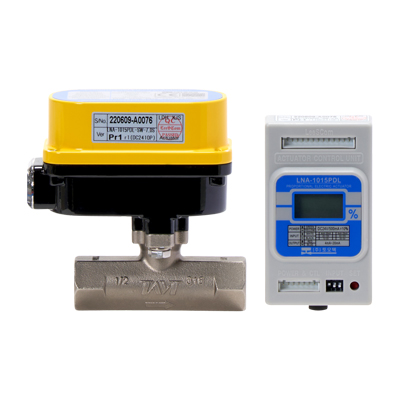

* motor
· Proportional Control Motor : Flow Control
· Linear Type
· One body design removes mechanical coupling
· Complete reproduction with automatic linear calibration
· Resolution 800:1
· Fast responsiveness in 3.5 seconds (0-100%)
· Installation of the upper LCD display: Display position values and operation status
· Compact Design

* valve
· Orifice: Basic 5.0 φ
Option 0.8 Φ, 1.2 Φ, 1.6 Φ, 2.0 Φ, 3.0 Φ, 5.0 Φ can be made
· Corrosion resistant SCS14A material

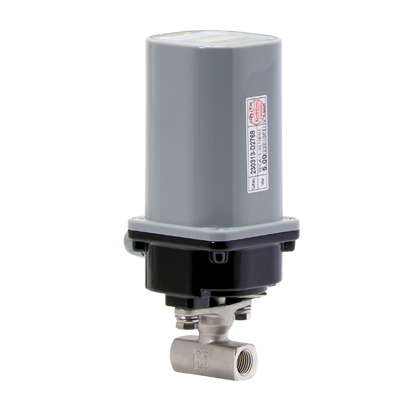

* motor
· Proportional Control Motor : Flow Control
· Install LCD Display on top: Display position values and operation status
· Feedback Default Installation / Six control signals available
· Resolution 400:1 (AC220V) / 600:1; 1600:1; 3000:1 (DC24V)
· Compact Design Domestic Minimum Type
· Built-in Limit Switch: No power consumption other than operation

* valve
· Highly corrosion-resistant SCS14A material
· Internal diameter: Reduced bore type (internal diameter smaller than pipe size)
· Additional options such as gold oil treatment and electrolytic polishing are available
· V-Ball applicable (improved precision)

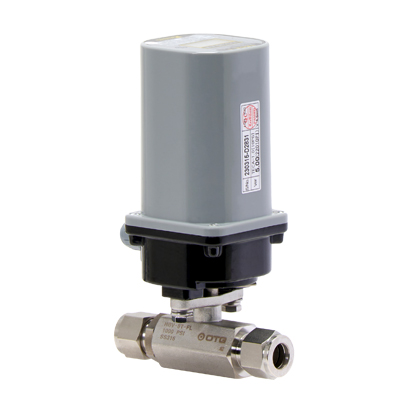

* motor
· Proportional Control Motor : Flow Control
· Install LCD Display on top: Display position values and operation status
· Feedback Default Installation / Six control signals available
· Resolution 400:1 (AC220V) / 600:1; 1600:1; 3000:1 (DC24V)
· Compact Design Domestic Minimum Type
· Built-in Limit Switch: No power consumption other than operation

* valve
· Highly corrosion-resistant SCS14A material
· Can handle gold oil (separate inquiry)
· Easy to assemble and reassemble
· Remove SUS tangle by silver plating on the screw
· Excellent resistance to vibration fatigue and tube support function
· No torque delivered to tubing during facility

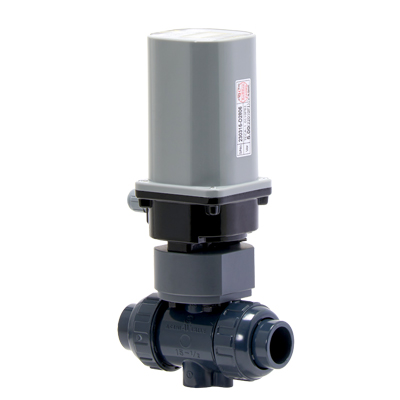

* motor
· Proportional Control Motor : Flow Control
· Install LCD display on top: Display position values and operation status
· Feedback Default Installation / Six control signals available
· Resolution 400:1 (AC220V) / 600:1; 1600:1; 3000:1 (DC24V)
· Compact design domestic minimum type
· Built-in Limit switch: No power consumption other than operation

* valve
· Ultra-pure DI, chemicals (sulfuric acid, hydrochloric acid, hydrofluoric acid), and seawater only
· Depending on the fluid, valve materials (PVC,PP,HTPVC,PVDF) and O-ring material (EPDM, VITON) applicable
· Internal diameter: Full bore type (equivalent to pipe size and internal diameter)
· Piping connection: Union, PT, flange type available

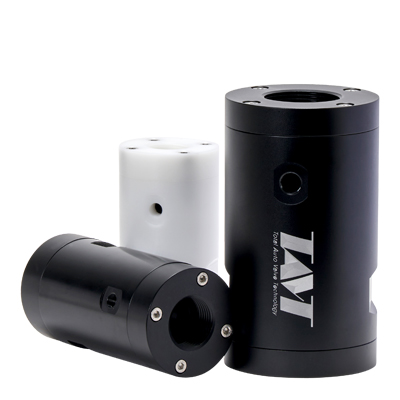

- The pinch valve is a pneumatic shut-off device for application in the automation industry
- Robust and simple design has fewer components to ensure high operational reliability and long life
- Simple structure and easy to maintain
- The compact design of pinch valves is often used in the most difficult-to-reach spaces
- The highly elastic sleeve deforms under air control pressure and stops the flow of the medium as long as the control pressure is maintained
Form a leaf seal in the middle
- When the air control pressure is reduced, the sleeve of the valve opens with its own recovery capabilities
- Control any medium, hygienic, no empty space, no risk of filth jamming
- No obstruction to fluid flow
- Especially suitable for mixed media (fluids) with hard-to-flow substances such as solids, powders, silk, waste, etc
