WELD WELL CO., LTD.

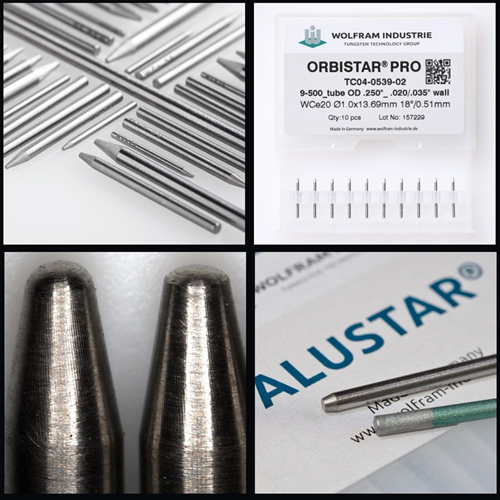

ORBISTAR® electrodes from Wolfram Industrie are developed through extensive testing and close collaboration with users.
They feature superior material properties, precise geometry, and uniform cutting quality.
Ideal for thin-walled tubes and low-current welding, they help reduce costs while maintaining high-quality welds.
Perfect for industries requiring top-tier welding, such as food processing and pharmaceuticals.

▪ Precision reproducibility of welding processes
▪ Excellent ignition characteristics and extended service life
▪ High-quality weld seams with shorter production times
▪ Health and environmentally friendly materials
▪ Tested and certified quality

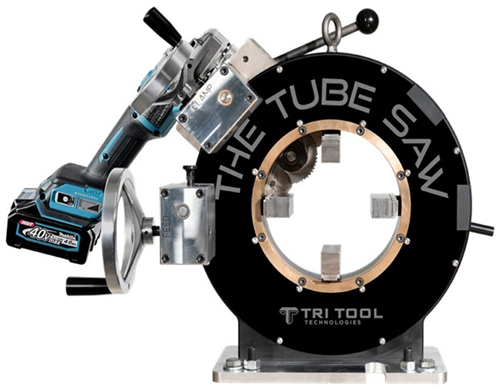

THE TUBE SAW by Tri Tool

THE TUBE SAW by Tri Tool delivers clean, precise cuts with unmatched accuracy. Featuring ambidextrous operation and Tri Tool’s legendary durability, it’s ideal for high-pressure industries like aerospace, contracting, and pharmaceuticals, combining heavy-duty construction with portability.

▪ Cordless motor with corded motor option
▪ Cuts tubes and thin wall pipes with 0.250” - 6.625” OD [6 mm - 168 mm OD]
▪ Up to 0.150” [3.8 mm] wall thickness capability with the standard saw blade
▪ Ambidextrous operation interfaces allow for reconfiguration for left- or right-handed use
▪ Easy-install saw blade system with multiple saw blade types, materials, and designs for every application
▪ Self-centering clamping system provides industry-leading precision and square cuts
▪ Integrated laser line indicates center of cut on the tube
▪ Sealed precision bearing ensures smooth, accurate sever cuts over years of use
▪ Hard anodized coatings throughout the machine components provide corrosion protection and robustness for the harshest environments

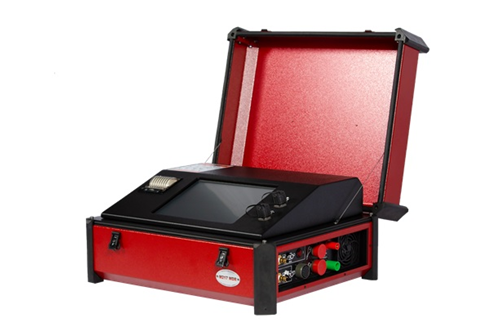

FEATURES
• WDR (Weld Data Recording): recording and saving weld data and exporting them to a storage device in their native or other file formats; saving project weld data records as a single file
• 12" color touch-screen display
• Computer controlled internal memory for 1000+ weld schedules and up to 99 levels per schedule
• Manual or automated weld procedure generation Weld schedules: tack, pulsed, step, no-pulsed, tack, S3, and pulsed S3
• H.F. arc starting
• O.D. gas pressure control and on-screen pressure monitoring
• ID purge gas valve
• Fault detection: gas, coolant, arc voltage
• Internal printer for print of schedule settings, and quantity of completed welds
• Digital weld head control to allow connection to weld heads from other manufactures

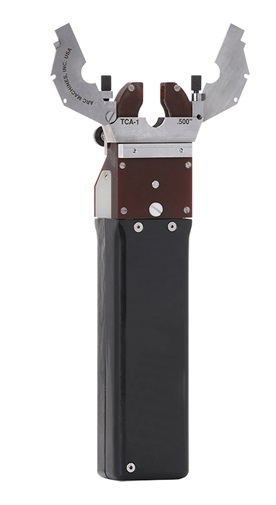

The Model 9 Series offers precision and efficiency in orbital TIG welding for tubes, pipes, and cylindrical components. Designed for versatility, it accommodates a wide range of diameters and wall thicknesses with easily replaceable clamps. Its two-sided clamping mechanism ensures perfect alignment, reducing the need for tack welding. With water-cooled components for enhanced duty cycles and optional flip-up viewing windows for easy fit-up verification, the Model 9 Series is built for performance and reliability. Fully compatible with all AMI Power Supplies, it’s an ideal solution for high-quality, automated welding applications.

Key Features

🔹 Versatile Welding – Supports various tube sizes with replaceable, size-specific clamps
🔹 Precision Alignment – Two-sided clamping minimizes tack welding
🔹 Enhanced Visibility – Flip-up viewing window (select models) for fit-up verification
🔹 High Duty Cycle – Water-cooled cables and components prevent overheating
🔹 Broad Compatibility – Works with all AMI Power Supplies
🔹 Size Range:

• Diameter: 2.3 mm (3/32") to 190.5 mm (7.5") OD
• Wall Thickness: 0.25 mm (0.01") to 4 mm (0.16")

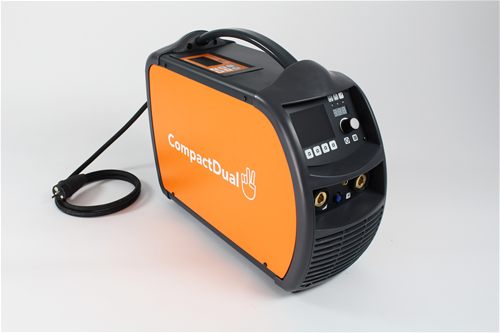

DESCRIPTION

• High-quality TIG hand and orbital welding machine with 220 A DC power output
• Easy-to-use color display
• Stores up to 64 hand welding programs
• 99 orbital welding programs with guided program creation (automatic program calculation)
• Fully updatable
• High-frequency pulsing for TIG hand and orbital welding (up to 2500 Hz)
• Temperature-controlled ventilation for optimal performance
• Additional advanced features for reliability and efficiency

TECHNICAL DATA

• Welding process: TIG DC, constant or pulsed, with or without Oscillation, AVC and wire feeder
• Input power: Single phase, 115/230 V ± 15% - 50/60 Hz
• Main fuse: 16 A
• Insulation class: H
• Protection class: IP 23 S
• Welding current: 3 to 220 A
• Motor controls: Encoder and Tachospeed motors
• Display / Recording: Welding current, Arc Voltage, electrode angular position, welding and wire speed
• Connectivity (Documentation, Updates): 1 x RS232
• Dimensions (L x W x H): 490 x 195 x 400 mm
• Weight: 15,4 kg
• Standard: EN 60974-1 / EN 60974-10

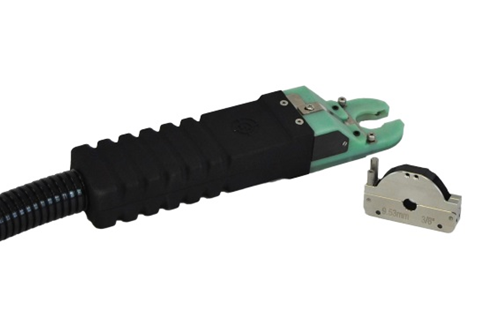

CWH5H & CWH10H – High Purity Orbital Weld Heads

The Orbitalservice CWH5H and CWH10H have been designed to respond to the highest demands in the high purity welding industries. The heavy duty integrated water cooling makes
this head unique on the market.

Designed for high-purity welding applications, the CWH5H and CWH10H provide exceptional cooling and efficiency for small-diameter tubing (3.0 mm – 25.4 mm, wall thickness up to 2.0 mm). These heads feature a removable clamping block for easy positioning in both inline and prefab production. The integrated heavy-duty water cooling system prevents overheating, reduces cooling time, and boosts productivity—making them an ideal choice for industries like semiconductors.

CWH Series – Slim & Versatile Closed Weld Heads
The CWH series offers the slimmest closed weld heads in orbital welding, covering diameters from 3 mm to 114.3 mm (0.12" – 4.5"). The spring steel clamping system (CWH 21 & CWH 38) ensures easy handling, reusability, and cost efficiency, while the CWH 21 can convert into a scroll block for precise, centered welding. Larger models (CWH 53, CWH 76, CWH 115) feature a water-cooled, spring-loaded clamping system for secure, high-quality welds.

Key Features:

• Water- or gas-cooled options (CWH-13, CWH-21, CWH-38 are gas-cooled)
• Compatible with tachogenerator versions (AMI, Orbitalum, Magnatech, ESAB)
• Innovative spring clamping system for secure welding
• 8m standard hose length (extendable on request)
• Long-life aluminum collets (CWH-21, CWH-38, CWH-53, CWH-76, CWH-115)
• Interchangeable cassettes (CWH-13)
