Honeywell Pte Ltd

Detect more gases, in many cases at lower levels, with proof of response through state-of-the-art Human Machine Interface (HMI). Promote uptime, low cost of ownership, and reliable performance with ACM 150G2 by Honeywell.Product Overview:Increase productivity demands with a newly designed FTIR bench that provides a better Lower Detectable Limit (LDL) for many gases through the instrument. Choose Honeywell ACM 150G2 for enhanced safety, improved performance, and lower cost-per-point monitoring.

• Up to 40 measuring points can be centrally located on one device, such as process tools, gas and chemical storage units, gas cabinets, distribution boxes, process tools, emission measurement, and ambient air monitoring.
• Up to 15 gases can be detected per measuring point, lowering your cost-per-gas-per-point monitoring.
• Self-diagnostic programming detects faults and critical alarms, eliminating many maintenance calls.
• Communications options meet unique site requirements (Open Platform Communications (OPC), ControlNet™, Modbus®, and Profibus®

Improved Gas Monitoring Performance with the ACM 150G2Increase productivity demands with a newly designed FTIR bench that provides a better Lower Detectable Limit (LDL) for many gases through the instrument. Choose Honeywell ACM 150G2 for enhanced safety, improved performance, and lower cost-per-point monitoring.Features and Benefits:Integrate gas detection into a single unit:

• Detect multiple gases, chemicals, or odors in an industrial process*
• Overlay the spectrum of detected gas against a library of spectra for precise detection as a user validation tool
• Up to 40 measuring points can be detected sequentially
• 80 configurable relay points for increased flexibility

Promote uptime:

• Sealed aluminum body prevents moisture intrusion, protecting critical internal components
• Double IR scan ensures reliable performance and reduces false alarms
• Optimized built-in measuring/self-diagnostics eliminate on-site gas calibration
• Desiccant replacement cycle of 3-to-5 years

Boost gas monitoring performance:

• Composite sampling of up to four measuring points provides faster measurement
• Easy-to-service gas cell with stainless-steel body construction prevents costly downtime
• Better Signal to Noise Ratio (SNR) performance allows for lower LDL measurements

Simplified touchscreen operation:

• Improved HMI with modernized solid-state computer operating on a world-proven operating system
• Large user-friendly touchscreen interface
• Flexible communications options meet unique site requirements
• Robust solid-state drive
• Embedded web server for remote access
• Refer to the ACM 150G2/100 Gas List or ask your regional sales rep for more information. More than two hundred gases detectable. Our engineers may be able to generate a new method for gases not listed.

Quick Specs:

• Analysis method: Continuous scan FTIR (Fourier Transform Infrared) analyzer
• Gas cell path: 5.0 m path length
• Scanning rate: ≤ 15 sec per point

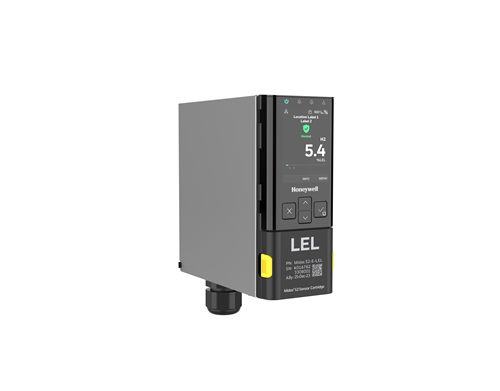

The Midas S2 is a fixed, extractive single-point gas transmitter that draws a sample locally or from a remote point to a sensor cartridge. A wide range of toxic, flammable and oxygen gas sensor cartridges are available to detect gases used or generated in semiconductor manufacturing operations, light manufacturing environments, and national and university labs specializing in semiconductor processing research.
Clear Visibility: Improved graphics display interface for better visibility, instrument status icons, monitoring point and location, and instant alerts to gas readings or alarm levels. Calibration Completed: Factory-calibrated sensors reduce the need for frequent gas testing
.
Improved Serviceability: Easy access to change the sensor and pump from the front of the equipment.

Easy Installation:Compact in size, making it suitable for crowded, complex process environments where space is at a premium, the Midas S2 is simple to install with its plug-and-play capability.

PoE Protocol:The detector includes the innovative Power over Ethernet (PoE) protocol — a single connection for all power, control and communication requirements.

Integrated Security:The Midas S2 interface includes password-protected menus to maintain system integrity.

• Features & Benefits:
• Highly modular design for easy, reliable, and trouble-free installation
• Quick replacement of cartridges and pump parts for simple maintenance
• Single sensor cartridge with onboard ‘e-calibration’ certificate
• 3-built-in relays (Form C) for Alarms 1, 2, and Fault
• Supportive digital communication (Modbus/TCP Ethernet/Power over Ethernet (PoE))
• Keypad interface
• Factory-calibrated sensors to reduce the need for frequent gas testing
• 4-20mA analog output with fault and event reporting
• Large, bright, and rich TFT color LCD and extensive viewing angle
• mA communication protocols for easy connectivity and service interaction
• Robust extractive pump system (2-year lifetime) sampling up to 100 feet
• Supportive Digital communication (Modbus / TCP Ethernet / Power over Ethernet (PoE))
• Block test to ensure sampling line connection and no leakage

The Midas-M is a Fixed Extractive Single Point with 4-in-1 Multi Gas Detector to detect more than 30 gases - precisely, easily, quickly, that draws a sample locally or from a remote point to a sensor cartridge that is located inside the detector's chassis. A side range of toxic, flammable and oxygen gas sensor cartridges are available that enable detection of gases used or generated in the Semiconductor and other manufacturing industries.Features & Benefits:

• Over *33 gases available with 2 year warranty : 17 gases available at launch
• 4-in-1 multi smart sensor cartridge with on board * ‘e-calibration’ certificate
• Modular design for easy to use and service (front, pump, sensor cartridge, main and base)
• 3 built in relays (Form C) for Alarm 1, 2 and Fault
• Power over Ethernet (PoE) communication
• Keypad interface and remote web browser interface
• Factory-calibrated sensors to reduce need for frequent gas testing
• Isolated 0-21 mA analog output with fault and event reporting
• Modbus/TCP Ethernet for easy connectivity to all control and alarm systems ports for control connectivity and service interaction
• Robust extractive pump system (2 year lifetime) sampling up to 100 feet

Quick Specs:

• Flow Rate: 500 mL/min
• Transport Time: 2 to 30 seconds maximum
• Sample Line Tubing: 0.125 in ID x 0.25 in OD

Honeywell Vertex Edge toxic gas monitoring system can be tailored to meet the requirements of your facility. With up to nine Chemcassette® gas analyzers, each with eight points of detection, the system monitors virtually every gas used in semiconductor fabs — down to parts per billion (ppb).
Honeywell Vertex Edge provides high performance with simple operation, so you can quickly evaluate gas readings, alarms, event logs, real-time trends and overall system status. And the user-friendly touchscreen with large icons makes navigation easy — even if you’re wearing gloves.
