AKABANE SANGYO CORPORATION

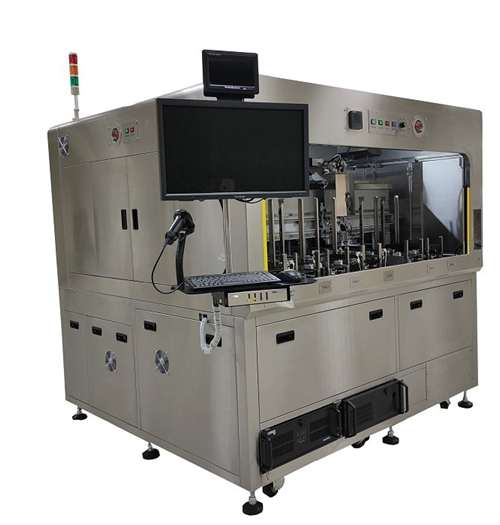

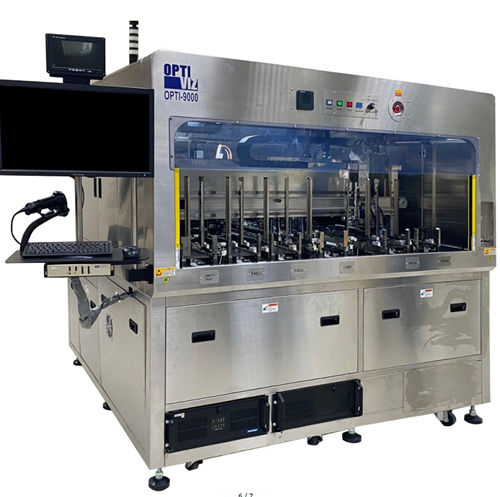

• New generation laser head, wider scanning rage, faster image capture speed.

  ★新世代鐳射頭，更寬的掃描範圍，更快的取像速率;

  Min. blind area optical design, complete image captured, without occlusion problem;

  ★最小盲區光學設計，擷取影像更完整，無遮蔽之問題；

  Full-journey dual vehicles, reduce operation wait time, enhance production efficiency.

  ★全行程雙台車，減少作業等待時間、提升產能效率;

  Inspection repeatness: warpage±4um, coplanarity±4um;

  ★量測重複性：warpage±4um,Coplanarity±4um,

  Inspection accuracy: warpage±5um, coplanarity±5um；

  ★量測精度：warpage±5um,coplanarity±5um；

High measurement accuracy, high stability;

★高量測精度,高穩定性;

Handle different types of bumps, no need to change laser head;

★對應不同各類Bump,不需要更換鐳射頭;

Fast image capture technology, dual-sensor receiver, complete image without occlusion problem;

★快速取像技術，雙SENSOR接收，影像完整，無遮蔽;

Small footprint, No limit to bump pitch measurement capability

★高度小,Pitch bump測量能力不受限制;

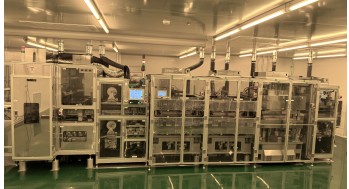

Full Auto temporary lamination & three stage vacuum lamination equipment

★全自動預貼&三段真空壓合設備

Super high flatness, special rubber type lamination technology & servo drive for upgrading flatness.

★特殊橡膠壓合式層壓技術&伺服驅動進一步整平設計,超高平坦度

Ultra high sealness

★超高氣密性

Handle super high layers

★對應超高層積

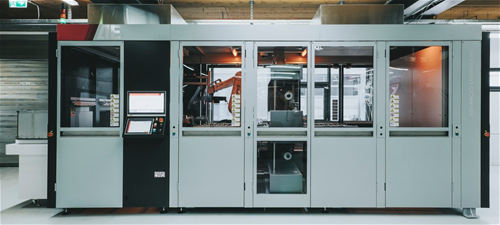

• Peeling PET-film from both sides simultaneously and single sided (top or bottom)

可單面/雙面撕膜

• Suitable for Dielectric or Build-up Films (ABF, DRF, SR, etc.)

適用於中介層或BU層撕膜（ABF, DRF, SR，等等）

• Base material can be substrates panels or glass panels

基材可以是有機基板或玻璃基板

• Fully automatic peeling system as a standalone solution

全自動撕膜系統

• EFEM handling with integrated camera system for ID-recognition

EFEM入料，可集成相機系統進行ID識別

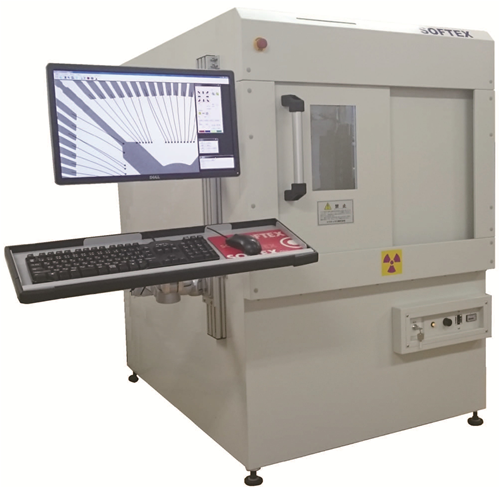

Internal inspection with zero blind areas with diagonal CT imaging

傾斜CT成像檢查設備，零盲區內部檢查

High resolution / High throughput

高精度、高產能

360-degree scanning capability with a rotary stage

配旋轉臺面，可360°掃描

Hybrid scanning combining oblique viewing and a rotating stage

綜合傾斜檢查和旋轉臺面檢查兩種掃描方式

Auto-detection of stage center position

自動偵測平臺中心位置

Marker offset function

標記偏移功能
