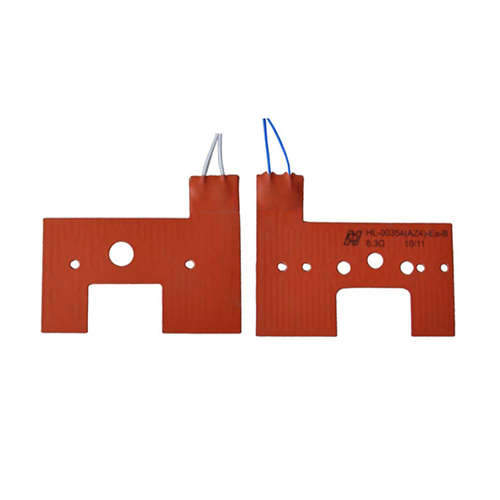

1. The silicone heater is a soft, thin surface heating body

      By the upper and lower two pieces of glass fiber cloth sandwiched into the silica gel after pressure of two slices.

      Because it is a thin sheet product, it has good heat transfer (standard thickness 1.5mm).

• Soft（flexible silicone heater）, so that the heated object can be completely close contact, such as curved cylinder.
• The general surface heating body is carbon component, and the silicone heater is the nickel alloy heating film after the arrangement, so it can be used safely.

2. The shape of heater can be made freely

• Different from the general carbon heater, the silicone heater is shaped by the nickel alloy resistance body, which can be freely processed into circles, triangles and so on according to the shape of the heated object.
• Products can be processed in a short period of time (even one piece).

3. It can be designed according to product requirements.（custom silicone heating pads） It can be used in various industries and equipment.custom silicone rubber heating element

• Because it is thin and soft, it can be lightweight and miniaturized when used in other products.
• Temperature rise fast, and impossible temperature control, so the need for temperature regulation.

4. Standard type, E type, MG type can be used semi-permanently under the condition of 200° C

• It can stick to the object being heated.
• Below 100° C Double-sided tape
• when the temperature ranges from 100 ° C to 150° C Silicone (RTV)
• Such as continuous heating above 150° C, it is recommended to adhere to the manufacturer.

5. The maximum temperature of H type can reach 300° C

• Available 300° C heat-resistant adhesive.

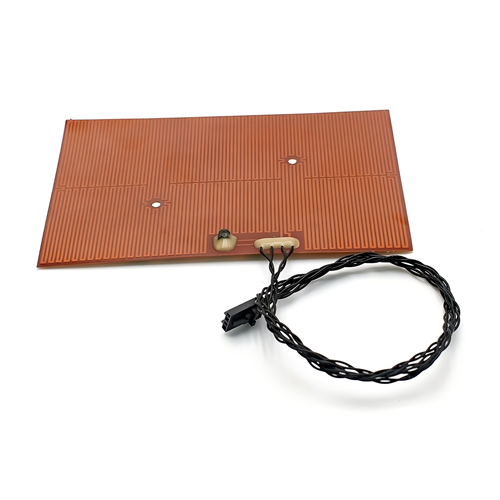

This electric heater has a thin structure (up to 0.25mm thickness) and can be bent arbitrarily according to the shape of the workpiece to ensure close contact with the workpiece and ensure maximum heat transfer. PI flexible heater is a translucent or fully transparent metal flexible electric heating film, its upper and lower surface is a kind of good temperature resistance, excellent insulation performance of the film, the middle is made of special alloy foil resistive circuit.

Compared with the filament electric heating structure, it can provide more uniform thermal field, shorter heating time and faster response time, lower power load and longer service life.

According to customer's request, this product can provide pressure sensitive version of PSA or epoxy adhesive for installation.

Due to its light weight, high structural strength and uniform heating, the product has been widely used in the heating of medical, electronic, aerospace and mobile instruments.

This product working voltage :1V-100v, according to the requirements of heating workpiece, can be made into a variety of different heating circuit, for example, you can require some of the circuit heating, some circuit as heat preservation tracing, so the design is very flexible.

PI film heater is resistant to oil, chemical corrosion and radiation, and can be widely used in harsh working conditions.

• Occupy a small space; Light in weight; The thickness is thin.
• Good softness, its minimum bending radius is about 0.8mm.
• The shape and size of flexible customization, especially suitable for the production of small area of flexible electrothermal film components.
• The use of surface heating, allow large surface power load, the maximum can reach 7.8/cm2. Therefore, this product has the characteristics of good uniform heating performance and fast heating rate.
• In different areas can meet different heating power requirements and heating temperature requirements, can be designed according to the requirements, to achieve the temperature distribution on the heating surface.
• The thermal inertia is small, the temperature control precision is high, the heating speed is fast.
• As a protective layer, the insulating film has a very low saturated steam pressure, low gas release, and excellent chemical corrosion resistance, antibacterial performance and radiation resistance. Therefore, the flexible heater series products are suitable for vacuum environment, with petroleum and most chemicals (such as acid, chemical solvents, general lye) contact environment.
• Products with PSA adhesive are more convenient and fast to install (applicable to 1w/cm2 and 2w/cm2), and can also be installed by the user with mechanical crimp or epoxy adhesive.
• This series of products are safe, reliable, long service life.

• Scientific analysis instruments, such as: for thermal conductivity measurement instrument to provide constant temperature source, medical instruments and stable optoelectronic components working temperature.
• In the cold environment, make the instrument and equipment to reach the safe working temperature. For example: artificial satellites, instruments in space vehicles and instruments and instruments used in high latitude areas to prevent low temperature, such as card readers, liquid crystal display LCD and other instruments.

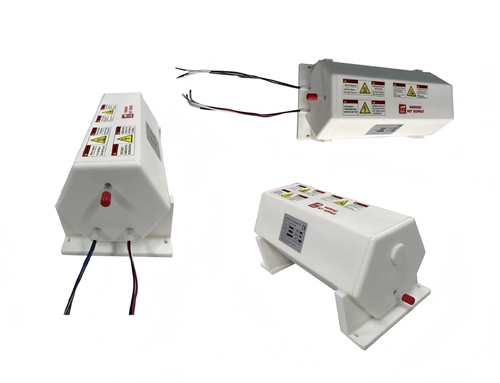

Our products are made of PFA/PTFE with excellent chemical compatibility to meet the heating needs of most corrosive materials. The electric heating wire is made of nickel-chromium alloy element and covered with imported PFA material, which has the advantages of high heating efficiency, long life and high cleanliness.

The product has excellent safety performance and is equipped with safety control devices such as anti-dry burn level sensor, overheat thermocouple and process thermocouple. The compact design allows for a small footprint and easy installation.

PFA in-line heaters offer excellent chemical compatibility, high efficiency, and superior safety to meet a wide range of fluid heating needs in the electronics industry.

We currently offer two product lines, 3KW/220V and 12KW/380V, and customized products with different power ratings are available upon request.

Product Introduction

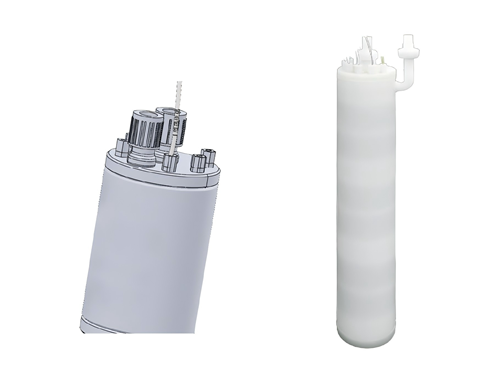

A quartz in-line heater is a type of heating equipment that utilizes quartz material as a heating element. Usually used for high temperature heating and thermostatic control applications, quartz in-line heaters have excellent high temperature resistance and chemical stability.

Quartz in-line heaters are widely used in semiconductor manufacturing, chemical experiments, biomedical research, glass industry, electronic component testing and other fields. Features include rapid temperature rise, high temperature stability, low thermal inertia, and small size, making them ideal for many high temperature heating needs.

Product Parameter

• Voltage: 208VAC, 240VAC, 400VAC (some models), single-phase or three-phase model related
• Processable liquids: corrosive liquids (acid), ultrapure water
• Maximum water temperature:100°C

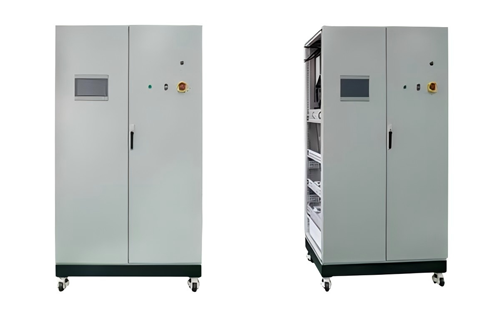

Ultra-pure deionized water heating system, in order to ensure ultra-pure conditions throughout the heating process the surfaces in contact with the liquid are all made of ultra-pure PVDF/PFA material. Provides stable, accurate temperature output power ranging from 40kw to 225kw through PLC temperature precision control technology.

• Heating Element: Deionization heating systems typically include one or more heating elements for warming.
• Temperature Controller: The system is equipped with a highly accurate temperature controller to ensure that the temperature of the deionized water is maintained within the desired range. This is important for semiconductor processes and other high precision applications.
• Supply of Ultra-Pure Water: We have high purity water for testing to ensure the cleanliness of the piping from the equipment factory.
• Water pipes and Connectors: Water pipes and connectors used to transport deionized water are often made of high-purity materials to minimize the risk of contamination.
• Ultra-pure deionized water heating system, in order to ensure ultra-pure conditions throughout the heating process the surfaces in contact with the liquid are all made of ultra-pure PVDF/PFA material. Provides stable, accurate temperature output power ranging from 40kw to 225kw through PLC temperature precision control technology.

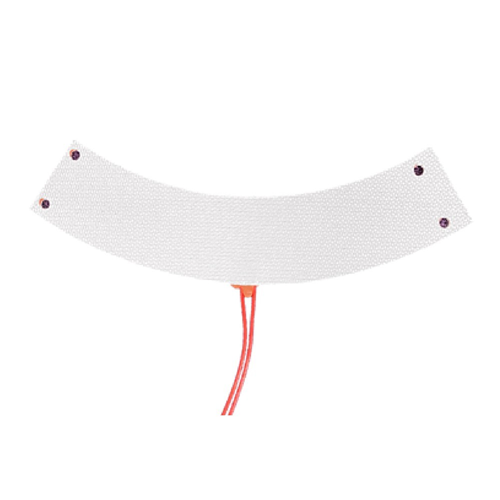

• Size/Color: Customizable Upon Request
• Thickness: > 0.35mm
• Operating Temperature: ≤ 280°C
• Authenticate: UL Certified
• Lifetime Testing: Current 280°C energized dry burning aging test time: 8500+h
• Features/Advantages:
• 1. Excellent electronic insulation, high chemical resistance, anti-adhesion, good temperature resistance;

  2. Clean heating, no contaminants, no special gas evaporation;

  3. Make up for the blank of heating within 300 degrees;

  4. industry-leading, competitive, worth promoting and occupy the market position;

  5. add a new class of flexible heater option.

• Customers: Including: semiconductor, new energy, photovoltaic equipment, medical, civil products and foreign customers.
• Patent Status: 1 patent, admitted.
