QV Apex Pro is a CNC Vision Measuring System. This is a superior model of QUICK VISION, which is equipped with the StrobeSnap function as standard, enabling high-speed measurement.

Features

• All the QUICK VISION Pro models are equipped with a strobe light, and the newly developed vision measuring function "StrobeSnap" delivers measurements with both high throughput and high accuracy. Regardless of the continuity of measuring positions, measuring time can be shortened by about 35 to 45% for most measurement samples. Due to the excellent compatibility with part programs allows a part program to be created for high-speed measurement with ease.
• The image auto focus of QUICK VISION Pro can measure the height of mirror-finished surfaces through to rough surfaces, such as machined surfaces and plastic molded parts, with high accuracy and at high speed under any conditions. Image auto focus speed has been improved by about 30% compared with conventional models.
• Height change in a workpiece can be tracked in the Z-axis direction quickly by laser with the Tracking Auto Focus (TAF) function. StrobeSnap and STREAM allow it to perform effectively, resulting in a significant increase of measurement throughput.
• The Point From Focus (PFF) function enables the 3D measurement with multi cross-section images. Scanning the object by auto focusing the objective lens can capture multiple cross-section images (image contrasts) at different heights. Thus obtaining 3D shape data from such images.

Features

• FORMTRACER Avant Series boast best-in-class drive speed, such as fast movement of drive unit and column, stroke (retraction) speed-up, etc. To meet the needs of “Speed-up,” on surface roughness measurement, the positioning distance from the start of measurement to the start of data acquisition is reduced to the limit, while on contour measurement, the time from touch-down on a workpiece to the start of measurement is shortened. The total measurement time is drastically reduced to improve measurement efficiency.
• This system uses a cable-less design allowing measurements without having to worry about snagging unprotected detector cables, while the drive section is an X-axis inclinable drive unit. The inclination range is a wide ±45°, allowing inclined surfaces on of workpieces to be simply measured without using an inclination jig. In addition, the detector can be replaced without turning power off, the guide pin reproduces positioning with high accuracy, and the software supporting the mounted detector starts up automatically. Such outstanding features drastically improve work efficiency.
• The upper/lower surface continuous measurement feature, performing control of measurement direction and measuring force by double-sided stylus and software, remarkably improves the measurement range. The stylus-drop detection feature immediately stops operation if the stylus suddenly drops, thus preventing damage to the stylus during continuous cut-out measurement without having to rely on a conventional mechanical stop. Other features enable accurate and safe measurements in accordance with the characteristics of a workpiece.

Features

• It has achieved an accuracy guaranteed temperature range of 10 to 40ºC thanks to the combination of technologies such as a symmetric structure, uniform material and temperature compensation.
• The adoption of the horizontal-arm structure provides a three-sided open architecture, significantly easing the task of moving workpieces on and off the measuring table.
• The touch panel and work positioning pallet make it easy for field workers to perform measurements.
• It allows on-line monitoring of the operational status of a measuring machine and visualization of measurement data produced during the manufacturing process to enable product quality improvement.

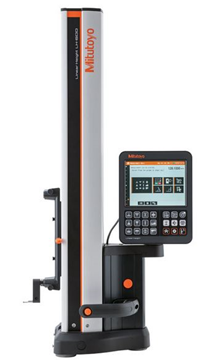

Easy Operation and High-accuracy
• Easy operation using keypad and touch screen navigation, even suitable for beginners.
• Conduct various measurements such as 2D measurement and perpendicularity measurement with just one tool.
• Versatile measurements through optional probes.
• Enhanced data output functions make it easier to manage your measurement data

High-accuracy Non-contact In-line Measuring System/Laser Scan Micrometers


LSM-02-A
LSM sensor developed for in-line and automated equipment that has a compact body that can fit anywhere.

LSM-30-A
LSM sensor that has a separable sensor whose emission/reception unit can be
used separately.

LSM-CU-A
Controller for LSM Developed for in-line and Automated Equipment

I/F Module
Four types of interface are available so that you can select the right one to meet your production line requirements

LSMPAK
LSMPAK helps to ensure intuitive operation of LSM’s measurement conditions (functions to use, Go/no-go judgment, etc.), execution of calibration, positioning of a workpiece to measure, etc.

Features

• WLI optical system can capture 3D data to perform 3D surface texture analysis and 3D roughness analysis. You can also perform dimension measurement and cross-section measurement at a specific height using the 3D data.
• The Point From Focus (PFF) function enables the 3D measurement with multi cross-section images. Scanning the object by auto focusing the objective lens can capture multiple cross-section images (image contrasts) at different heights. Thus obtaining 3D shape data from such images.
