Inspired by the rapid further development of microelectromechanical systems and MEMS, Polytec presents this highly innovative product line of microscope-based measurement systems.

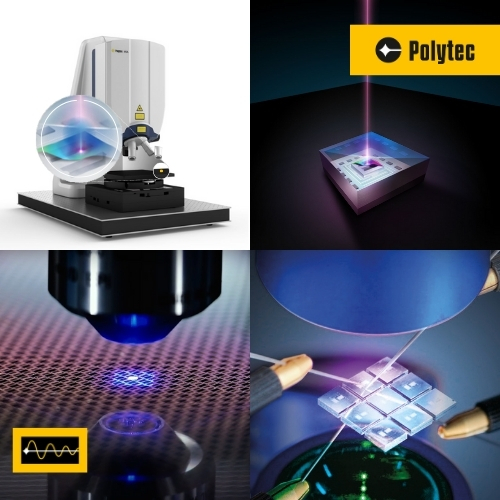

MSA Micro System Analyzers from Polytec validate dynamics and topography of microsystems reliably with utmost precision whether in the Kilohertz range, now for up to 8 GHz!

Determine transfer functions, use unique all-in-one instruments for both the static and dynamic 3D characterization of microsystems, measure and see through Si encapsulations and integrate your test-setup into (vacuum) probe stations.

Highlights

• IR capability to measure MEMS dynamics through different layers of Si-capped devices
• Real-time out-of-plane response measurement up to 8 GHz (w/o post-processing)
• Sub-picometer out-of-plane displacement resolution
• Straighforward FE model validation of MEMS in final state
• Superior separation of the individual device layers
• Stroboscopic video microscope to measure in-plane motion up to 2.5 MHz
• Automated system that integrates well for production (probe station compatibility)
• Import / export options for FE model validation

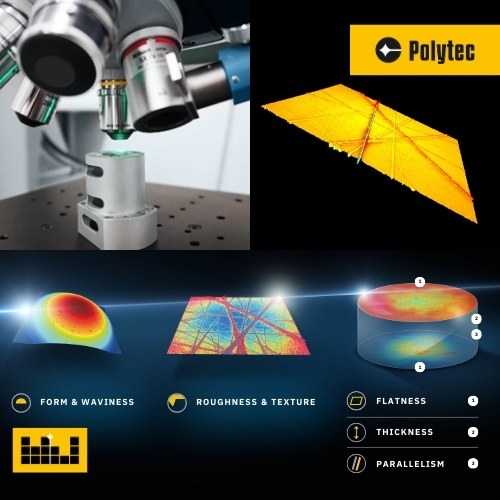

With an extended 100 mm Z measurement range and the CST Continuous Scanning Technology, Micro.View measures complex topographies at nm resolution. This convenient table-top setup features integrated electronics, with the smart focus finder simplifying and speeding up the measurement procedure.

Highlights

• Measure surface finish in a compact setup
• Non-contact measurement of 3D topography, roughness and texture
• 100 mm z measurement range with CST Continuous Scanning Technology
• Excellent lateral resolution
• Choose from application-specific objectives

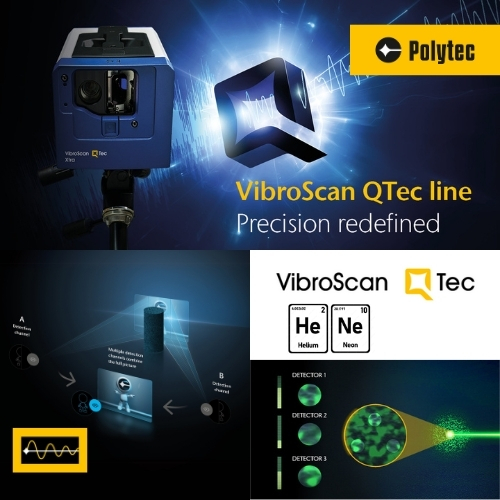

Polytec QTec® vibrometers are the fastest, easiest, and most accurate way to visualize vibration patterns at a single point or over an area, including full 3D objects. From your simplest to most complex vibration measurement tasks, there is a QTec® based sensor to get the job done. Gain access to a complete range of solutions, including testing services, equipment rentals, and flexible leasing options to meet your needs.

Reinventing vibrometry

The patented QTec® technology takes non-contact vibration measurements to an entirely new dimension.

• Measure on ANY surface with the highest signal-to-noise
• Significantly shorter test time
• Easily measure on dark or biological surfaces, distant objects, and objects in motion
• Cleanest results for operational vibration modes, modal analysis and troubleshooting in acoustics, structural dynamics, NVH, ultrasonics, FEM validation and non-destructive material testing
