Posalux SA

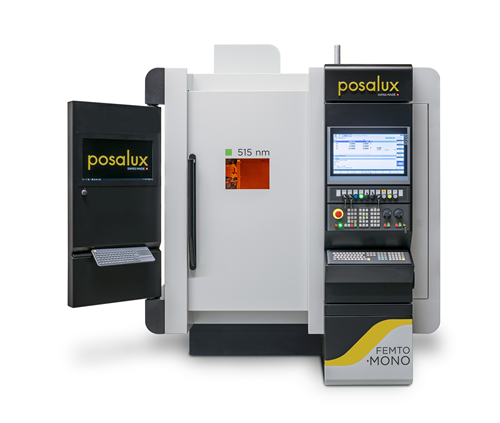

The most advanced laser solution in the market:

• High repetition rate and excellent beam quality
• Repeatability of hole quality
• Process accuracy ± 2 µm (± Metrology equipment error MPE_XY)
• Unequaled productivity with higher yield rate
• Flexibility (drilling, routing, and cutting)
• Wide range of materials (hard ceramics, polymers, copper, steel, and precious metal alloys, etc.)
• No thermal effects (NAZ)
• Round, square, rectangular, and any other hole shape capability
• Straight, tapered, and tilted holes
• Minimum diameters ≤ 20 μm with tight hole pitch (wall thickness ≤ 10 μm)

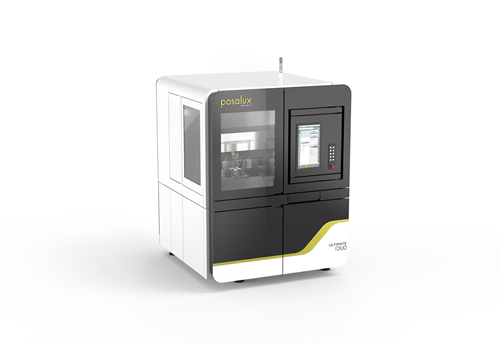

ULTIMATE DUO is the answer to many customer requests for a highly productive machining solution for micro components. The miniaturization concept of the ULTIMATE DUO allows to integrate up to two 4-axis machining centers or milling centers into one modular work-cell. Based on mechanical micromachining technology, the fully automated ULTIMATE DUO machine is designed with the focus on small parts (max. part size 80 x 80 x 10 mm).

Our brand new ULTIMATE DUO is capable of drilling, routing, milling, and cutting small parts with the highest precision by working simultaneously on both sides of a workpiece. With high stiffness, dynamic responsiveness, and accuracy, the ULTIMATE DUO solution not only boosts productivity and reduces floor space but also consumes low power, making it an ideal Industry 4.0 oriented solution.
