Overview

① Ultra High Purity Gas Pressure Regulator EX-M Series and Gas Supply System

EX-Mシリーズおよびガス供給システム

Applications

• Ultra high purity gas and mixed gas supply systems

• Gas systems requiring ultra-cleanliness and ultra-high purity

Features

• Ultra-tight structure with an external leak rate of 5×10⁻¹¹ Pa·m³/sec or less

• Ultra-clean finish that minimizes particles

• Pressure gauges (Clean M) with ultra-clean treatment used

• All gas-contacting parts are processed with EP (electropolishing, including VCR fittings)

• All connection parts are made with butt-welded structures

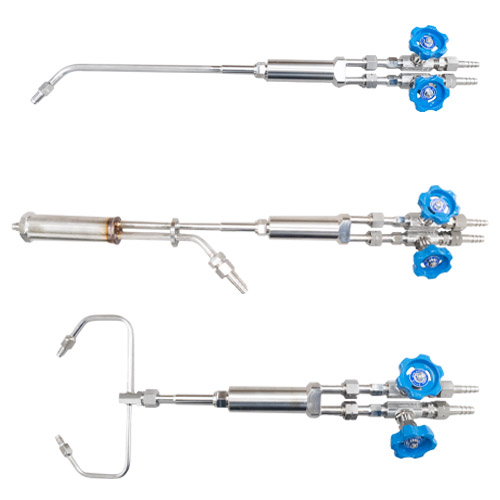

② Stainless Steel Hydrogen Gas Burner

Applications

• Welding / Heating operations

Specifications

• Fluid: Hydrogen + Oxygen

• Material: SUS316L (Burner body and nozzle)

• Other: Gas flow control valve included

Features

• When using hydrogen + oxygen (mixed gas) for welding or heating, the flame temperature at the nozzle tip can reach approximately 2800°C. If the nozzle or burner is made of brass (copper), metal ions or impurities from copper may attach to the workpiece surface.

• By using stainless steel (specifically SUS316L, which is more resistant to corrosion) for both the burner and the nozzle, these disadvantages are avoided, helping to maintain the workpiece quality at a high purity level.

• The blowpipe body can be gripped by a robot for automatic heating operations (Note: the robot itself is outside the scope of manufacturing).

• Water-cooled:
  Water circulates within the burner head to prevent overheating during prolonged welding/heating operations and protects the nozzle from radiant heat. This also reduces the risk of backfire and enhances safety.

• Y-type:
  Used when simultaneous heating of two parts, such as silver brazing areas, is required to improve work efficiency. The length and angle of the Y-shaped rod can be custom-made to fit the workpiece.
