AEM is a global leader in test innovation. We provide the most comprehensive semiconductor and electronics test solutions in wafer/chip handling, process automation and mixed-signal testing through our innovative test solutions. Along with our development in optoelectronics and software development in data analytics and machine learning, we set ourselves to redefine test through our Test Cell Solutions Business and Instrumentation Business.

Test Cell Solutions:

•        System Level Test Handlers

•        Final Test Handlers

•        Multi-Purpose Probers

•        High Power Active Thermal Control

•        Test Interface Boards, Change Kits and Sockets

Instrumentation Solutions:

•        Mixed Signal ATE

•        Test & Measurement Instruments

Beyond our leading-edge test innovation, we take pride in building strong partnerships with our customers and catering to the demands of an ever-evolving advanced manufacturing landscape.

AEM’s HQ is in Singapore and has a global presence across Asia, Europe, and the United States. AEM has manufacturing plants located in Singapore, Malaysia, Indonesia, China, Vietnam, Korea and Finland, and a global network of engineering support, sales offices, associates, and distributors, we offer our customers a robust and resilient ecosystem of test innovation and support.


  Products

  • AMPS Series
    AMPS Series is AEM’s flagship fully automated, slot-based test platform for next-gen devices, including AI and HPC. Integrating high-power instrumentation, Factory 4.0, and PiXL™ thermal management, it delivers top accuracy and lower test costs....

  • AMPS-High Parallel Test Cell Series is a high-power, high-throughput automated high-parallel test system designed for advanced semiconductor devices. Powered by AEM’s patented PiXLTM intelligent thermal management technology, AMPS series delivers precise, scalable thermal control for the most demanding test environments.

    Key benefits:

    Fully automated modular system – Capable of simultaneous high voltage stress testing of hundreds of devices in parallel.
    Patented Multi-zone Intelligent Thermal Control (ITC). Scalable to >2KW per device, with precision control for thermal stability during test.
    Purpose-built test instrumentation – Optimized to deliver higher device yield and shorter test times.
    Individual device test control and instrumentation allow for asynchronous operation, pattern changing on the fly, and high system utilization.

    PiXLTM – Ensures thermal accuracy and stability for high-power devices, improving test reliability, yield, and throughput.

    Know more about AMPS:
    https://aem.com.sg/solutions/burn-in-solutions/

  • CWP
    CWP, The Cryogenic Wafer Prober...

  • CWP is a unique system for wafer-level testing of cryogenic quantum devices, electronics, and detectors. As a probing solution for up to 12” wafers, it enables testing in sub-2K temperatures. The system provides a means for fast sample characterization with a throughput up to 100 times faster than commonly used cryogenic chambers as well as the possibility for volume probing of entire 300mm wafers.

    Together with Afore’s low-temp probe cards our unique active alignment system allows users to locate and contact devices automatically anywhere on the wafer.

    A modern and intuitive user interface provides direct control and full overview. The 4 servo-controlled axes of the probe station can be switched off during measurements to minimize electronic noise and the load lock system allows fast wafer to change in cryogenic temperatures.

    The CWP was developed as a cooperation between Afore and Bluefors, the Finnish company for “dry” cryogenic cooling.

    Know more about CWP:
    https://aem.com.sg/solutions/wafer-test-solution/products/#CWP-HE
  • ATOM-IC Handler
    ATOM-IC Handler is a benchtop handler designed for use on engineering test floors and in development operations. Its innovative design allows for maximum flexibility and minimum cost and maintenance....

  • ATOM-IC Handler, the small footprint fits easily on a test bench or over any ATE tester with a custom roll cart designed and built to fit your tester. With its simple and reliable configuration, accuracy and repeatability are optimized.

    Key benefits:

    • Lightweight, compact and versatile
    • Cost effective and lower overhead costs
    • Replaces Hand Test
    • Extremely Accurate Active Thermal Control to perform tri temp testing and device characterization
    • Benchtop and ATE Support
    • Highly customizable and configurable to any test setup
    • Easy to use computer interface
    Know more about ATOM-IC Handler:
    https://aem.com.sg/packaged-level-atom-ic-handler/
  • NESTEK SOCKETS
    NESTEK's SOCKET is a high signal integrity, high pin count, high power, high frequency tand high thermal test interface medium between TESTER and DUT for various types of packages (BGA, LGA, QFN, QFP, CSP, TSOP, SOP, etc.)....

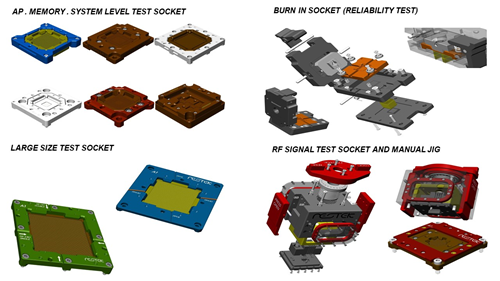

  • NESTEK SOCKET is used together with NESTEK PIN as an interface of TEST and is a device to inspect electrical defects, characteristics, and functions. It is a product widely used not only for a comprehensive solution for logic tests such as various PoPs and multi-para test sockets, but also for inspection/testing of HPC, Logic, PMIC, RF, MEMORY, camera modules, and display modules.
  • NESTEK PIN
    NESTEK PIN is a medium for inspection/testing of semiconductor IC and electronic module....

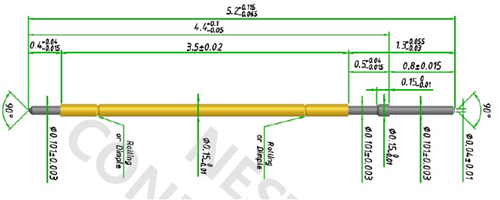

  • NESTEK PIN can be produced with barrel outer diameter of ø0.15~7.0 and length of 1.5~93.0mm.

    It is used for O/S (Open, Short) test, function test, and SLT test of various semiconductor packages including BGA, LGA, QFN, QFP, as well as various types of inspection of various camera modules and display modules.
