The coaxial structure socket can bring excellent high-frequency characteristics that are achieved through impedance matching. This socket has coaxial structure that can respond to the demand for operating characteristics exceeding the 80GHz band that can transmit without breaking the impedance Zo = 50 Ω from the board contact end to the IC terminal contact end. This dramatically improves the pass characteristics, reflection characteristics, and crosstalk characteristics of each terminal. IC sockets can support a minimum 0.5mm pitch matrix, and we can design sockets with a complete coaxial structure according to the LSI signal, power supply, and GND terminal arrangements.

The super short probe is a low-profile probe with MIN 0.5mm test height. Its short length is possible to have excellent electrical characteristics and can be used for high-speed transmission in the millimeter wave band even if it does not have a coaxial structure. The spring probe configuration has high durability more than 200,000 cycles, and can be used in high and low temperature environments. It is ideal for replacing conductive rubber socket (Elastomer contacts).

【Features】

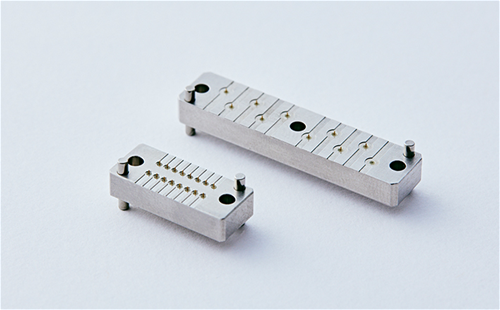

It is ideal for RF signal connection of Massive MIMO technology, array antenna module connection, and multi-channel mm wave connection between boards.
It is possible to customize the number of RF signal channels, interposer shape, etc.
In addition, probe length (0.9mm) is super short, so it has superior signal integrity and is ideal for high-frequency transmission.
We offer two types of base materials such as engineering plastic base which has a non-coaxial structure and impedance matching, and metal base which is suitable for reducing crosstalk between channels.

【Features】

This is an optimal socket for evaluating and verifying high-frequency SoC devices and high-end FPGAs equipped with multiple high-speed interfaces.
For multiple interfaces such as 56Gbps / 112Gbps PAM4 / PCIe gen5 / 6, impedance matching suitable for each interface is performed, so verification and evaluation that maximizes device performance is possible.

【Features】

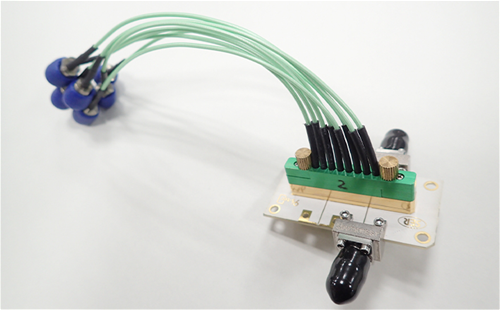

KTC Multi-Channel Coaxial Connector Cable is ideal for high-speed signal transmission with solderless compression mount on the board. It can support millimeter wave band width, and high-density multichannel down to 1.60mm.

【Features】

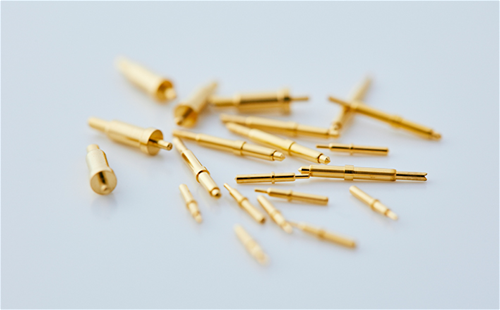

Hirose SER's spring probes can support high-fine pitch and high-pin count devices, it is solderless (no soldering required) contact solutions.
This is the best contact for various products such as semiconductors, electronic components, product PCB, connectors, IC sockets, and board-to-board connectors.
Our standard lineup includes the MS series, which is single ended probe lines, and the MD series which is double ended probe lines. We can provide with various customization such as total length, outer diameter, tip shape, material, surface finish, spring force, etc. are also possible according to customer's request.
