Goetze Valves NA Inc

Fort Mill,  SC
United States
https://www.goetze-group.com/en-us/home
  • Booth: 1245

  Press Releases

  • PRODUCTION PROCESS:

    Receipt of your enquiry followed by a check by our sales department whether the available sealing materials and lubricants are suitable for the pressures and temperatures you require in your application.

    Cleaning of the individual parts with specific solvents and ultrasound. Packing of the individual parts in closed transport boxes.

    The assembly, testing, packaging and labelling of the valves is carried out at our own assembly stations, in accordance with the limit values:

    • Limit value for hydrocarbon impurities: ≤ 100 mg/m2

    • Limit value for particle impurities: ≤ 100 µm

  • Five worldwide approvals for high-pressure safety valves in the 492 series

    Our high-pressure safety valves in the 492 series set new standards with five approvals worldwide, including four component approvals and one registration (CRN) for pressure ranges up to 1500 bar / 21755 psi.

    • European Pressure Equipment Directive
    • ASME certification for the USA
    • TS certificate for China
    • KGS approval for Korea
    • CRN registration for Canada

    🌍 Globally recognised, used locally
    The 492 series crosses borders - with approvals in key markets such as Europe, the USA, China, Korea and Canada. This diversity enables our customers to use our safety valves in systems requiring monitoring anywhere in the world, safe in the knowledge that they meet the highest safety and performance standards.

    💡 Unrivalled safety and performance
    GOETZE is the only manufacturer in the world to offer safety valves with component approvals for pressure ranges above 1000 bar / 14503psi. This emphasises our commitment to quality, safety and technical precision.

    🔧 Technical excellence, applied globally
    The approval of the 492 series not only signals technical reliability, but also compliance with comprehensive regulatory standards. This ensures that high-pressure applications can be equipped safely and in accordance with the respective country-specific regulations.

    With the worldwide approvals of the Series 492, Goetze KG Armaturen demonstrates its leadership in developing valve solutions that fulfil both the technical and safety needs of our global customers.

  • Powerful in use – flexible in application

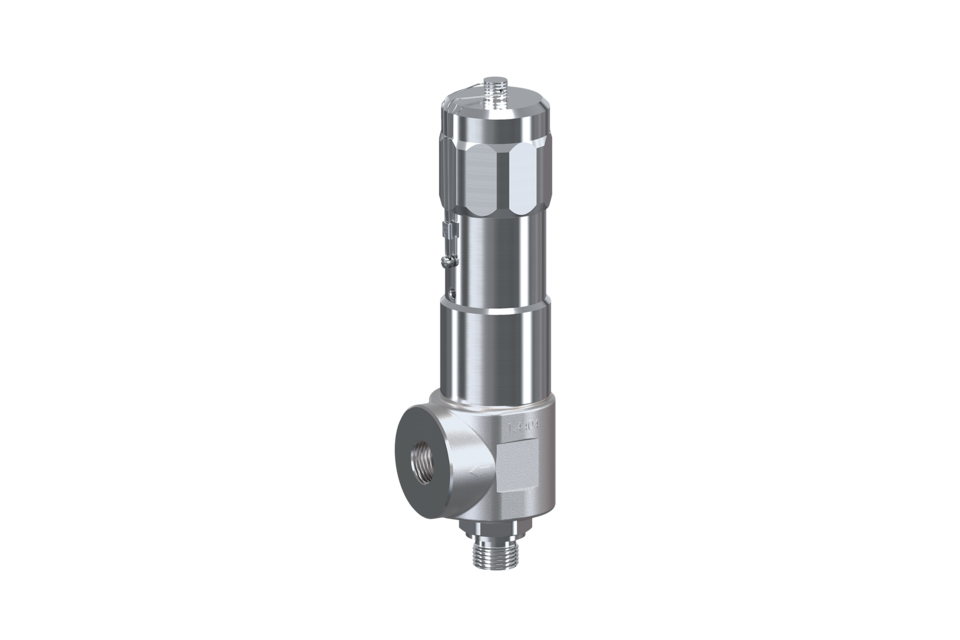

    Our new high-pressure overflow valves in the 493 series – built for big challenges, designed for maximum flexibility.

    With the 493 series, we are expanding our product portfolio to include two high-performance high-pressure overflow valves that meet the increasing demands of modern industrial applications. The series includes two different designs – Design I and Design III – that are specifically tailored to various installation situations, pressure ranges and operating conditions. Whether in hydrogen compression, pump protection or gas liquefaction – the 493 series is the optimal solution for demanding high-pressure applications.

    Two designs, one goal: safe and efficient high-pressure operation

    Design I – Compact, lightweight and flexible for confined installation spaces

    The compact design of design I saves space during installation. This design is the ideal choice for systems with limited space.

    Technical features:

    • Pressure range: 725 to 7252 psi
    • Nominal diameters: DN8 – DN10
    • Temperature range: -320 °F to +392 °F
    • Opening characteristic: proportional
    • Rotatable angle housing for flexible installation
    • Adjustable from the outside for easy pressure adjustment

    Why the 493 series? – Your advantages at a glance

    • For pressure ranges up to 14504 psi
    • Flexible installation and easy pressure adjustment: Both designs can be adjusted externally
    • Wide range of applications: Suitable for use with liquids, gases, vapours and – depending on the seal material – steam
    • High-quality materials: For use in demanding and corrosive environments
    • Proportional opening characteristic for precise pressure control and stable system conditions

  Products

  • High Pressure Safety Relief Valves

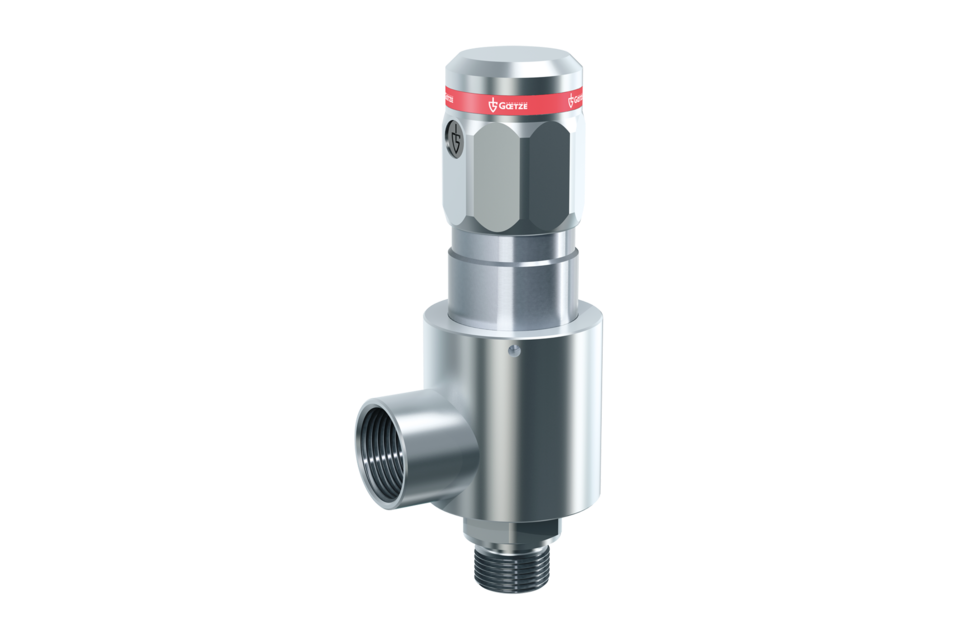

    The Goetze Series 492 is a stainless-steel high-pressure safety valve designed to protect pressure vessels and systems handling gases, including hydrogen applications. With pressure settings up to 1,500 bar, multiple connection options, and approvals including ASME, TÜV, CRN, and DNV, it is well suited for demanding high-pressure applications.

    ...

  • High Pressure Safety Relief Valves Series 492

    For the protection of: - pressure tanks and - pressure systems for air and other neutral and non-neutral gases. Please observe plant-specific regulations and use of appropriate valve version and sealing material. • high-pressure compressors • pressure tanks • pressure cylinder pack • CNG-applications • Hydrogen application

    ...

  • Overflow and Pressure Control Valves Series 493 High Pressure

    For the protection of: - Overload protection of pumps in closed circuits for neutral/non-neutral, non-sticking liquids For control in: - Pressure systems for neutral/non-neutral gases and vapours and – depending on the seal – also for steam • Pressure systems for technical gases such as hydrogen • test rig construction • mechanical engineering and process equipment construction • shipbuilding industry and marine equipment • secondary areas in the food-, beverage-, pharmaceutical- and cosmetics-industries

    ...
