Toray Precision Co., Ltd. is a trusted partner specializing in ultra-precision microfabrication and contract processing.

Our expertise covers a wide range of components and products, including:

  • Apertures and other electron beam-related parts

  • Specialized nozzles such as dispenser nozzles

  • Vacuum chuck stages for multilayer ceramic capacitors

  • Vibration-free parts feeders that transport electronic components while minimizing scratches

  • Molds for flat panel light guide plates

  • Metal 3D printing services

Through contract processing, we deliver high-precision components, molds, and finished products for diverse applications.

In addition, we offer one-stop services that include surface treatment and precision cleaning for vacuum applications, as well as inspection and packaging in cleanroom environments. Our customers can directly install our products into their systems immediately after delivery.

With over 60 years of experience manufacturing spinning nozzles—key devices in Toray’s synthetic fiber production—we have continuously refined our precision microfabrication technologies. Leveraging this expertise, we supply numerous precision components that are essential to semiconductor manufacturing and inspection equipment.

Our booth is especially recommended for those who:

  • Are considering special specifications to enhance semiconductor performance

  • Are struggling with the procurement of parts that are difficult to process

  • Are seeking a manufacturing partner who can provide one-stop solutions with the highest precision

Please feel free to stop by our booth and discuss your needs with us.
We look forward to meeting you!


 Press Releases

  • (20251014)
  • (20251014)
  • (20251014)

 Products

  • High-Precision Vacuum Chuck

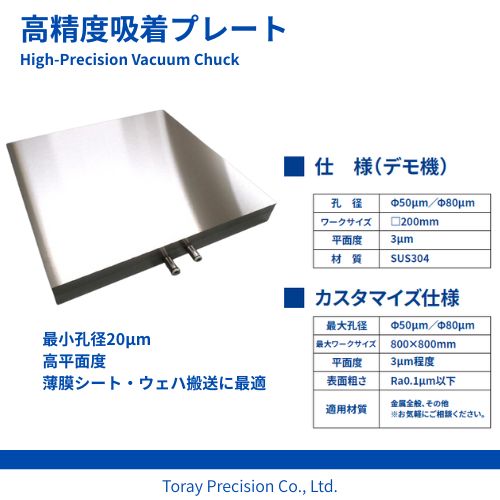

    A precision metal vacuum chuck featuring φ20µm micro-holes and high flatness. It minimizes warpage and suction marks of thin films and wafers, ensuring stable handling in semiconductor processes....

  • Specifications (Demo Model)

    • Hole Diameter: φ50µm / φ80µm

    • Workpiece Size: 200mm square

    • Flatness: 3µm

    • Material: SUS304


      Customizable Specifications

    • Max. Hole Diameter: φ50µm / φ80µm

    • Max. Workpiece Size: 800 × 800mm

    • Flatness: Approx. 3µm

    • Surface Roughness: Ra 0.1µm or less

    • Applicable Materials: Various metals (Please contact us for details.)


      Features

    • Precise Micro-Holes Down to φ20µm

    • Ultra-Flat Surface

    • Suitable for Thin Films and Wafer Transfer

  • High-Precision Aperture

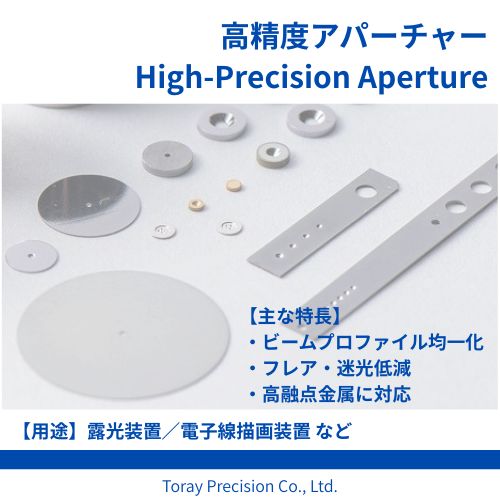

    High-precision apertures for lithography and electron beam systems. Precisely machined openings help shape the beam, improve uniformity, and reduce flare and stray light. Compatible with Mo, Ta, and W materials....

  • Our precision apertures are beam-shaping components for lithography and electron beam systems.
    We provide highly accurate circular holes, slits, and complex opening patterns that help improve beam uniformity and reduce flare and stray light.

    Available materials include high-melting-point metals such as molybdenum (Mo), tantalum (Ta), and tungsten (W), ensuring stable performance under high thermal load conditions.
    Aperture size, shape, and layout can be fully customized to meet your system requirements and target beam profile. Please contact us for tailored designs.

  • Precision Molding Tooling

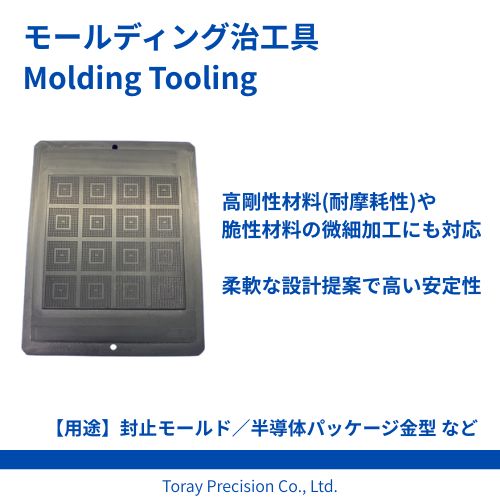

    Precision molding dies and tooling for semiconductor package encapsulation. High-accuracy cavity geometry, flatness, and fine pins/grooves help improve package appearance and yield. Compatible with QFN, BGA, and various package types....

  • Our molding tooling is used in semiconductor package encapsulation processes, where it directly affects package geometry and visual quality.
    We manufacture precision molds with tightly controlled cavity geometry, flatness, and surface roughness, helping reduce warpage, flash, and short shots.

    We can machine fine pins and narrow-pitch grooves for advanced package designs such as QFN, BGA, and LGA.
    Material selection and surface treatments (coatings) can be proposed according to your operating conditions and lifetime requirements.

  • Metal 3D Cooling Parts

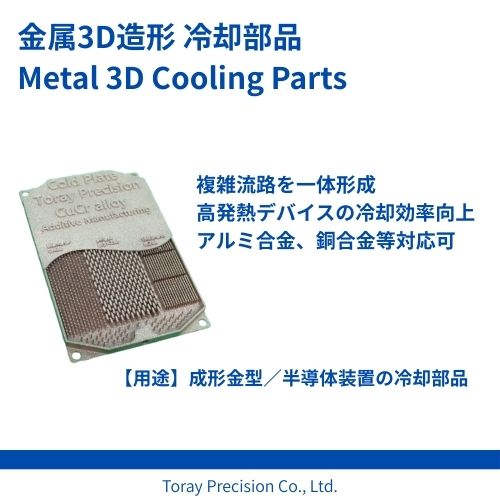

    Hybrid processing that combines metal 3D printing with machining and grinding to produce parts with integrated internal cooling channels. Conformal cooling improves temperature uniformity and shortens cycle time in molding and semiconductor equipment....

  • We offer metal 3D printed cooling parts produced by combining additive manufacturing (such as powder bed fusion) with high-precision machining and grinding.
    By integrating internal cooling channels and realizing conformal cooling that follows the contour of the molding surface, these parts help equalize temperature distribution and shorten cycle times.

    Critical surfaces are finished by 5-axis machining and grinding to achieve the required dimensional accuracy, flatness, and surface roughness, ensuring reliable integration into actual tools and equipment.
    These cooling components are suitable for injection molds, semiconductor manufacturing equipment, and power devices where efficient heat removal is essential.

  • Ultra-Precision Mirror Finishing

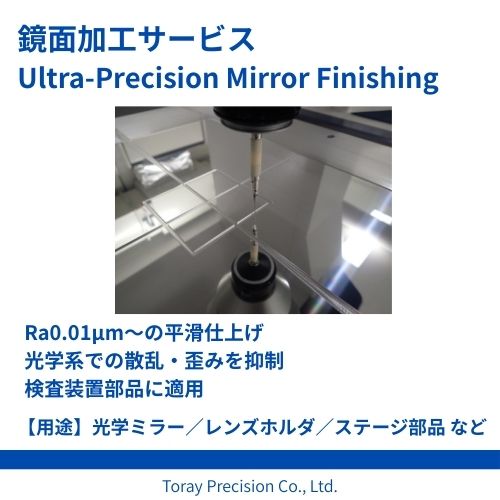

    Mirror finishing service for optical and stage components. Ultra-precision grinding, lapping, and polishing achieve nanometer-level surface roughness with excellent form accuracy, improving performance of reflective and scanning surfaces....

  • Our mirror finishing service combines ultra-precision grinding, lapping, and polishing to produce high-quality surfaces required for optical mirrors and stage components.
    We aim for nanometer-level surface roughness while maintaining excellent form accuracy and flatness, helping reduce scattering on reflective surfaces and improve stability on scanning surfaces.

    We can process various metals and selected ceramic or hard-brittle materials.
    Optimal process conditions are proposed according to your workpiece size and required specifications. Please contact us when you need high-precision surfaces for optical, metrology, or semiconductor-related components.
