ASP provides high-precision cutting tools and laser systems.

Overview

Introducing Global Top Brands
Established in 2002, Asp Group initially represented the Universal Laser System from the USA, providing laser engraving and cutting machines to the model-making industry that previously relied on manual cutting. We also represented Japan's AXISMATERIA, supplying ultra-hard alloy materials for PCB micro drill bits. As we progressed, we identified market needs and expanded our representation to include Sumitomo Electric's cutting tools, Sinfonia servo motors, ATOM's ultra-hard cutting drills, and YUKIWA fixtures. Our reach now extends across various fields, including aerospace, semiconductors, electronics, machinery manufacturing, automotive, medical, education, and creative industries.

Professional Technical Team
 Asp Group boasts a professional team specializing in laser technology applications and after-sales services, earning high praise from numerous clients over the past two decades. In the cutting tools sector, we have a team of processing technology consultants from Japan, and in the ultra-hard alloy field, we offer material analysis through our laboratory. Our accumulated technology, strength, and reputation form the foundation of our ability to continuously provide excellent services to our customers.

Exceeding Your Expectations
"Becoming an indispensable friend to our customers and cultivating more outstanding talents" is our business philosophy.

Since 2002, we have been dedicated to helping customers solve production problems, providing professional assessments for various industries, and offering comprehensive after-sales services. We continue to deliver solutions to over 1,000 users, successfully addressing various production technology challenges.


  Press Releases

  • With the new round of AI craze set off by big models such as NVIDIA, ChatGPT, and DeepSeek, chips are becoming more and more the focus of public attention. The rapid development of artificial intelligence, 5G communications, high-performance computing and other fields cannot be separated from the support of high-end chip manufacturing.

    ATOM-Semiconductor

    As chip packaging types become more and more complex, chip testing has become an important part of chip production to ensure the yield rate of chips. As a key fixture in the chip testing process, the chip test socket has been increasingly valued by the industry, especially in this era of shrinking chip size and increasing signal transmission speed, pushing products towards a more stable and reliable direction. Therefore, the successful launch of each chip is inseparable from the chip test socket (IC Socket)!

    Socket material micro-hole processing, a new blue ocean for the semiconductor industry

    According to the analysis of the research organization Yole Group, the global semiconductor test socket market covers categories such as package test, system level test, and engineering test. The market size is estimated to grow from US$1.193 billion in 2024 to US$1.55 billion in 2029, with a compound annual growth rate of 5.4% during the period.

    ATOM-Semiconductor

    The principle of the chip test socket is to use micro-holes to physically limit the needle body, ensuring that each pin maintains a consistent contact angle and position within a very small tolerance range, thereby avoiding signal interference, poor contact and other problems. For this reason, the micro-holes on the test socket not only directly determine the electrical performance and service life of the test socket, but also are the basic process core for achieving high-speed, high-density stable chip testing.

    At present, the commonly used materials for chip test sockets (Sockets) are engineering plastics and machinable ceramics, which have high strength and high hardness characteristics and are difficult to process. In addition, the diameter of the micro-holes is usually between tens and hundreds of microns, and μ-level precision control is required, taking into account verticality and finish to ensure that the spring pins are accurately guided and the contact is stable.

    To cope with the extreme micro-hole processing of socket materials, two series of ATOM are launched

    How to achieve the ultimate micro-hole processing requirements of socket materials? Japan's ATOM , an expert in micro-diameter drills , has launched two high-performance series of products specifically for the challenges of micro-hole processing in chip packaging testing , helping semiconductor-related fields to efficiently break through the challenges of micro-hole processing!

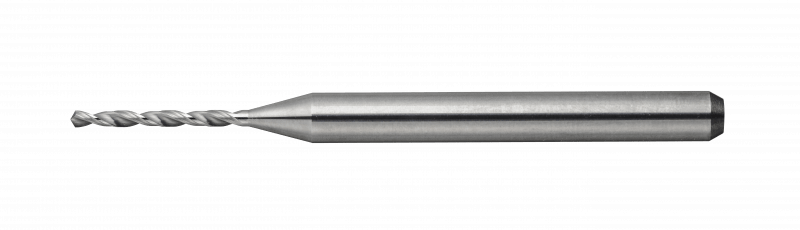

    1. ADR standard series drill bits

    ATOM Drill Bit-ADR

    The minimum diameter of the ADR series can reach Ø0.02mm , and the diameter tolerance is less than −0.005mm . It is suitable for processing tiny holes in materials such as steel, non-ferrous metals and resins.

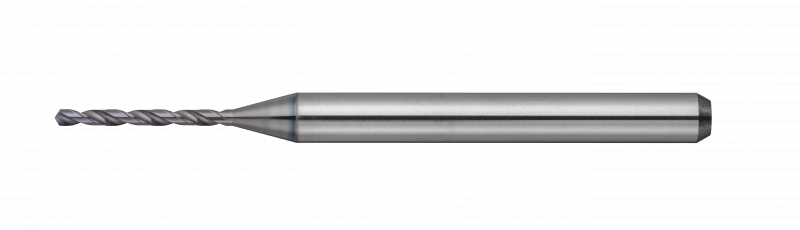

    2. ADR-SV standard coating series drill bits

    ATOM Drill Bit-ADR-SV

    ADR-SV series drills use wear-resistant FCS coating and are suitable for micro-hole processing in soft steel and high-hardness steel (HRC50). This series is designed with a wider chip groove and polished cutting edge, which greatly improves chip removal and processing quality , effectively extending the service life of the drill.

    After repeated tests and extensive market verification, the two series of drill types have excellent performance in the actual processing of micro-holes in socket materials , and are therefore widely praised by the market:

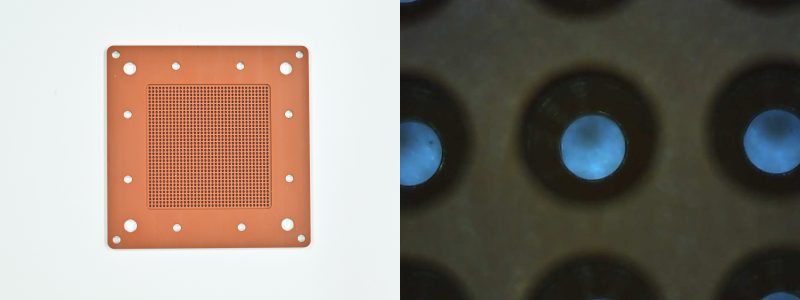

    1. Engineering- plastics

    ATOM drill bit-micro hole processing of engineering plastic substrate

    ATOM micro-drilling test: Micro-hole processing effect of 0.09mm thick engineering plastic substrate

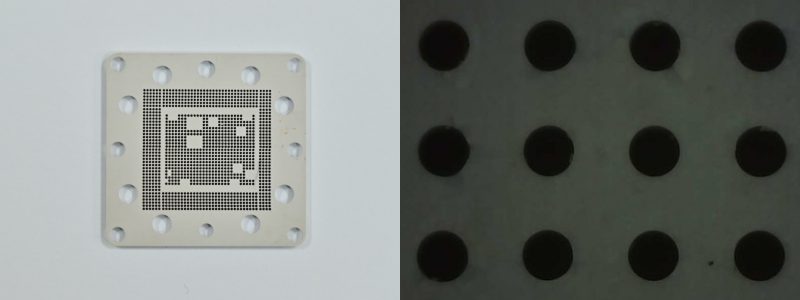

    2. Machinable Glass Ceramic

    ATOM drill bit - can process micro-holes on ceramic substrates

    ATOM micro-drilling test: Micro-hole processing effect of machinable ceramic substrate

    In addition to being widely used on chip test sockets made of different materials, the two drill types are also suitable for a variety of high-performance materials such as ceramic plastics, single crystal silicon, and aluminum , and have important application value in high-precision structure manufacturing and electronic component processing.

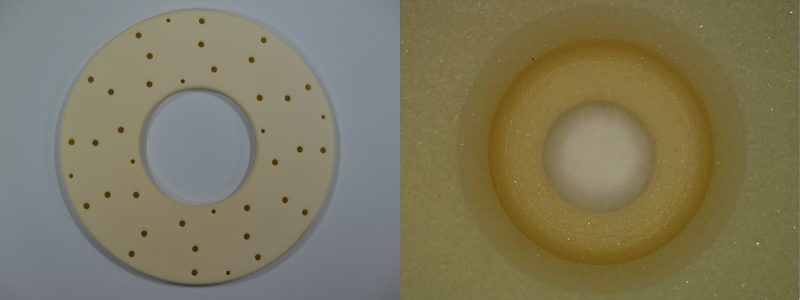

    3. Ceramic plastic

    ATOM Drill Bits-Ceramic Plastic Processing

    ATOM micro-drilling test: 1.71mm thick ceramic plastic processing effect

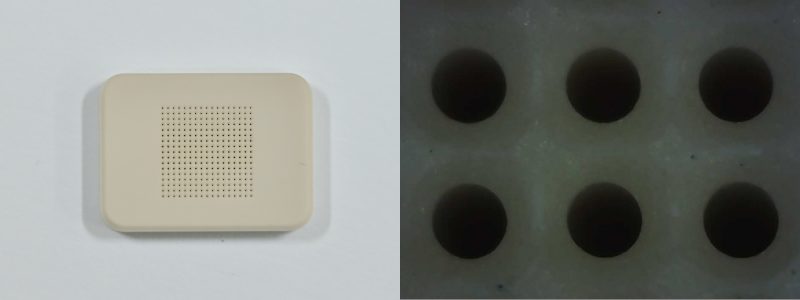

    4. Single crystal silicon

     ATOM drill bit-single crystal silicon material processing

    ATOM micro-drilling test: Drilling effect of 1.68mm thick single crystal silicon material

    5. Aluminum

     ATOM drill bit-aluminum micro hole processing

    ATOM micro-drilling test: Aluminum micro-hole processing effect

    Advanced coating, chip removal design, and strong carbide substrate make the ADR and ADR-SV series have unparalleled processing quality and efficiency when processing micro-holes in metals, non-metals, ceramic materials, engineering plastics, etc. After repeated testing, under the same working conditions, its cutting life is more than 80% higher than similar products on the market , making it an ideal choice for micro-hole processing such as chip test sockets!

    See more drill bits: https://asun-photonics.com/product-category/atom/

    ASP Group: Using world-leading technology to help upgrade precision hole processing

    Yuewei Technology-ATOM Drill Bit

    ASP Group is the general agent of the Japanese ATOM brand in Taiwan, focusing on the promotion and service of high-quality micro-diameter tools. Relying on the strong manufacturing and quality control capabilities of the original ATOM factory, as well as ASP Group's advantages in logistics supply and technical support, it can now provide a rich product line including standard drills ADR, standard coated drills ADR-SV, fixed-point drills NC, chip removal drills ASWR/ASW D, diamond-like coated drills ADR-DLC, same-shank diameter drills ADS and cross-groove series drills SXG, etc., to fully meet various high-precision micro-hole processing needs and help customers achieve dual improvements in processing quality and efficiency.

    1. Available from stock:

    ASP Group has a rich stock of spot stocks, which can support the spot supply of ADR standard drill series and ADR-SV standard coated drill series Ø0.02mm~ Ø1.0mm ( one standard every Ø0.01mm ).

    2. High-efficiency delivery:

    ASP Group has more than 20 years of experience in micro-hole processing technical services. It not only provides customers with professional demand analysis and application suggestions, but also relies on its strong supply chain advantages to help customers achieve spot delivery of standard drill bits within one week.

      Contact Us

    According to data from the Semiconductor Industry Association (SIA), global sales reached US$630.5 billion in 2024, a year-on-year increase of 19.1%, exceeding US$600 billion for the first time. The explosion in demand for AI chips and memory chips has become a key engine.

    ATOM-Semiconductor

    Nowadays, the demand for high-tech fields such as AI and robots has increased greatly. As the key to chip packaging and testing, the technical level of chip test socket micro-hole processing is directly related to the overall test accuracy and reliability. ASP Group looks forward to providing solid support for semiconductor high-end chip testing through continuous technological innovation and process breakthroughs, so that more precise and efficient micro-hole processing technology can accelerate the independent control of core technologies in the semiconductor field.

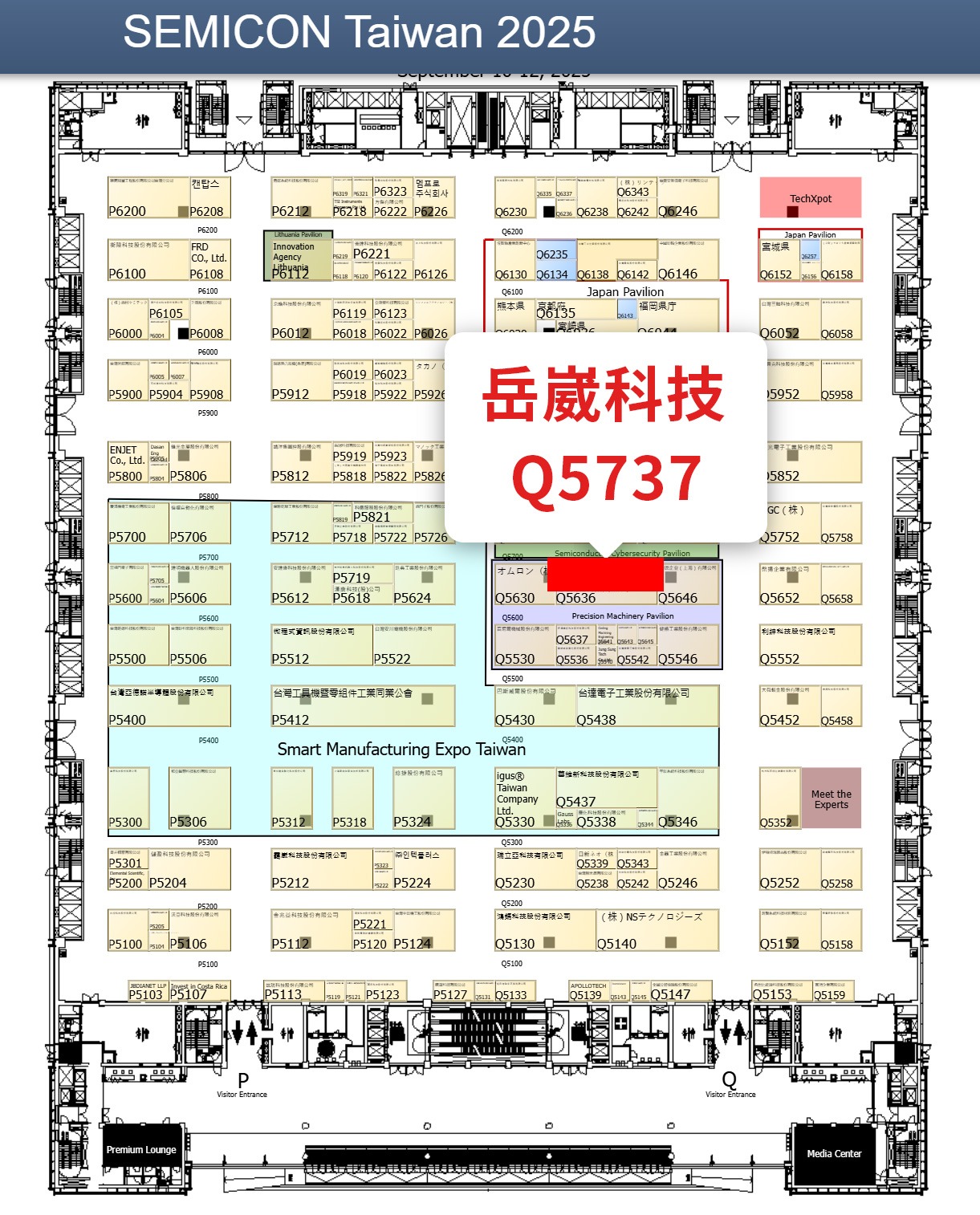

    【International Semiconductor Exhibition|SEMICON Taiwan 2025 Exhibition Information】

    Exhibition time: September 10, 2025 ~ September 12, 2025

    Exhibition location: 1F, Hall 2, Taipei Nangang Exhibition Center (No. 2, Jingmao 2nd Road, Nangang District, Taipei City)

    ASP Group Booth: Q5737

    Yuewei Technology-SEMICON TAIWAN 2025

    ASP Group sincerely invites you to visit SEMICON Taiwan 2025 !

    We sincerely invite you to visit booth Q5737 to experience the technological breakthrough of ATOM ultra-micro drill in precision machining and gain a deeper understanding of its application potential in semiconductor manufacturing.
    Let us explore the future of manufacturing technology and open a new chapter of high efficiency and high precision!

  • AXISMATERIA, a wholly-owned subsidiary of Sumitomo Electric Industries, Ltd. from Japan, will make a grand appearance at SEMICON Taiwan 2025 to showcase its high-quality cemented carbide materials and provide advanced solutions for high-precision cutting, wear-resistant and special processing tools required in semiconductor manufacturing. During the exhibition, AXISMATERIA will be at booth Q5737 on the first floor of Hall 2 of Nangang Exhibition Center to showcase key material technologies and professional application results.

    耐磨工具、零部件素材

    Sumitomo Group's technical support provides a full range of cemented carbide solutions

    AXISMATERIA is a 100% subsidiary of Sumitomo Electric Industries, Ltd. of Japan, focusing on the research and development and manufacturing of high-quality super-hard alloys. It not only provides internal tool materials for Sumitomo Group, but also widely supports global manufacturers of super-hard alloy tools, wear-resistant tools, mining tools, etc. At this exhibition, AXISMATERIA will exhibit a number of key application materials and processing examples targeting the high hardness, precision and high heat resistance requirements unique to the semiconductor industry.

    Carbide performance for advanced manufacturing:

    Carbide is mainly composed of tungsten carbide (WC) and cobalt (Co), and titanium carbide (TiC) or tantalum carbide (TaC) is added as required. It has excellent wear resistance, thermal stability and mechanical strength, and is particularly suitable for:

    ● Semiconductor component mold manufacturing
    ● High-speed, high-precision precision cutting tools
    ● Wear-resistant parts in semiconductor packaging and testing processes

    According to experimental data, compared with traditional tool steel, AXISMATERIA carbide has significantly improved in hardness (Hv: 15GPa), Young's modulus (E: 620GPa), thermal conductivity (κ: 80W/[m・K]), etc., effectively extending tool life and enhancing processing quality.

    Wide application of cemented carbide

    Due to its heat resistance, it is used in CNC lathes, cutting tool heads and molds on machining centers. Compared with the previous heat-treated steel tools, it has achieved a leap in speed and life, and its usage is increasing year by year.

    Products processed by cemented carbide tools are widely used in many processing fields such as molds, electronic equipment, automobiles, construction machinery engines, reducers, aircraft engines, bodies, generators, excavators, etc.

    Customized suggestions and material analysis support

    Faced with various workpieces, the corresponding different tool materials are all different. Choosing the right material helps to improve the life of the tool. If you want to use AXISMATERIA's materials, please provide the material of the workpiece to be processed, and our business personnel can select the most suitable material for you. Or we have a professional material analysis laboratory that can reverse analyze the material closest to us based on the existing materials for you to use.


    【Exhibition Information】
    Event Name: SEMICON Taiwan 2025
    Exhibition Time: September 10 (Wednesday) ~ September 12 (Friday) 2025
    Exhibition Location: Taipei Nangang Exhibition Center Hall 2, 1st Floor (No. 2, Jingmao 2nd Road, Nangang District, Taipei City)
    Booth Number: Q5737

    For more information about AXISMATERIA products, please visit: https://asun-photonics.com/product-category/axismateria/

  • As the demand for extremely high precision and durable tool materials in semiconductor and high-end mold processing continues to rise, ASP Group will heavily exhibit the Sumitomo Electric SUMIDIA Diamond Series at the 2025 Taiwan International Semiconductor Show: PCD tools NPD10 and DA1090 for turning and small-diameter boring tools DABX, fully demonstrating its R&D strength and market value in the field of diamond-grade processing.

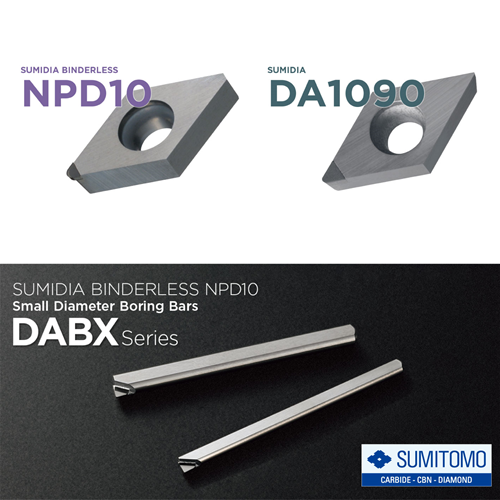

    住友 SUMIDIA™ 無結合劑鑽石NPD10

    SUMIDIA™ BINDERLESS NPD10:The ideal solution for extreme precision

    Designed for high-precision machining of ultra-hard materials, the NPD10 uses binder-free nano-polycrystalline diamond technology, combining ultra-high hardness with excellent wear resistance to accurately meet the challenges of micro-cutting of cemented carbide and brittle materials. Compared with traditional diamond tools, the NPD10 has a longer tool life and stable dimensional control, significantly reducing the number of tool changes and improving overall machining efficiency.

    住友SUMIDIA™ 鑽石DA1090

    SUMIDIA™  DA1090:Rough machining can also take into account both efficiency and precision

    For roughing applications under high load conditions, DA1090 adopts a coarse-grained polycrystalline structure and further strengthens the bonding force between particles, greatly improving wear resistance and fracture resistance. Even in the face of high-strength materials and heavy cutting requirements, DA1090 can still maintain a sharp edge and stable performance for a long time. With the optimized SUMIDIA NF insert, it not only maintains existing performance, but also brings excellent cost-effectiveness.

    住友SUMIDIA™ DABX無結合劑鑽石 小直徑鏜孔刀

    SUMIDIA™ DABX Small Diameter Boring Bars:The cutting substitution revolution of electrical discharge machining

    To solve the bottleneck of EDM efficiency and surface quality, Sumitomo launched DABX binder-free diamond small-diameter boring tool, which can meet the needs of extremely small inner diameter processing such as ø3.0mm and ø4.0mm. DABX is equipped with NPD10 cutting-edge material and high-rigidity blade, which can smoothly complete high-precision cutting of cemented carbide inner holes. By replacing EDM with cutting, the surface roughness is reduced from Rz7.0μm to Rz1.3μm, the processing efficiency is increased by 2.5 times, and the cost is reduced by about 25%, successfully achieving a key breakthrough in shortening the grinding process.

    Processing consultation

  • In the semiconductor manufacturing process, Shower Head is one of the common and important components in a plasma etcher (Plasma Etcher) or a chemical vapor deposition machine (CVD). Its name comes from its appearance and function similar to a shower head in a bathroom.

    ATOM微鑽在Shower Head(鋁合金材質)加工效果

    ATOM micro-drilling on Shower Head (aluminum alloy) processing effect

    Although it looks like a shower head, the price of a Shower Head is as high as over 400,000 yuan. The fundamental reason for its high cost is the extremely stringent processing requirements - there are thousands of micro-holes on the surface, which not only imposes extremely high standards on the accuracy and consistency of the hole diameter, but also places almost stringent requirements on the smoothness and flawlessness of the inner wall of the hole.

    Shower Head, a business opportunity but with strict process requirements

    According to Techcet's forecast, the global semiconductor Shower Head market size will be approximately US$2.5 billion in 2023, and is expected to grow to US$3.5 billion by 2028, with a compound annual growth rate (CAGR) of 6.9%. This is mainly due to the improvement of film deposition process requirements for advanced process chips (such as 3nm and below), and the demand for high-quality films due to the increase in the number of 3D NAND memory layers.

    The most widely used metal material in Shower Head is aluminum alloy, because it has good thermal conductivity and strong corrosion resistance. Non-metallic Shower Head materials include silicon carbide (CVD-SIC), single crystal silicon, quartz glass and high-purity ceramics.

    ATOM微鑽在Shower Head(鋁合金材質)加工效果

    Aluminum alloy Shower Head

    During the wafer reaction process, the surface of the gas diffusion plate is densely covered with micropores (pore diameter 0.2-6 mm). Special process gases need to pass through precisely designed pore structures and gas paths, and then be evenly deposited on the wafer surface after passing through thousands of small holes on the gas diffusion plate. The film layers in different areas of the wafer must ensure high uniformity and consistency.

    ATOM微鑽Shower Head加工效果(正、反面)

    ATOM micro-drilling Shower Head processing effect (front and back)

    Therefore, in addition to extremely high requirements for cleanliness and corrosion resistance, the gas diffusion plate also has strict requirements on the consistency of the aperture of the small holes and the burrs on the inner wall of the small holes. If the aperture size tolerance and consistency standard deviation are too large or there are burrs on any inner wall, it will cause the thickness of the deposited film layer to be inconsistent, which will directly affect the manufacturing yield of the equipment.

    ATOM, the expert in micro-diameter drills, challenges the micro-hole processing problem with extreme precision

    How to achieve the extreme micro-hole processing needs of Shower Head, a key component in the high-end semiconductor segment?

    ATOM, the expert in micro-diameter drills in Japan, has launched two high-performance series of products specifically for the extreme micro-hole processing challenges such as Shower Head (aluminum alloy), helping semiconductor-related fields to efficiently break through the micro-hole processing challenges!

    1. Fixed-point guided drilling NC: precise positioning, starting from the "hole"

    定點引導鑽NC

    Designed for high-precision, small-diameter guide holes (positioning), suitable for applications with extremely high hole position accuracy requirements.

    (1) Processing range Ø0.02mm~Ø3.0mm, meeting various micro-hole positioning needs.

    (2) Two drill point angles of 120° and 90° are available, taking into account both precise positioning and chamfering.

    (3) With 3.0mm and 3.175mm tool holders.

    (4) Suitable for materials such as steel, PEEK engineering plastics, non-ferrous metals and resins.

    (5) Fully one-piece molding of all-tungsten steel material, with TiAlN coating, HRA hardness of about 90, wear-resistant and stable.

    未使用ATOM定點鑽

           Without ATOM fixed-point drilling

    使用ATOM定點鑽加工效果

    Processing effect with ATOM fixed-point drilling

    It can be clearly seen from the above figure that without using the ATOM-NC fixed-point drill, obvious surface vibration and concentricity deviation occurred in the processing of the 1.6mm diameter; while with the ATOM fixed-point drill, the situation was significantly improved. Although it is just a small pre-positioning step, it is directly related to the stability and accuracy of subsequent micro-hole processing. Ignoring it may even cause the entire workpiece to be scrapped, resulting in unnecessary losses.


    2. Diamond-like coating drill bit DLC: wear-resistant blade protection, improved efficiency

    類鑽塗層鑽頭DLC:耐磨護刃,效率提升

    (1) The DLC Shine Coating technology is used, which has ultra-high hardness (sp³ value up to 60GPa), significantly extending the tool life.

    (2) The ultra-thin coating with low friction coefficient effectively prevents chip adhesion, reduces cutting resistance, and improves chip removal.

    (3) The minimum diameter is Ø0.1 to Ø1.0, with a standard specification every Ø0.01mm.

    (4) Suitable for non-ferrous metal materials such as aluminum alloy and copper.

    ATOM can also customize center-drill heads. You only need to tell us the hole diameter, depth, and workpiece material, and we will provide you with the most suitable solution! When used in Shower Head processing, ATOM micro-drilling can greatly improve chip removal efficiency and significantly improve the roughness of the hole wall to achieve a smoother processing surface.


    Shower Head 階段孔剖面照

    Shower Head 階段孔剖面照

    ATOM Micro-Drilling Shower Head Stage Hole Cross-Section

    After repeated verification, the two series of ATOM can maintain extremely low tool wear even in large-scale micro-hole processing with their excellent wear resistance and ultra-long tool life, ensuring high consistency of micro-hole diameter and excellent surface finish, fully meeting the stringent requirements of aluminum alloy Shower Head for ultimate processing quality.

    Learn more about drills :https://asun-photonics.com/product-category/atom/

    ASP Group: Using world-class technology to help upgrade precision hole processing

    ASP Group is the general agent of the Japanese ATOM brand in Taiwan, focusing on the promotion and service of high-quality micro-diameter tools. Relying on the strong manufacturing and quality control capabilities of the ATOM original factory, as well as ASP Group's advantages in logistics supply and technical support, it can now provide a rich product line including standard drills ADR, standard coated drills ADR-SV, fixed-point drills NC, chip removal drills ASWR/ASWD, diamond-like coated drills ADR-DLC, same-shank diameter drills ADS and cross-groove series drills SXG, etc., to fully meet various high-precision micro-hole processing needs and help customers achieve dual improvements in processing quality and efficiency.

    1. Spot supply:

    ASP Group has a rich stock of spot stocks, which can support the spot supply of ADR standard drill series and ADR-SV standard coated drill series Ø0.02mm~ Ø1.0mm (one standard specification for each Ø0.01mm).

    2. High-efficiency delivery:

    ASP Group has more than 20 years of experience in micro-hole processing technology services. It not only provides customers with professional demand analysis and application suggestions, but also relies on its strong supply chain advantages to help customers achieve spot delivery of standard drills within one week.

      Contact Us


    As semiconductor high-end manufacturing moves towards higher quality, the micro-hole processing quality of the Shower Head, as a key component, has become a key factor affecting the overall process yield.

    ATOM微鑽-突破Shower Head微孔加工難題

    ASP Group has teamed up with Japan's ATOM to use the ultimate micro-drilling technology to jointly provide the semiconductor industry with more stable and efficient micro-hole processing solutions. By continuously deepening the development of micro-diameter tool technology, it helps more advanced manufacturing scenarios achieve the leap from "machinability" to "excellent processing."

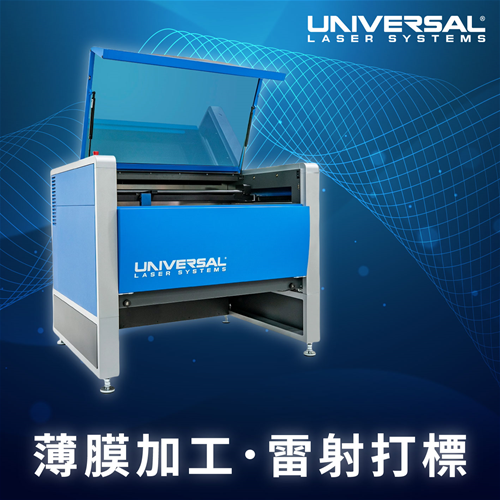

  • Universal Laser Systems (ULS), the world's leading brand of laser processing equipment, will grandly exhibit its flagship laser processing platform, the ULTRA series system, at the 2025 Taiwan International Semiconductor Exhibition (SEMICON Taiwan). The exhibition will be held on the 1st floor of Hall 2 of Taipei Nangang Exhibition Center from September 10th to 12th. ULS will have face-to-face exchanges with industry leaders at booth Q5737 to fully demonstrate the application results of laser technology.

    At this exhibition, ULTRA will bring unprecedented efficient processing experience with professional and innovative laser solutions. The ULTRA series integrates a number of exclusive technologies and is designed for high-end applications such as precision manufacturing, electronic packaging, and semiconductor processing. It is the ideal choice for the industry to achieve high-quality and high-efficiency processing.

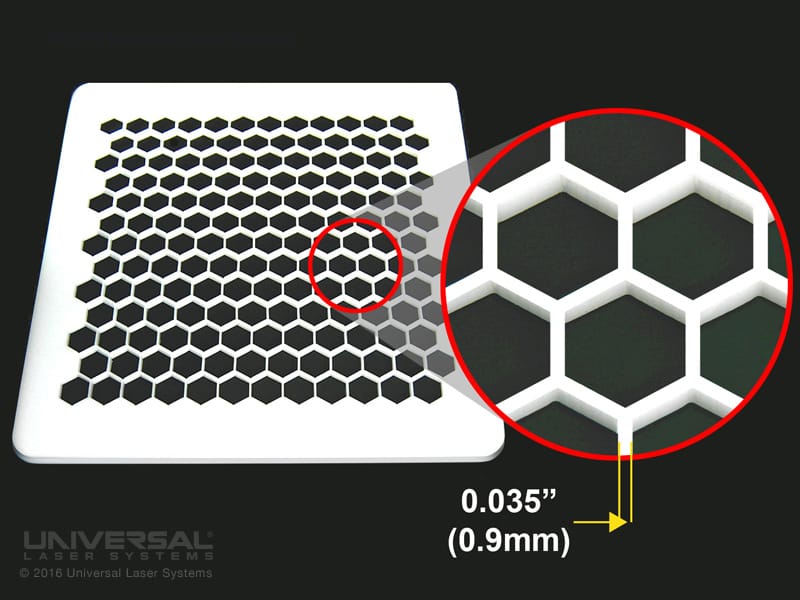

    採用10.6微米CO2雷射的壓克力塑膠雷射切割蜂巢圖案

    ULTRA has six major technical highlights that break through the limits of laser processing:


    1. MultiWave Hybrid™ Technology

    The world's exclusive technology enables the simultaneous execution of multiple wavelength beams, providing highly adaptable laser processing solutions for heterogeneous materials and complex components.

    2. SuperSpeed™ high-speed engraving mode

    It can simultaneously perform high-speed cutting, marking, engraving and surface modification operations, greatly improving processing efficiency and production flexibility.

    3. HPDFO™ high-power density focusing optical module

    The laser spot diameter is about 0.03mm, and the tolerance is only plus or minus 0.76mm. Absolutely high-precision and high-quality laser processing realizes the key requirements of precision manufacturing.

    4. Convenient operating host

    Designed for users, it allows you to easily control ULTRA. Whether it is a mobile phone, tablet, or computer of various systems, you can always use your creativity to turn your ideas into reality. .

    5. Wide software and system compatibility

    Supports multiple operating systems such as Windows, Mac, Linux, iOS, Android, etc., and can integrate mainstream drawing software such as CAD, CorelDRAW, Adobe® Illustrator® and most other software, bringing users a seamless experience.

    6. Air-cooled metal laser

    With stable light output, it can be disassembled and replaced in seconds, easy to maintain and safer, making work smoother.

    Universal Laser Systems ULTRA 雷射切割雕刻機

    Whether you are a R&D engineer, manufacturing expert or designer, ULS sincerely invites you to come and experience the precision laser technology and innovative applications brought by ULTRA. Our technical team will also provide one-on-one consultation to help you find the most suitable processing solution.

    Learn more about ULTRA products


    【Exhibition Information】

    Event Name: SEMICON Taiwan 2025

    Exhibition Time: September 10 (Wednesday) ~ September 12 (Friday) 2025

    Exhibition Location: Taipei Nangang Exhibition Center Hall 2, 1st Floor (No. 2, Jingmao 2nd Road, Nangang District, Taipei City)

    Booth Number: Q5737


  Products

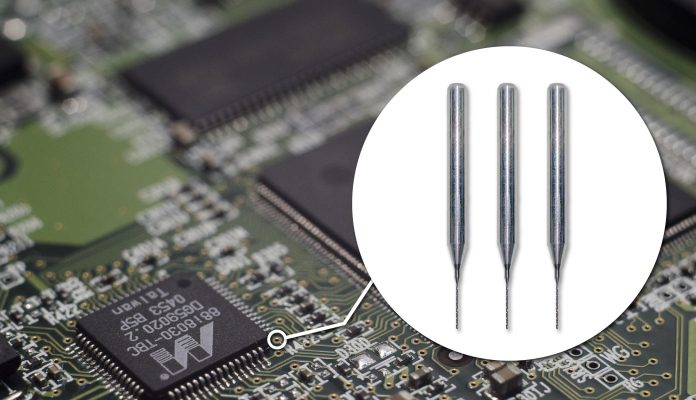

  • ATOM Micro Drill
    Saito Seisakusho Co., Ltd since 1934,with the mainstream products, "Drill" "End mill" and "Special cutter",.Our products are currently used in the semiconductor, auto, electronics, medical equipment, and mold manufacturing to name a few....

  • "ATOM Micro-Diameter Drill" Challenges Semiconductor Ultra-Micro Hole Processing Technology

    In response to the problem of micro-hole processing in chip packaging testing, ATOM has launched multiple solutions. The following two series are highly respected in the industry:

    ADR Standard Series Drill

    The minimum diameter of the ADR series can reach Ø 0.02mm, and the diameter tolerance is less than −0.005mm. It is suitable for micro-hole processing of materials such as steel, non-ferrous metals and resins. Yuewei Technology is the general agent of ATOM in Taiwan and China, with sufficient inventory and efficient delivery services.

    ADR-SV Standard Coated Series Drill

    The ADR-SV series drill has a wear-resistant FCS coating and is suitable for micro-hole processing of soft steel and high-hardness steel (HRC50). This series is designed with a wider chip groove and polished on the edge of the cutting edge, which significantly improves the chip removal smoothness and processing quality, and effectively extends the life of the drill.


    Advantages and features of "ATOM micro-diameter drill" in semiconductor manufacturing


    1. Extremely high precision
    ATOM micro-diameter drill can achieve extremely high drilling accuracy on materials such as aluminum alloy and engineering plastic (PEEK). This is crucial for socket test sockets, because ICs are getting smaller and smaller in the process of rapid technological development. How to achieve the hole position accuracy required by customers in the manufacture of socket test sockets requires not only the stability of machine tools, but also the support of tools.

    2. Excellent hole wall roughness and hole burr suppression
    The hole wall roughness and hole burr suppression of micro-diameter drilling are directly related to the quality of the hole. Whether it is a blind hole (Blind Hole) or a through hole (Through Hole), ATOM micro-diameter drill can achieve smooth, burr-free, flawless hole wall roughness and hole, which helps product yield and remove burrs after processing.

    3. Low loss and high production efficiency
    When drilling, high-speed machining machines cause the temperature of the drill tip to rise due to the high speed, which leads to drill wear. ATOM micro-diameter drills use high-quality all-tungsten steel raw materials as the base material to achieve ultra-long tool life, thereby saving the problem of equipment stagnation due to tool change.

    4. Full size and complete inventory
    As the exclusive agent of ATOM micro-diameter drills, Yuewei Technology imports a full range of Japanese size series inventory, from Φ0.03~Φ1.00, with a standard inventory of Φ0.01, and a diameter ratio of 5D/10D/15D/20D, uncoated ADR or coated ADR-SV are all in stock in Taiwan, meeting the needs of today's increasingly shorter delivery time, and achieving the convenience of 2-day delivery.

    5. Customizability
    ATOM micro-diameter drills can be customized according to the needs of specific applications. Whether you need a stage forming drill, a high-diameter drill, or a water-out drill, you can customize it according to the drawing.

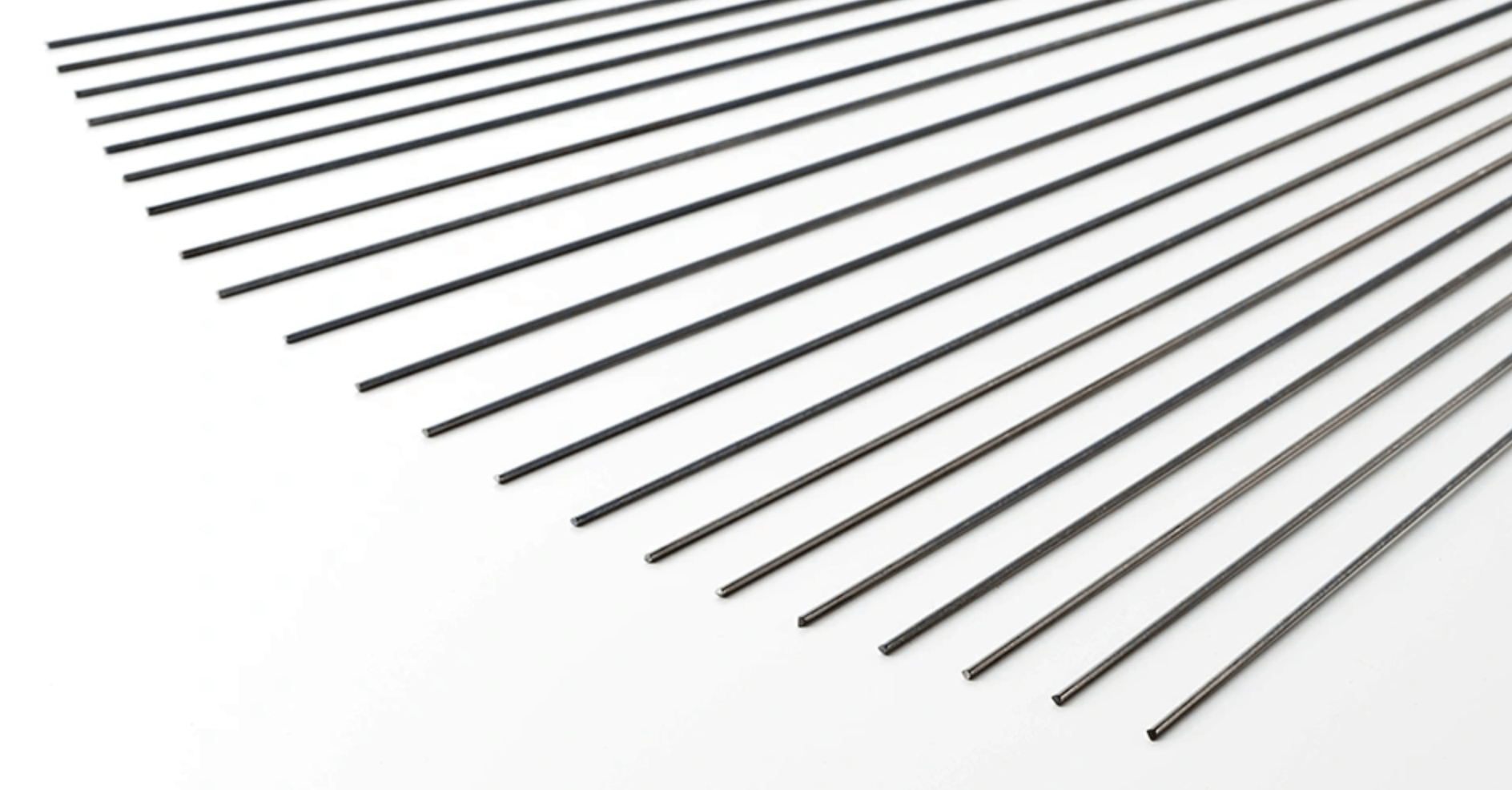

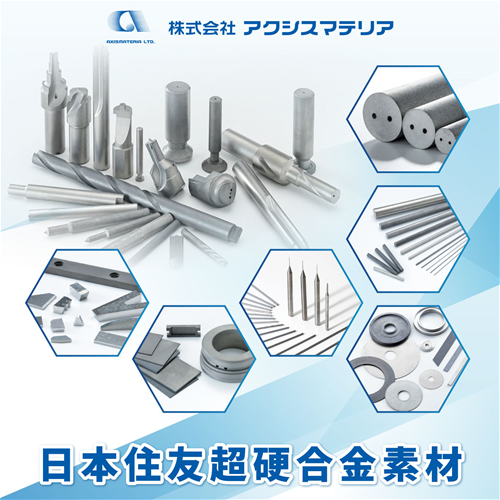

  • AXISMATERIA Japan Sumitomo Cemented Carbide Materi
    AXISMATERIA- Japanese Sumitomo cemented carbide brand, focuses on P.C.B drills, machine tools and tungsten steel raw materials for special shapes, which are widely used in the automotive, 3C, electronics, aviation and precision machining industries....

  • AXISMATERIA cemented carbide material - key material for semiconductor high-precision processing

    As semiconductor manufacturing processes move towards smaller, higher density and higher precision, the performance requirements for processing tools continue to increase. In this context, AXISMATERIA cemented carbide from the Japanese Sumitomo brand has become an indispensable high-performance material in key processes.

    Cemented carbide material: high hardness, wear resistance, heat resistance

    AXISMATERIA cemented carbide is made of tungsten carbide (WC) powder and cobalt (Co) as a binding metal, and is sintered at high temperature. Titanium carbide (TiC) or tantalum carbide (TaC) is added when necessary. It has an ultra-high hardness second only to diamond, and has both:

    🔹 Excellent wear resistance: suitable for high-frequency and high-speed processing environments

    🔹 High toughness: Reduce the risk of scrapping due to micro-vibration or fracture

    🔹 Heat resistance and corrosion resistance: Competent for high temperature and chemical environments commonly seen in semiconductor processes

    Application of cemented carbide

    Due to the above characteristics, it is used in cutting tool heads and molds on CNC lathes and machining centers. Compared with previous heat-treated steel tools, it has achieved a leap in speed and life, and its usage is increasing year by year.

    Products processed by cemented carbide tools are widely used in:

    Indispensable cutting tool materials for precision machining, automobiles, computers, smartphones and other industries.

    💡 Ideal materials for the semiconductor industry

    Facing the challenges of the precision machining industry, the high-performance tungsten steel materials provided by AXISMATERIA have significantly improved processing efficiency and stability compared to traditional high-carbon steel or high-speed steel, significantly improved tool life, and reduced the cost of frequent tool replacement. It is the industry's first choice for micro-machining tools.

  • Universal Laser Systems ULTRA
    The ULTRA series is very suitable for processing semiconductor chips. Whether it is cutting, marking, drilling, measuring, annealing, or removing processes, lasers are required to complete them....

  • NIVERSAL ULTRA Multi-wave Hybrid Technology Laser Machine × Semiconductor Industry Application

    As semiconductor manufacturing processes increasingly pursue high precision and low loss, the UNIVERSAL ULTRA laser cutting and engraving machine has become an indispensable tool in fine processing with its world's only technology for simultaneously irradiating three laser beams for processing.

    Technical Features: The world's first MultiWave Hybrid™ multi-wave hybrid technology

    The ULTRA series is equipped with patented MultiWave Hybrid™ technology. The system provides three laser wavelengths (10.6 μm, 9.3 μm, 1.06 μm), which allows any combination of laser wavelengths to be focused to the same focal point in the same focal plane and used simultaneously or sequentially.

    🔷 Wider laser material processing capabilities

    The dual laser function provides more than seventeen times the number of laser configurations as a single laser system. Each unique combination of laser power and wavelength provides users with additional options to configure the best laser processing solution for their application.

    ● Laser cutting of carbon fiber reinforced plastics: 1 x 75W 10.6µm laser and 1 x 50W 1.06µm laser

    ● Laser cutting of multi-material laminates: 1 x 50W 10.6µm laser and 1 x 50W 1.06µm laser

    ● Rapid prototyping for flexible circuit manufacturing: 1 x 75W 10.6µm laser and 1 x 30W 9.3µm laser and 1 x 50W 1.06µm laser

    ● Selective laser etching of thin film materials: 1 x 50W 10.6µm laser and 1 x 50W 1.06µm laser

    ● Laser cutting of silicon wafers: 1 x 75W 10.6µm laser and 1 x 50W 1.06µm laser

    🔷 Wide range of material adaptability

    使用10.6 µm CO2雷射器進行雷射切割的Delrin™

    Laser Cutting Delrin™ with a 10.6 µm CO 2 Laser

    使用9.3 µm CO2雷射器進行雷射切割、鑽孔和打標的Kapton™

    Kapton™ laser cutting, drilling and marking using 9.3 µm CO 2 lasers

    使用1.06 µm光纖雷射器進行打標的不銹鋼。

    Stainless steel marked with a 1.06 µm fiber laser

    🔷 Highest productivity and reduced costs

    MultiWave Hybrid™ technology allows users to select the ideal laser wavelength and power for the material they are processing. The laser can be installed in seconds without special training and tools. The ideal laser wavelength and power can be selected for each application, and there is no need to purchase a new laser system for each new application, thus reducing costs.

    🔷 Achieve higher precision

    Combined with High Power Density Focusing Optics (HPDFO)™, the laser precision is taken to a higher level - cutting accuracy of ±0.1 mm, engraving accuracy of up to 2000 DPI, and can process extremely small sizes and complex geometric structures to meet the needs of increasingly miniaturized semiconductor components.

    Why choose ULTRA for semiconductor processing?

    Short pulse, small heat impact:

    In wafer cutting, drilling and microstructure processing, short pulse lasers can significantly reduce the heat affected zone, avoid material deformation and micro cracks, and ensure stable quality of finished products.

    High-precision and non-contact processing:

    Compared with traditional mechanical processing, laser processing has no stress contact and is not prone to particle contamination. It is particularly suitable for processing thin film material laser etching, wafer marking, packaging drilling and other high-demand processes.

    Strong material compatibility:

    From thin film materials, silicon wafers, engineering plastics, engineering composite materials, etc., ULTRA can switch the corresponding wavelength according to the material to optimize the processing effect.

    🌍 UNIVERSAL's cross-industry application advantages are widely used in:

    ✅Electronic technology

    ✅Aerospace manufacturing

    ✅Automotive industry

    ✅Medical equipment

    ✅Battery manufacturing

    ✅Architectural models

    ✅Art creation

    From high-end industry to innovative design, ULTRA lasers are key tools for achieving efficient, precise and automated processing.

  • ASP-LASER Marking
    ASP-LASER Marking using top laser light sources, cutting-edge galvanometer and field lens technology, and undergoing rigorous dimming testing processes to ensure that each machine can reach its best state....

  • Ultra-high speed, high precision

    ● Galvanometer system

    Consists of two precise reflectors, it can quickly and accurately control the light path, which is the key to achieve high-speed and precise laser engraving on metal materials. The maximum speed can reach 10,000 mm/s.

    雷射打標機-振鏡系統

    ● F-Theta scanning lens (field lens)

    It can significantly expand the operating range of laser marking and provide a variety of working areas, including 110*110mm, 150*150mm, 200*200mm and other specifications. You can choose the lens that meets your processing needs.

    ASP雷射打標機-可選鏡片

    ● Two main laser light sources - fiber optic and ultraviolet

    Fiber optic laser is applicable to materials: including most metal materials.
    Ultraviolet laser is applicable to materials: including engineering plastics, metals, organic materials, etc.

    Choose the appropriate laser light source according to the material being processed to ensure that every marking and engraving is clear and sharp, with impeccable precision, reaching the highest standards in the industry; and has a long service life, simple daily maintenance, and is not easy to damage.

    High-quality mechanism design

    ✅ Laser head autofocus: laser red light positioning, fast and accurate.

    ✅ Safety protection window: equipped with linkage switch, once the protection window is opened, the machine will automatically stop working, effectively preventing laser leakage and protecting the safety of eyes.

    ✅ Air filtration: The dust collection design in the protection window prevents dust from scattering in the air.

    ✅ Double switch control: double confirmation start button, no need to worry about misoperation.

    ✅ Safety warning light: do not touch the marked work area before the warning light turns green.

    ✅ Emergency switch: in the event of an accident, operate the emergency button, the laser will stop working immediately to ensure your safety.

    360° rotation marking

    When performing laser marking and engraving of circular products, you can use a rotating fixture to allow you to handle complex or irregular shaped objects with ease.

    雷射打標機用旋轉夾具

  • SUMITOMO SUMIDIA Cutting Tools
    Sumitomo Electric's SUMIDIA Cutting Tools: PCD turning tools NPD10, DA1090 and small diameter boring tools DABX fully demonstrate its R&D strength and market value in the field of diamond-grade processing....

  • SUMIDIA™ BINDERLESS NPD10

    住友 SUMIDIA™ 無結合劑鑽石NPD10

    Suitable for ultra-high precision machining
    Using binder-free nano-polycrystalline diamond technology, it has ultra-high hardness and excellent wear resistance, and is designed for high-precision machining of cemented carbide and hard and brittle materials.

    Excellent tool life and machining efficiency
    Compared with traditional diamond tools, its stable dimensional accuracy and long tool life allow users to significantly reduce the number of tool changes, improve machining efficiency and reduce overall costs.

    SUMIDIA™ DA1090

    住友SUMIDIA™ 鑽石DA1090

    The secret weapon for rough machining of carbide and hard and brittle materials
    The coarse-grained polycrystalline diamond structure and the strong bonding between particles greatly improve the wear resistance and fracture resistance. Even under high-load rough machining conditions, it can maintain high sharpness and machining stability for a long time.

    Using SUMIDIA NF inserts
    Through optimized design and mass production technology, it can maintain the same performance as conventional models while achieving excellent cost-effectiveness.

    Application range (Carbide)
    Finishing/NPD10
    Roughing/DA1090

    住友鑽石系列應用範圍(硬質合金)


    SUMIDIA™ DABX Small Diameter Boring Bars

    住友SUMIDIA™ DABX無結合劑鑽石 小直徑鏜孔刀

    • It can handle small-diameter milling of ø3.0 and ø4.0 mm
    • Using high-hardness nano-polycrystalline diamond, it can achieve fine cutting of hard and brittle materials such as cemented carbide
    • Replacing EDM with cutting can increase processing efficiency by 2.5 times, reduce costs by 25%, and significantly improve surface roughness (Rz from 7.0μm to 1.3μm), which can be said to be a revolutionary solution to shorten the grinding process

    Processing consultation

    see more https://asun-photonics.com/product-category/sumitomo/
