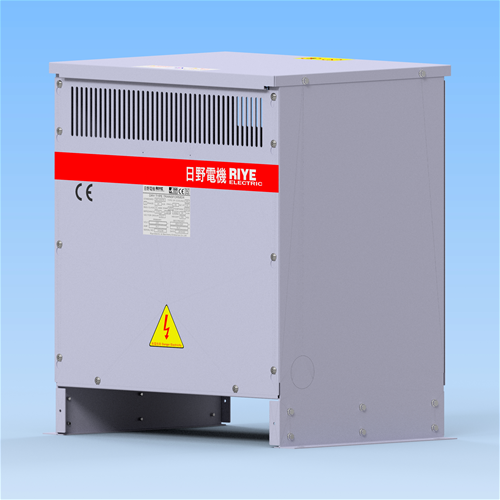

1. Dry-type Transformer

RIYE Dry-type Transformers (1kVA-3000kVA, up to 24kV) for semiconductor equipments. Features harmonic suppression & IP00-IP54 protection. Fully UL/CE certified, ensuring global compliance and stable power for precision manufacturing.

• Specifications: Capacity from 1kVA to 3000kVA+; Voltage ranges from low-voltage systems (<600V) to 24kV medium-voltage systems.
• Protection: Enclosure ratings from IP00 to IP54 are available to suit various installation environments, from integrated machine cabinets to sub-fab distribution.
• Semiconductor Focus: Designed for the specific needs of semiconductor manufacturing—compact size, low heat dissipation, and high reliability.
• Certifications: EVERY series is UL and CE certified, meeting strict international safety standards for export to the US and EU.

2. Cast Resin Transformer

RIYE Cast Resin Transformers are the ideal choice for indoor power distribution within semiconductor manufacturing facilities. Using vacuum-cast epoxy resin, these transformers provide maximum safety and reliability for modern Fabs.

• Specifications: Capacities from 30kVA up to 5,000kVA+; High voltage support up to 36kV.

• Security & Environment: Excellent fire resistance with self-extinguishing properties and no leakage risk, making them perfect for installation near cleanroom environments.

• Compliance: Full UL and CE certification across all series ensures global interoperability and compliance with international electrical codes.

• Semiconductor Advantage: Minimal maintenance and high overload capacity ensure the 24/7 continuous operation required by semiconductor production lines.

1. 乾式變壓器 (Dry-type Transformer)

專為半導體精密設備與機台整合設計

日野乾式變壓器專為半導體設備之電源設計，容量範圍 1kVA 至 3000kVA，電壓最高支援 24kV。具備優異的抗諧波能力與 IP00-IP54 多元防護等級。全系列通過 UL 與 CE 國際認證，符合國際設備外銷標準，能有效抑制電網干擾，為半導體製程提供極致穩定的電力品質。

• 技術規格： 容量 1kVA - 3000kVA+；電壓涵蓋 600V 以下低壓系統至 24kV 中壓系統。

• 國際認證： 全系列具備 UL 與 CE 認證，助力機台順利進駐全球半導體聚落。

• 應用場景： 適用於曝光機、蝕刻機、封裝設備之電力轉換，以及廠務系統的精密控制供電。

• 防護設計： 提供 IP00 開放式到 IP54 防塵防水外殼，並有抗震與壁掛式設計，完美適配無塵室與狹小機櫃空間。

2. 模鑄式變壓器 (Cast Resin Transformer)

半導體廠房室內配電的首選

日野模鑄式變壓器專為半導體廠房室內配電設計，提供 30kVA 至 5000kVA 以上大容量，支援最高 36kV 高壓轉換。具備高阻燃、防潮與低維護特性。全系列通過 UL 與 CE 認證，是半導體廠內無塵室鄰近配電區最安全、最環保的電力解決方案，確保廠區 24/7 持續運轉。

日野（RIYE）模鑄式變壓器採用真空環氧樹脂澆鑄技術，是半導體廠房（Fab）配電系統的安全核心。其優異的絕緣性能與結構強度，能應對半導體生產線高密度的電力負載。

• 規格範圍： 容量 30kVA - 5000kVA+；電壓等級最高支援至 36kV。

• 安全性： 具備自熄性（Self-extinguishing）防火特質，且無油污染風險，最適合安裝於半導體廠室內變電所。

• 認證： 全系列通過 UL 與 CE 雙認證，符合國際大型建廠規範。

• 節能趨勢： 非晶質鐵心技術 (Amorphous Alloy Core)，極低的空載損耗，協助半導體企業達成 ESG 與淨零排放目標。

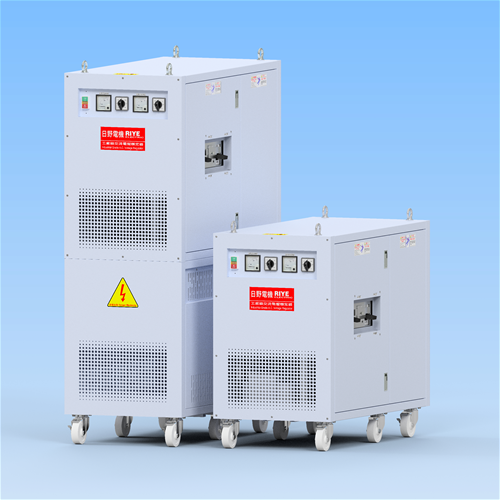

RIYE Electric provides industry-leading voltage regulation tailored for the semiconductor ecosystem, addressing the specific needs of both high-precision toolsets and large-scale facility infrastructure.

• Servo Motor Type AVR: Delivers ±1% high-accuracy continuous regulation. Its smooth adjustment and stable output make it ideal for semiconductor lithography tools and Automatic Test Equipment (ATE) where voltage consistency is critical for accuracy.

• Magnetic Saturation Type AVR: A robust static design with no moving parts, offering near-instant response times and galvanic isolation. It effectively filters electrical noise and suppresses surges, protecting sensitive sensors and logic controllers from grid disturbances.

• Induction Voltage Regulator (IVR): Engineered for massive power demands (up to 5,000kVA+). The brushless design ensures 20+ years of operational life with minimal maintenance, perfect for semiconductor fab's substations and heavy-duty HVAC systems.

【Key Advantages】

Global Compliance:  Series is fully UL and CE certified, supporting semiconductor equipment manufacturers in meeting international safety standards for export and facility setup.

Operational Resilience: Optimized for the complex electrical environments of modern Fabs, ensuring 24/7 uptime and maximizing production yield.

日野電機（RIYE）穩壓器深耕電力電子領域，針對半導體產業對電力品質趨近於零的容錯率。 提供三大穩壓技術提供從機台端到廠務端的全方位保護：

1. 伺服式穩壓器 (Servo Motor Type AVR)： 採用精密伺服馬達傳動技術，提供 ±1% 的極高輸出精確度。無段連續穩壓特性使其成為半導體檢測設備（ATE）、光學顯微儀器及自動化生產線的最佳電力基準。

2. 磁飽和穩壓器 (Magnetic Saturation Type AVR)： 採用靜態電磁感應原理，無機械零件損耗。其具備微秒級反應速度與天然的電性隔離功能，能有效濾除電網諧波與突波，是保護 PLC、精密感測器與控制電路的核心屏障。

3. 感應式穩壓器 (IVR)： 專為大容量（達 5,000kVA+）與高電壓需求設計。無碳刷設計使其具備極長的使用壽命與極低的維護率，特別適合半導體廠房的主配電系統、大型空氣處理機組（MAU）及冷卻系統。

【核心優勢】

• 國際認證保證： 變壓器與穩壓器每一個系列均具備 UL 與 CE 認證，滿足全球半導體廠嚴苛的安全規範。

• 半導體優化設計： 針對非線性負載進行優化，減少諧波干擾，保障精密製程良率。

RIYE Electric provides industry-leading Active Harmonic Filters (AHF) and Passive Harmonic Filters (PHF) tailored for the zero-tolerance power environments of semiconductor Fabs (IC, TFT-LCD). These solutions mitigate transformer thermal stress and control signal interference.

【Technical Highlight】

• Ultra AHF (Active Harmonic Filters): Powered by SiC MOSFETs achieving 99% peak efficiency and <5ms response. It targets 2nd-50th order harmonics with >97% compensation. Modular designs up to 1200A provide dynamic protection for lithography and CVD tools.
• Standard PHF (Passive Harmonic Filters): A robust series low-pass architecture supporting 3HP to 1200HP (2.2KW-900KW). Features efficiency >97% and requires no system analysis for installation. It effectively suppresses characteristic harmonics (5th, 7th) while remaining resonance-free with the power grid.

【Engineering & Procurement Compliance】

• Certifications: ALL series are UL and CE certified, ensuring global interoperability and compliance with IEEE-519 standards.
• Semiconductor Focus: Optimized for high-density loads, RIYE filters feature resonance suppression and voltage distortion correction. These systems safeguard sensitive sensors and timing circuits, securing 24/7 operational continuity and maximizing wafer yield.

【技術規格與優勢】

• 主動式濾波器 (Ultra AHF)：採用碳化矽（SiC）技術，具備 99% 超高效率與 <5ms 極速全反應時間。單機櫃容量支援至 1200A，能精準補償 2-50 次諧波，THDi 補償率 >97%。模組化設計支援動態負載，適配曝光機、CVD 等精密系統。
• 被動式濾波器 (PHF)：採低通濾波結構設計，容量廣達 3HP 至 1200HP。具備防止過激磁特性，安裝免系統分析且不與電力系統產生共振。能有效濾除 5th、7th 等低頻特徵諧波。全負載效率達 97% 以上，內部感應元件採用 H 級絕緣材料（180°C）。

【半導體工程合規】

• 全球認證：全系列產品通過 UL 與 CE 認證，並嚴格遵循 IEEE-519 國際管制標準。
• 廠務整合：針對半導體廠房負載特性優化，提供 THDv 修正與共振抑制技術，防止電力系統與補償設備發生危害性共振，確保 24/7 持續生產良率。

Voltage sags are the primary cause of downtime in semiconductor manufacturing. The RIYE Dynamic Voltage Restorer (DVR) is engineered to provide near-instantaneous voltage correction to safeguard high-value semiconductor processes.

• Specifications & Capacity:

  • Capacity Range: From 10kVA for standalone tools to over 5,000kVA for whole-line facility protection.

  • Voltage Support: Covers Low Voltage (220V/380V/480V) and Medium/High Voltage (11kV/22kV/36kV) systems.

  • Performance: Capable of compensating for deep sags (up to 50%) back to 90% of nominal voltage within milliseconds.

• Semiconductor-Grade Engineering:

  • Ultra-Fast Response: Utilizing high-speed DSP control, the DVR responds in < 2ms, protecting sensitive lithography, etching, and ion implantation tools from grid disturbances.

  • Durability: A battery-free design ensures low maintenance and extreme reliability for 24/7 Fab operations.

• Certifications:

  • EVERY series is SEMI-F47, CE and UL certified, ensuring compliance with the highest international safety and performance standards for global semiconductor Fabs.

• Industry Application: Specifically designed for the semiconductor ecosystem—protecting cleanroom equipment, OHT systems, and critical facility infrastructure. RIYE DVR minimizes the risk of scrapped wafers and costly equipment recalibration due to power quality issues.

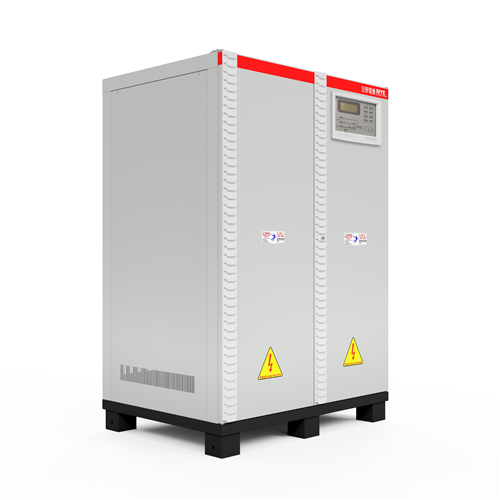

RIYE Electric addresses the semiconductor industry's stringent requirements for zero-interruption power with the ONL and DS Series Industrial UPS. These systems are specifically designed to safeguard critical Fab infrastructure and high-precision process tools:

• ONL Series: Utilizes advanced DSP digital control and 3-phase online double conversion technology. It offers superior harmonic suppression and voltage stability, ideal for Sub-fab power distribution protecting sensitive metrology and sensor components.

• DS Series: Engineered for high-power, heavy-load environments with maximum electrical isolation. Its rugged industrial-grade design ensures extreme reliability for 24/7 continuous operation within the main Fab power core.

【Key Specifications & Semiconductor Advantages】

• Capacity & Voltage: Wide range from 10kVA to over 800kVA, with customizable voltage settings (380V, 400V, 415V, 480V) to meet international fab standards.

• Global Compliance: EVERY series is fully UL and CE certified, meeting the rigorous safety and interoperability mandates of leading global foundries.

• Process Optimization: Tailored for non-linear loads common in semiconductor manufacturing. It ensures instantaneous response times during load switching in Lithography, Etching, and CVD processes.

日野電機（RIYE）針對半導體產業對電力品質趨近零容錯的高標需求，推出 ONL33 系列與 DS 系列工業級不斷電系統。此兩大系列專為高科技廠務基礎設施與精密製程設備（Tools）提供極致的電力備援與防護：

• ONL 系列： 採用先進的 DSP 數位控制與三相雙變換在線式（Online Double Conversion）技術，具備卓越的抗諧波能力與電壓穩定度，最適合安裝於 Sub-fab 供電系統，保護敏感的檢測與感測元件。

• DS 系列： 專為大功率、重負載環境研發，提供最高等級的電力隔離，有效隔離電網突波與雜訊干擾。其堅固的工業級設計可承受 24/7 高強度運作，是半導體主廠房配電系統的首選。

【核心技術規格與優勢】

• 容量與電壓： 提供 10kVA - 800kVA+ 廣泛容量，並可根據全球半導體廠電壓規格（如 380V/400V/415V/480V）進行客製開發。

• 國際認證： 全系列產品均通過 UL 與 CE 國際雙認證，滿足跨國半導體巨頭對設備安全性與全球合規性的嚴苛規範。

• 半導體專用： 特別針對非線性負載進行電力補償優化，確保在曝光機（Lithography）、乾蝕刻（Etching）及化學氣相沉積（CVD）等核心製程切換負載時，依然維持極速反應與穩定電壓。
