金石門企業股份有限公司

西屯區,  台中市
Taiwan
https://www.asmith.com.tw/
  • Booth: S7006

金石門【鐵匠】專精於工業五金，擁有幾百種商品、幾千種規格，並提供CAD、3D檔下載使用，堅持MIT製造，結構緊密又扎實。

Overview

鐵匠創新推出高效新品，精密裝備與工業安全

創新產品打造更精準、更耐用的五金解決方案

金石門企業推出品牌：鐵匠牌ASMITH，深耕工業五金研發與製造40多年，致力於提供高品質、高耐用度且MIT台灣製造的機構件，產品拱廊鍊、門鎖、防水膠條、搭扣、腳座、支架、支撐器、腳輪、數位扭力扳手等，廣泛認知機械、運輸工具、交通運輸及其他工業櫃機領域。金石門秉持嚴謹的ISO 9001國際品質認證標準，並擁有專利技術，確保客戶獲得最可靠的解決方案。

不銹鋼拉壓門鎖

　　市面上許多產品在選擇長期使用後，常因材料或設計缺陷而產生問題，不當影響設備運作安全與維護成本。金石門企業積極研發，針對顧客需求推出六款全新產品，為市場帶來更有效率可靠的選擇。

　　首先為BS-12不銹鋼拉壓門鎖，取代「紅點鎖」，提升設備安全，如變電箱、機櫃等室外設備經常遭受風雨、日曬、高溫與腐蝕環境的考驗，而傳統「紅點鋅合金門鎖」由於材料特性，長期使用後容易脆裂、生鏽、彈簧異位或故障，導致門鎖無法安全閉合，進門設備無法安全閉合。

　　針對這些問題，而快速推出BS-12拉不銹鋼壓門鎖，採用高強度不銹鋼床墊製造，具有抗腐蝕、不脆裂、高耐候性的優勢，適合長期戶外使用。更重要的解決辦法是，尺寸與方便變電箱標準門鎖相同，可直接替換“紅點鎖”，所需安裝修改孔位，安裝。其中，專利『可調式檔片設計』讓這款門鎖適用於不同的箱體，進一步提升產品的通用性與實用性。

持續創新滿足市場需求

　　除BS-12外，鐵匠牌也同步研發生產創新五金零件，包括CS-3610直角搭扣、AS-21微扭轉不銹鋼搭扣、CS-5230可調式搭扣、藍牙數位扭力扳手及藍牙機電壓扭力扳手。

  • CS-3610 ：其實一般搭扣的受力方向，在安裝上給您更多的選擇。
  • AS-21 ：採用不鏽鋼沖壓並於軸心增加了微阻尼功能，適用於輕型門板開啟後定位使用。
  • CS-5230 ：極高強度的調整搭扣，外觀圓潤不傷手，且具有自鎖扣功能可防止折疊彈開。
  • 藍牙數位扭力扳手：精準反應當下扭力值並支援APP資料上傳，搭配聲光震動提醒與記錄功能。
  • 機電扭力扳手：結合傳統手感的強力跳脫與資料化傳輸需求，有效提升作業一致性，適用於自行車與精密組裝產線。

全球工業五金首選

金石門始終堅持自主研發、精密製造和嚴格品質管控，持續為全球客戶提供高性價比、高耐用度的工業五金產品。目前，我們的產品已行銷全球，並獲得了多家機械設備、電子設備、車輛產業指定採用。未來，我們將持續投入技術研發，為市場提供更創新、更穩定的工業五金解決方案，推動企業提升生產效率與設備安全。

  Press Releases

  • ASMITH, the industrial hardware brand of Asmith Manufacturing Company, brings 40+ years of expertise in industrial hardware R&D and manufacturing. Made in Taiwan, Asmith delivers durable, high-quality components—hinges, door latches, draw latches, seals, handles, casters, and torque wrenches—widely used in machinery, electronic enclosures, transportation, and industrial equipment. All products meet ISO 9001 standards and feature patented technologies for reliability.

    BS-12 Push-to-Close Latches

    To enhance outdoor equipment safety, Asmith introduces the BS-12 Push-to-Close Latches, a direct replacement forButton Panel Lock Compatible. Conventional locks often fail under corrosion, brittleness, or spring fatigue.

    The BS-12 is crafted from high-strength stamped stainless steel, providing excellent corrosion and weather resistance. Standard mounting dimensions allow quick replacement without modification, while a patented adjustable pawl ensures compatibility with different door thicknesses—ideal for power distribution boxes and control cabinets.

    New Innovations for Evolving Market Needs

    Asmith also introduces multiple new products:

    • AS-21 Micro Torque Butt Hinges – Stamped stainless steel with micro-damping for smooth door positioning
    • CS-3610 Corner Snap Lock – Offers more installation options, quick-locking, vibration-resistant
    • CS-52 Adjustable Draw Latches – Ergonomic, self-locking, vibration-resistant
    • Bluetooth Mechanical Torque Wrench with Digital Readout – Interchangeable-head and standard-head options. Strong tactile torque release prevents torque from exceeding the preset value. Spring-free design with digital torque management. REACH and RoHS compliant.

    Trusted Global Partner

    With in-house R&D, precision manufacturing, and strict quality control, Asmith delivers reliable, cost-effective industrial hardware, supporting improved equipment safety and production efficiency worldwide.

  Products

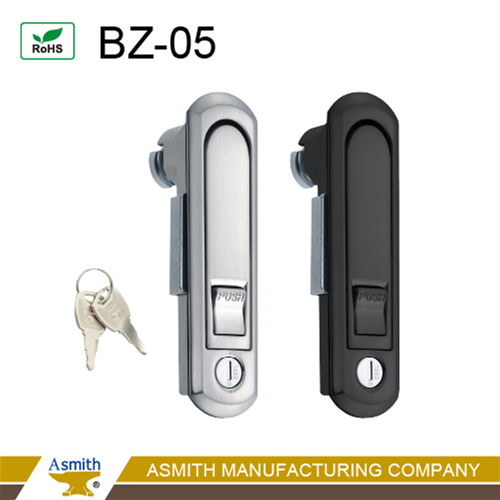

  • BZ-05 Swinghandle Multi-point Latching Systems
    BZ-05 multi-point compression latch with swing handle, IP66 dustproof & waterproof. Features patented safety push-button, smooth 3mm compression action, and rod system for stable, non-shaking doors. Key lockable, L/R opening....

    •  Asmith : https://www.asmith.com.tw/en/products/Door_Latch/Multi-point_Latching_System/BZ-05

     Youtube : https://youtu.be/fSuV_nfmVyE?si=uI02WuQ80HsI_tye

    BZ-05 Multi-point Compression Latch, Swing Handle｜Dust-resistant and waterproof IP66. In accordance with RoHS.
    ★Patent-Safety design: Push the button and the hand will rise with the lever to prevent accident.
    When the lever goes up, the pawl moves backwards 3mm, the handle work smoothly. When the lever is pressed down, the pawl push forwards 3mm to enhance the panel and the cabinet compressed.
    Ｗith heaven and earth bolt connecting rod, the door frame will not shake.The lock can be opened by key.
    Left and Right opening. Position stopper install instruction :
    　(1)Choose left-opening or right-opening door to determine the placement method of the stopper.
    　(2)Install the position stopper while the lever is lifted but not rotated.
    　(3)When the lever is rotated, the position stopper can restrict the rotation angle of the lever.
    Customize: Optional custom color. (MOQ: 1000pcs)
    ➤Material-Body & Lever : Die-cast Zinc, Nickel polish or Black coated.

    ★The latch is without pawl, rod latch system, waterproof sealing strip, and rod holder. Please select in the "Alternative or choosable accessories" below to achieve the best waterproof effect.

  • BZ-05 Compression Swinghandle Latch (Lift-and-Turn
    Designed for semiconductor enclosures, the BZ-05 features a 3mm compression pawl achieving IP66 dust/water resistance. Its patented dual-safety lift-and-turn mechanism requires button-push and lever-rotation to prevent accidental unlatching....

    • Multi-point Compression Latch, Swing Handle｜Dust-resistant and waterproof (IP66). In accordance with RoHS.
    ★Patent-Safety design: Push the button and the hand will rise with the lever to prevent accident.
    When the lever goes up, the pawl moves backwards 3mm, the handle work smoothly. When the lever is pressed down, the pawl push forwards 3mm to enhance the panel and the cabinet compressed.
    Ｗith heaven and earth bolt connecting rod, the door frame will not shake.The lock can be opened by key.
    Left and Right opening. Position stopper install instruction :
    (1)Choose left-opening or right-opening door to determine the placement method of the stopper.
    (2)Install the position stopper while the lever is lifted but not rotated.
    (3)When the lever is rotated, the position stopper can restrict the rotation angle of the lever.
    Customize: Optional custom color. (MOQ: 1000pcs)
    ➤Material-Body & Lever : Die-cast Zinc, Nickel polish or Black coated.

    ★The latch is without pawl, rod latch system, waterproof sealing strip, and rod holder. Please select in the "Alternative or choosable accessories" below to achieve the best waterproof effect.

    WEB: https://www.asmith.com.tw/en/products/Door_Latch/Compression_Lift-and-Turn/BZ-05
    Search: asmith BZ-05

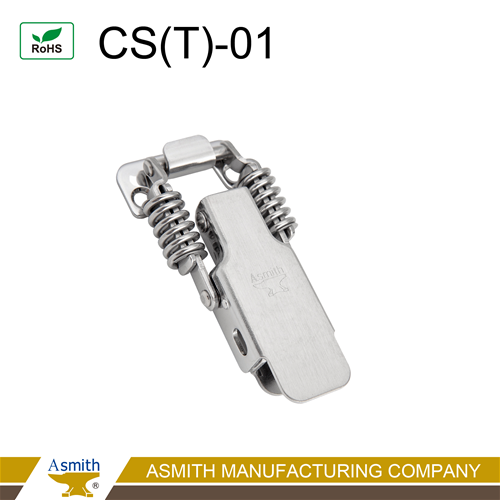

  • CS(T)-01 series (Spring) Draw Latches (Spring Load
    CS(T)-01 Anti-Vibration Latch

    - Load: 38-50 kgf.
    -Padlockable design (brass lock excluded) secures device.
    - Deburred smooth edges ensure safe handling.
    - RoHS compliant. Perfect for high-vibe industrial R&D specs....

    • Spring Loaded Toggle Latch, Draw Latch｜The proposed load of 38~50 kgf.
    Both sides spring design with compression function.
    Standard Lock-hole can using with lock. Suitable for vibration equipment.
    Smooth surface, excellent brushed finish appearance, in accordance with RoHS.
    The draw latch is including the horizontal keeper, if you need another type keeper then you can reference the below "Accessories".
    ➤Material: SUS304(Stainless steel)-vibration ground and brushed finish, SPCC(cold-rolled steel)-zinc plated

    WEB: https://www.asmith.com.tw/en/products/Draw_Latch/Spring/CS-01
    Search: asmith CS-01

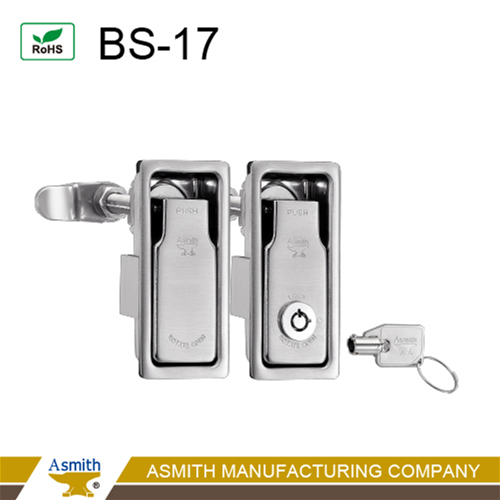

  • BS-17 series Compression Locks / Latches ( Lift-an
    Tired of design changes? 1 latch, endless uses.
    - Patented 4-way indexing, adjustable pawl for dual-handing & tension.
    - 1-screw fast install.
    - 3mm compression achieves IP66.
    - Multi-pawl options for various door thickness....

    • Dust-resistant, waterproof (IP66), resistance to heat and corrosion.
    ★Patent(Pawl): Pawl is fixed by 4 positioning points and the grooved shaft-bolt, easy for assembly and adjustment. Need only to slide the pawl through the shaft-groove to the correct position, more stable and accurate. Left, right and top opening.
    ★ Patent(Cylinder): Locking design structure capable of locking in confined spaces.
    The pawl moved forward and reversed vertically 3mm while the compression latch is opened and closed.
    For shallow boxes, thin door panels or any shallow inside space box.
    ➤Material-Body and lever: SUS304(stainless steel)-vibration ground and brushed finish in front. In accordance with RoHS.
    ➤Material-Shaft, pawl and mounting bracket: SUS304(stainless steel).

    WEB: https://www.asmith.com.tw/en/products/Door_Latch/Compression_Lift-and-Turn/BS-171
    Search: asmith BS-171

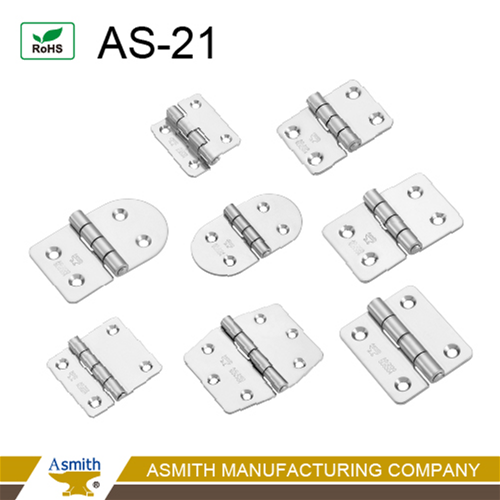

  • AS-21 series (Micro Torque)
    SUS304 Position Control Hinge
    - Constant torque damping holds doors at any angle.
    - Multi-size options optimized for small enclosures.
    - Countersunk holes for a flat, clean surface.
    - RoHS compliant. Ideal for industrial R&D cabinet specs....

    • Names: Stainless Steel Micro Torque Friction Butt Hinge / Stepless Self-Positioning Hinge
    ．Stepless Positioning Technology: Features a micro torque friction design that allows the door panel to stay at any angle without the need for additional support stays or gas springs.
    ．High-Quality SUS304: Premium stainless steel body with a vibratory polished finish, providing excellent rust and corrosion resistance.
    ．Flush & Sleek Design: Features countersunk holes for a flush surface installation after mounting, preventing bumps and hazards.
    ．Green Environmental Standard: The entire manufacturing process fully complies with RoHS certification.
    ➤ Material: SUS304 Stainless Steel (Vibratory Polished Finish).

    This product series has been widely selected by customers across multiple industries for the following applications:
    ⚡ Technology & ICT: Server chassis, Industrial PC (IPC) enclosures.
    ⚡ Automation & Power Distribution: Automated machinery hoods/covers, electrical control boxes.
    ⚡ Precision Instruments: Instrument lids/top covers, acrylic observation windows.

    WEB: https://www.asmith.com.tw/en/products/Hinge/Butt/AS-21
    Search: asmith AS-21

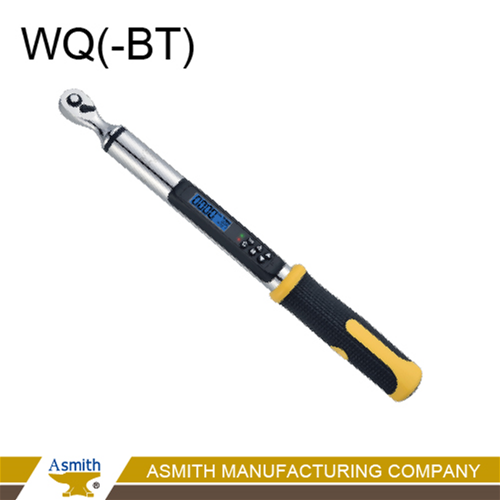

  • WQ(-BT) Digital Torque Wrenches (Bluetooth)
    Go paperless; no more lost manual torque logs.
    - Track data history via dedicated App.
    - ±1% CW precision control & unit conversion.
    - Buzzer, LED & vibration alerts.
    - Upgrades traditional mechanical wrenches: no zeroing, zero spring fatigue....

    • ★ Access historical data at any time through Bluetooth connection to the mobile phone.(View up to 1000 records)
    ★ Connect via Type-C to save data on the computer.
    ★ Free download of the app (iOS、Android ), and computer software.
    ★ Lock the wrench via the app, preventing accidental pressing by users..
    ★ The app allows selecting auto-shutdown time (1 min, 2 min, 5 min, 10 min).

    1. Use the piezoelectric effect converted into accurately torque value.
    2. Two modes : F(Track) / K(Peak).
    3. Warning function : Beep, LED indicator, Vibration function.
    4. Four torque units are available : N-m, kg-cm, in-lb, ft-lb
    5. Can store 30 memory setting values.
    6. Recording usage frequency and the historical maximum torque.
    ※※ Suggested accessories: Socket and Bit Socket. ※※
    ➤Content : Provide storage steel box x1, Certificate of calibration report (Using ISO specification) x1, Operator’s menu(Bilingual) x1, USB insert(Type C)

    WEB: https://www.asmith.com.tw/en/products/Wrench/Bluetooth/WQ-BT
    Search: asmith WQ-BT
