Test Research, Inc. (TRI)

San Jose,  CA
United States
http://www.tri.com.tw
  • Booth: 5581

Your Test and Inspection Partner

Overview

Test Research, Inc. (TRI) is the leading test and inspection systems provider for the electronics manufacturing industry. TRI solutions range from Optical Inspection, Metrology measurements, to Board Testing. TRI’s AI-powered Inspection and Metrology solutions for Advanced WLP/PLP and SEMI Back-End Package processes.

TRI's Inspection and Metrology Applications include: Chiplet & Chip-on-Wafer (CoW), System-in-Package (SiP), Advanced WLP, TSV Metrology, μBump, Cu Pillar, C4 bumps (~100 μm Ø), Surface Topology, Profiling, Thin Film Thickness, Patterned Wafer, Inner Crack / Chipping, After Sawing Defects, Die Underfill, Glue, Epoxy & Flux, TGV X-Ray Inspection, Wafer Bumping and Die / Wire Bonding (wire diameters of up to 15 μm (0.6 mil)).

For more information about TRI's SEMI Solutions, please visit the link below,
https://www.tri.com.tw/en/product/product-85-2.html


  Press Releases

  • SEMICON Taiwan 2025[August 20, 2025 – San Jose, CA] Test Research, Inc. (TRI), the leading test and inspection systems provider for the electronics manufacturing industry, will join SEMICON West held at Phoenix Convention Center, Phoenix, Arizona from October 7 - 9, 2025.

    Visit TRI's Booth No. 5581 to learn more about the latest Advanced WLP/PLP and SEMI Back-End Package Inspection and metrology solutions. TRI's Inspection and Metrology Applications include: Chiplet & Chip-on-Wafer (CoW), System-in-Package (SiP), Advanced WLP, TSV Metrology,μBump, Cu Pillar, Surface Topology, Profiling, Thin Film Thickness, Patterned Wafer, Inner Crack / Chipping, After Sawing Defects, Die Underfill, Glue, Epoxy & Flux, Wafer Bumping and Die / Wire Bonding.

    Wafer AVI TSV Metrology Chiplet Metrology SWIR AI Inner Crack Wire-Die Bonding
    Wafer AVI TSV Metrology Chiplet Metrology SWIR+AI Wire/Die
    TRI will showcase the Wafer Inspection and metrology Platform, TR7950Q SII, capable of wafer macroscopic 3D inspection and micro measurement metrology. The TR7950Q SII has applications in Advanced WLP, Wafer Frame, Patterned Wafer, Wafer Bumping, WLCSP, Through Silicon Via (TSV), thin film, and more.

    TRI will also exhibit the back-end inspection solutions, the TR7007Q SII-S for C4 bumps (~100 μm Ø), Mini-LED, and 008004 paste inspection applications, and the 3D SEMI AOI TR7700Q SII-S with AI-Powered 3D Inspection that can inspect die, wire diameters of up to 15 μm (0.6 mil), SiP, underfill, bumps, and more. The lineup will also include an X-ray Inspection Demo Station. TRI's SEMI AXI solutions can inspect C4 bumps and Cu pillars.

    Visit TRI's Booth No. 5581 at SEMICON West 2025 to explore TRI's SEMI solutions.

    ###
    About TRI


    Test Research, Inc. (TRI) offers the most robust product portfolio in the industry for Automatic Test and Inspection solutions. TRI provides the most cost-effective solutions to meet a comprehensive range of manufacturing Test and Inspection requirements.Learn more at http://www.tri.com.tw. For sales and service information, please write to us at [email protected] or call +1 (408) 567-9898.

  Products

  • Wafer Inspection and Metrology - TR7950Q SII
    The TR7950Q SII can perform Wafer Macroscopic 3D Inspection and micro measurement metrology. The TR7950Q SII can inspect Advanced WLP, Wafer Frame, Patterned Wafer, Wafer Bumping, WLCSP, through-silicon via (TSV), and more. ...

  • Wafer Inspection and Metrology - TR7950Q SII
    The TR7950Q SII can perform Wafer Macroscopic 3D Inspection and micro measurement metrology. The TR7950Q SII can inspect Advanced WLP, Wafer Frame, Patterned Wafer, Wafer Bumping, WLCSP, through-silicon via (TSV), and more.

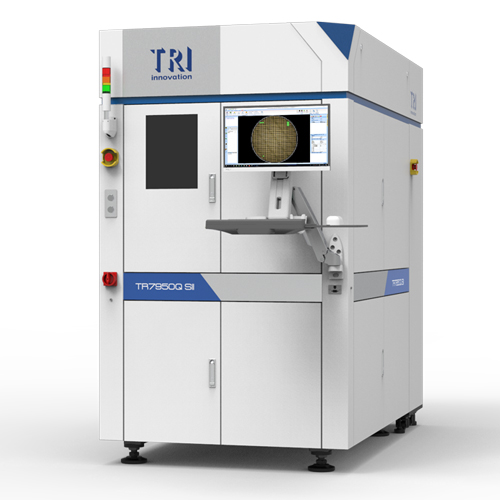

    TR7950Q SII - Wafer Inspection and Metrology Platform

    Features:

    • High Resolution 1.2 μm Wafer Macroscopic 2D / 3D Inspection
    • Precise Micro Measurements with Metrology Capabilities
    • Ultra High-Speed TSV Metrology
    • Inspection for: Advanced WLP, Wafer Frame, Patterned Wafer, Wafer Bumping, WLCSP, through-silicon via (TSV).
    • TSV measurement capabilities: TSV depth, trench depth, oxide, nitride, PR, and PI film thickness.
    • Cleanroom: Class 100 - ISO 5 Clean Room
  • 3D SEMI SPI - TR7007Q SII-S
    High-accuracy 3D SEMI SPI for precise solder measurements, supporting applications such as Mini-LED, C4 bumps (~100 μm Ø), and 008004 paste inspection ...

  • Features:

    • 3.5 μm High-Resolution 3D SEMI Back-end, Mini-LED and 008004 solder inspection
    • Advanced Wide-spectrum light for Enhanced Contrast and Detection Rate
    • Improved Accuracy and Stability for Precise Solder Measurements
    • High Precision Inspection for Multiple Applications
    • Industry 4.0 Ready Platform
    • Ensures clean operation with HEPA Filter*

    For more information visit: https://www.tri.com.tw/en/product/product_detail-70-2-1799.html
