SVCS Process Innovation s.r.o.

Features and Benefits

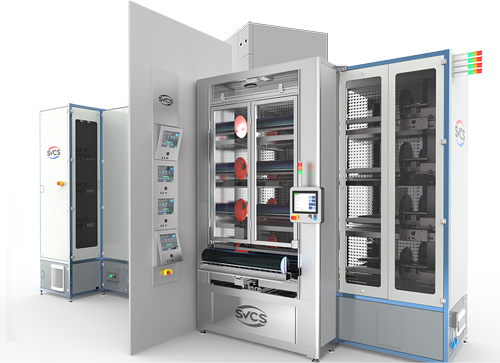

• Maintenance friendly mechanical design
• State of the art modular control system, in-house designed and manufactured
• 10,4“ high-res touchscreen for operator interface
• Up to 4 stacked quartz or SiC tube reactor chambers for various procesess
• No thermal interference between different tubes
• Contactless fully automated boat-in-tube loading both cantilever or softlanding configurations
• Independent tube level control system
• HW safety interlocks independent on main CPU
• HEPA or ULPA filtres installed in load station
• Boat elevator and wafer handling automation
• UHP face seal fittings and welds for connections
• UHP orbital weldings made in 100/10 Cleanroom

Atmospheric Processes

• Diffusion (drive-in) high temperature procesess
• Doping from solid, liquid and gaseous dopant sources e.g.: BBr3, B2H6, POCL3, PH3, BN
• Various thermal processing e.g. annealing, sintering
• Pyrogenic Wet Oxide with External Burning System
• Wet Oxide with ultra pure steamer
• Dry Oxide

LPCVD Processes

• Silicon nitride
• Low temperature oxide (LTO)
• High temperature oxide (HTO)
• TEOS oxide
• Polysilicon, with tilt/flat temperature profile
• Doped polysilicon
• Oxynitride

PECVD Processes

• Silicon nitride (incl. anti-reflective SiN solar cell coating)
• Silicon oxide
• Oxinitride

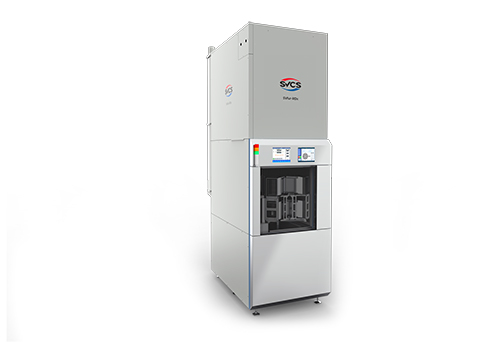

SVCS Vertical Thermal Reactor (VTR) is designed for all standard atmospheric and low pressure CVD processes. VTR is available with several lengths of flat zone for both mass production and R&D application. The single tube set-up with dual boat logistics is optimized for minimum down time as well as  low maintenance costs.

Features and Benefits

• Automatic wafer handling system for loading wafers from SMIF or FOUP closed pods
• Special automatic loading system which allows loading wafers from open cassettes and provides an exceptionally small footprint
• Quartz or SiC boats can be used
• Highly tailored state of the art modular control system, in house designed and manufactured
• 10,4“ high-res touchscreen for operator interface

Atmospheric Processes

• Diffusion (drive-in) high temperature procesess
• Doping from solid, liquid and gaseous dopant sources e.g.: BBr3, B2H6, POCL3, PH3, BN
• Various thermal processing e.g. annealing, sintering
• Pyrogenic Wet Oxide with External Burning System
• Dry Oxide

LPCVD Processes

• Silicon nitride / low stress nitride
• Low temperature oxide (LTO)
• High temperature oxide (HTO)
• TEOS oxide
• Polysilicon, with tilt/flat temperature profile
• Doped polysilicon
• Oxynitride

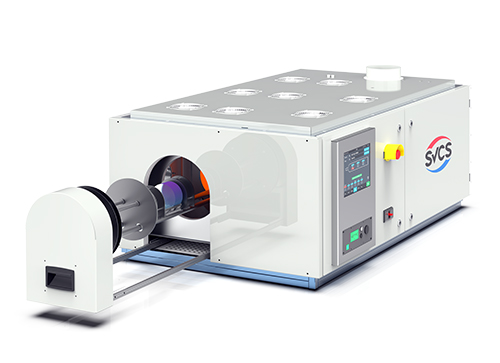

The SVCS Tabletop Furnace system provides a semiconductor grade quality tool for universities, R&D laboratories and pilot fabs. This system can be used for wide range of processes due to outstanding flexibility and amount of optional modules available to meet special and often unique requirements of every customer.

Atmospheric Processes

• Diffusion (drive-in) high temperature procesess
• Doping from solid, liquid and gaseous dopant sources e.g.: BBr3, B2H6, POCL3, PH3, BN
• Various thermal processing e.g. annealing, sintering
• Pyrogenic Wet Oxide with External Burning System
• Wet Oxide with ultra pure steamer
• Dry Oxide

LPCVD Processes

• Silicon nitride
• Low temperature oxide (LTO)
• High temperature oxide (HTO)
• TEOS oxide
• Polysilicon, with tilt/flat temperature profile
• Doped polysilicon
• Oxynitride

PECVD Processes

• Silicon nitride (incl. anti-reflective SiN solar cell coating)
• Silicon oxide
• Oxinitride

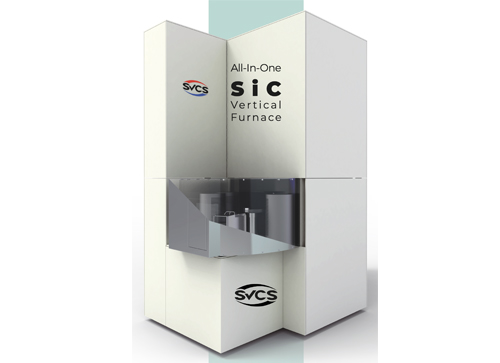

| Temperatures up to 2000°C

| Hermetically sealed loading area

| Controlled atmoshpehe loadlock chamber

| Vacuum processes

| Touchscreen operator interface placed on cleanroom wall

| Automatic wafer handling system for loading wafers

| Unique temp. measurement by spike and profiling TC combine with pyrometry

| 7 independent water cooling circuits with the flow rate and temp. monitoring

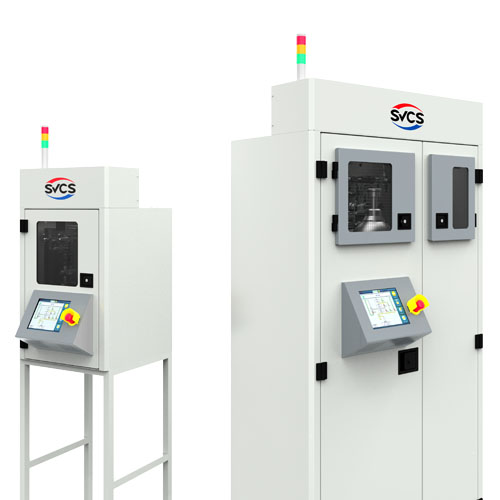

SVCS takes advantage of many years of experience in manufacturing tailored gas panels and gas systems for various wafer production technologies, as well as various R&D customized panels. SV-DELI gas delivery system family offers a high level of technical design, components from the world leaders and a fully automatic control system with independent safety functions.
